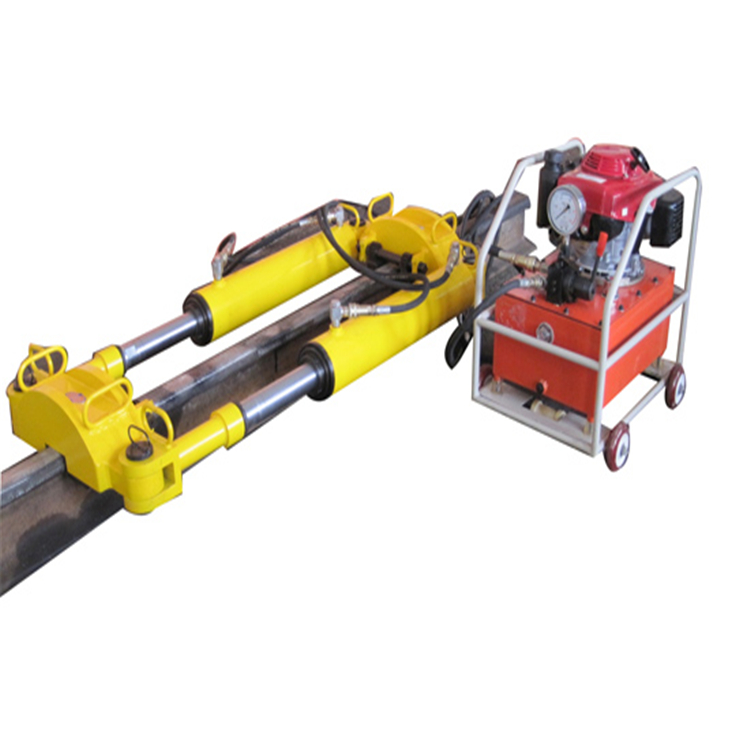

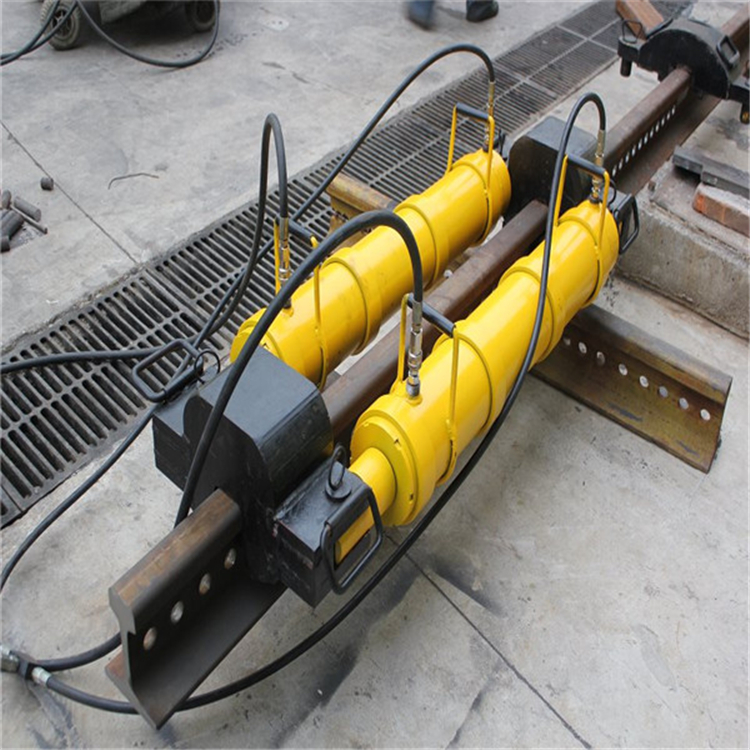

It’s suitable for rail 50kg/m,60kg/m and 75kg/m type rail stress relief and seamless long rail relaying. While operating in the field at a certain temperature range being lower than the rail locking temperature, by employing this machine, the length of a rail with zero-stress can be forced to stretch to a length at locking temperature, then re-lock the rail.
By locking the rail waist, it will not hurt the rail head surface, one machine with a variety of configuration meets the field work in different ways, it possesses features of unique design, light weight, simple & convenient manipulation and powerful rail pulling force.
Technical Parameter
1, the maximum rated working pressure 57Mpa
2, the maximum pulling force 2 × 300kN
3, the maximum working cylinder stroke 500 / 750mm
4, two rod center distance 50kg / m, 60kg / m rail with 360mm
370mm for 75kg / m rail
5, lock the way inclined rail clamp rail waist
6, cylinder pressure: 50Mpa
Maximum thrust rail force: 450KN
Rail maximum hydraulic pressure 24 Mpa
7, the unit quality 340kg
8, hydraulic pump station quality 85kg (excluding tubing)
YLS--600 Rail Tensor With Pump,Hydraulic Rail Tensor,Internal Combustion Rail Tensor
YLS--600 Rail Tensor With Pump,Hydraulic Rail Tensor,Internal Combustion Rail Tensor
YLS--600 Rail Tensor With Pump,Hydraulic Rail Tensor,Internal Combustion Rail Tensor
YLS--600 Rail Tensor With Pump,Hydraulic Rail Tensor,Internal Combustion Rail Tensor
YLS--600 Rail Tensor With Pump,Hydraulic Rail Tensor,Internal Combustion Rail Tensor
YLS--600 Rail Tensor With Pump,Hydraulic Rail Tensor,Internal Combustion Rail Tensor
