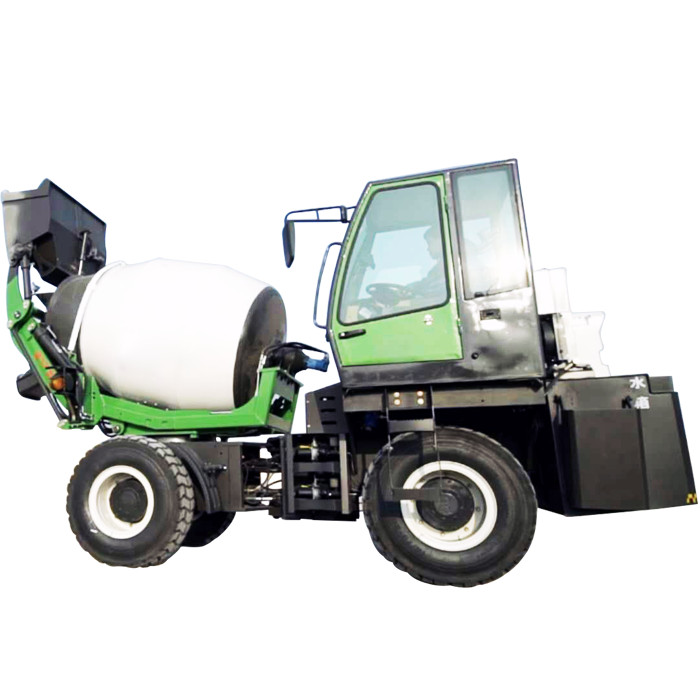

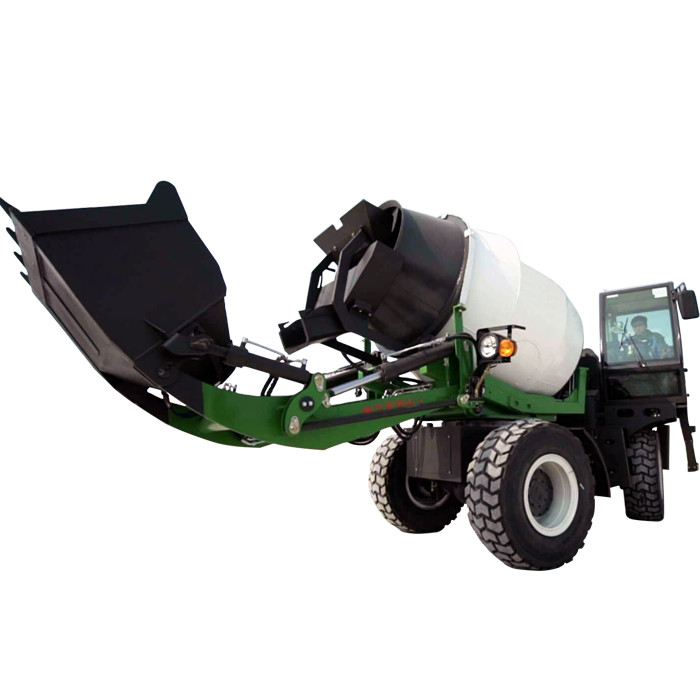

1.2m3 automatic feeding self loading concrete mixer truck

Click on the image to view the original image

Product：	views：21.2m3 automatic feeding self loading concrete mixer truck
Branch：	HEGNWANG
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-10-16 20:23

Product Details

Overview

Quick Details

Power(W):: 55KW

Weight:: 5000kgs, 5000kgs

Condition:: New

Place of Origin:: Shandong, China

Brand Name:: HEGNWANG

Model Number:: HW1.2

Dimension(L*W*H):: 6100*1850*3000

Certification:: ISO CE CCC

Name:: Auto concrete mixer truck

Actual mixing capacity:: 1.2m3

Driving type:: 4X4

Climbing capacity:: 26%

Engine:: CF or Optional

Color:: White/yellow

Rated Power:: 55kw 78kw

Max. loading capacity:: 2800kgs

Slump of concrete:: 70-260mm

After-sales Service Provided:: Engineers available to service machinery overseas

Warranty:: 12 Months

Supply Ability

Supply Ability:: 100 Set/Sets per Week

Packaging & Delivery

Packaging Details: In nude
1.2m3 automatic feeding self loading concrete mixer truck

Port: Qingdao, China

Lead Time:: 5days after receive the payment

Product Description

1.2m3 automatic feeding self loading concrete mixer truck

Combine concrete truck mixer with concrete mixer, self loading concrete mixer can automatic feeding, metering, and mixing to discharge, and more, it can realize the transportation and site construction operations, which greatly improves the work efficiency, reduce production cost and time.

Advantage:

.1. Italy leading design, automatic feeding mixing system

.2. Simple and convenient operation

.3. High efficiency output, save time and labor, save cost

.4. The perfect combination of mixing truck and loading car.

Main Technical Parameters for auto concrete mixer truck
Specification	Unit	Parameter
Actual stirring capacity	m3	1.2m3
Rotary drum capacity	m3	1.4m3
degree of bias	°	16
Rotation speed	r/min	0-14
Direction of rotation		Feed: Clockwise Outfeed: Counterclockwise
Mixer blade		Two spiral blades and four auxiliary blades
Concrete slump	mm	70-260
Hydraulic power Transimission System
pump model		CBGV-4025
Hydraulic Motor model		BMSS-250
Reducer speed ratio		1:10
Water supply System
Water tank capacity	L	540/Self-contained automatic water supply system
Chassis main performance parameters Engine main performance parameters
Engine model/displacement	L	CF4B68G-Z-13B2/CF4C100T-Z-13B2
Model	Direct injection four-stroke water-cooled supercharged diesel engine
rated power	kw/r/min	55KW/2400 78KW/2400
Maximum torque	N.m/r/min	255/1500-1800380/1500-1800
Maximum travel speed	km/h	24
Minimum turning radius	mm	5000
Grade ability	%	26
Tires		23.5/70-16
Drive form		4x4
Vehicle equipment quality	kg	4580
Maximum loading quality	kg	2800
The maximum total vehicle mass	kg	7380
Overall vehicle dimensions (L * W * H)	mm	610018503000
