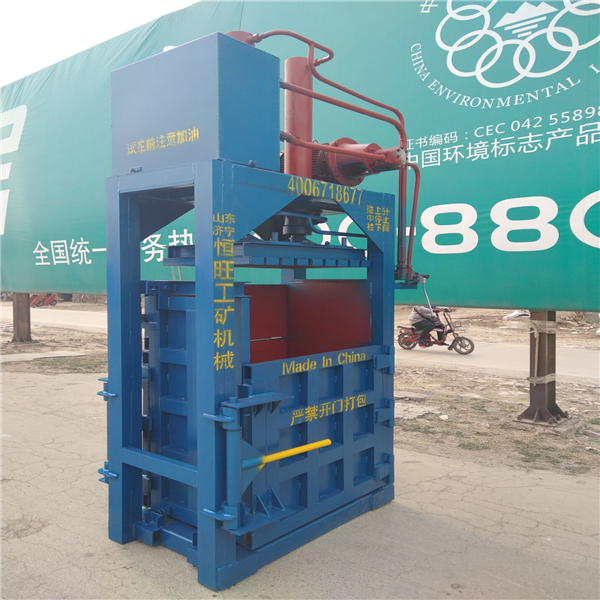

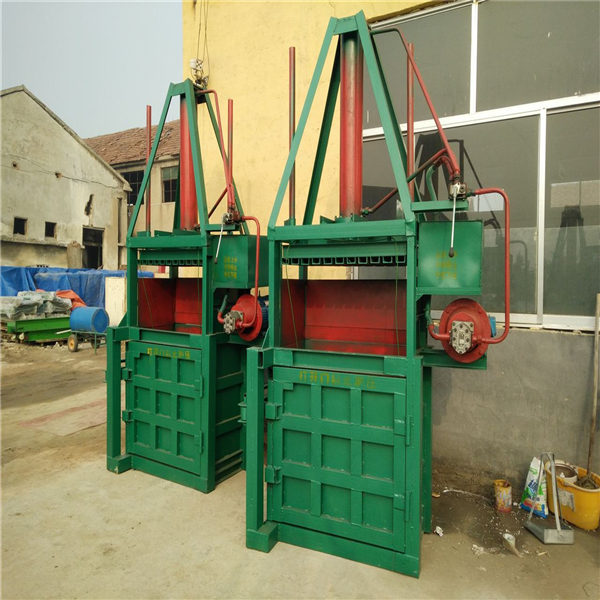

Hydraulic Cardboard Baling machine,Vertical Cardboard Baling Machine,Sale Hydraulic Cardboard Baler

Click on the image to view the original image

Product：	views：5Hydraulic Cardboard Baling machine,Vertical Cardboard Baling Machine,Sale Hydraulic Cardboard Baler
Branch：	heng wang
Type：	Other
Size：	56X50X60 cm
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-10-16 20:23

Product Details

Overview

Quick Details

After-sales Service Provided:: Overseas service center available

Application:: Apparel, Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical, Textiles

Packaging Material:: Glass, Metal, Paper, Plastic

Type:: Other

Applicable Industries:: Manufacturing Plant, Food & Beverage Factory, Home Use, Retail, Food Shop, Construction works , Advertising Company

Condition:: New

Packaging Type:: Bags, Barrel, Belt, Bottles, Cans, Capsule, Cartons, Case, Film, Foil, Pouch, Stand-up Pouch

Automatic Grade:: Semi-Automatic

Driven Type:: Electric

Voltage:: 220V/380V

Power:: 7.5kw

Place of Origin:: Shandong, China

Brand Name:: heng wang

Weight:: 500kg

Dimension(L*W*H):: 980*680*1650mm

Certification:: ISO

Name:: Hydraulic Cardboard Baling machine,Vertical Cardboard Baling Machine

Product name:: Hydraulic Cardboard Baling machine,Vertical Cardboard Baling Machine

Function:: High Effieciency

Usage:: Compress Waste Paper

Packing material:: Wooden Case

Machine name:: Hydraulic Cardboard Baling machine,Vertical Cardboard Baling Machine

Packing speed:: 30-60 Bags/min

Material:: Stainless Steel

Warranty:: 1 Year

Keyword:: Hydraulic Baling Machine

Packaging & Delivery

Selling Units:: Single item

Single package size:: 56X50X60 cm

Single gross weight:: 65.0 kg

Package Type:: wooden case

Lead Time:

Quantity(Set)	1 - 1	>1
Est. Time(days)	7	To be negotiated

Product Description

Application Scope
The HW Series Hydraulic Vertical is widely used in baling and pressing kinds of raw materials.Such as:Straw,Hay,Waste paper,Waste used clothes,rags,Carton,Cardboard,Plastic bottles,Dried chili papers,Herbals,Sheep wool,waste Tires,Cans,sawdust,wood wool,stalk,fiber and fabric stuff,sponge,heels,and all other loose materials.

Finished products
One rectangular bale of above raw materials which is tightly pressed,which will save space and easy for transportation.The bale size can be customized.The bale weight will be realized by using different kinds of hydraulic press,there are 5ton,10ton,30ton,60ton,80ton,120ton,150ton,200ton.Or bigger pressure.also there are single cylinder and double cylinder and three cylinders.

To recommend you the fittest pressure,please let me know your raw materials,final bale size and final bale weight you want to get.

Machine structure
The baler machine is mainly made up of rack,oil cylinder,gear pump,reversing valve(or distributor),motor,totally six big parts.

Model	Force	Bale size	Bale weight	Efficiency	Power (KW)	Machine weight	Size (mm)
HW10-6040	10 Ton	800*600 mm	30-50 KG	4-6 bale/hour	2.2	1000 KG	9006502100
HW20-8060	20 Ton	800*600 mm	80-100 KG	4-6 bale/hour	4	1100 KG	10007502750
HW30-8060	30 Ton	800*600 mm	100-130 KG	4-6 bale/hour	5.5	1300 KG	10007502750
HW30-11070	30 Ton	1100*700 mm	130-150KG	4-6 bale/hour	5.5	1700 KG	13508503200
HW40-11070	40 Ton	1100*700 mm	180-200KG	4-6 bale/hour	7.5	1800 KG	13508503200
HW40-12080	40 Ton	1200*780 mm	200-240KG	4-6 bale/hour	7.5	2050 KG	160010503300
HW50-12080	50 Ton	1200*800 mm	320-350KG	4-6 bale/hour	7.5 or 11	2600 KG	160010503300
HW60-12080	60 Ton	1200*800 mm	380-420KG	4-6 bale/hour	11 or 15	2900 KG	160010503300
HW80-12080	80TON	1200*800 mm	450-480KG	4-6 bale/hour	15	3300 KG	160010503300
HW100-12080	100TON	1200*800 mm	500-550KG	4-6 bale/hour	15	3700KG	160010503300
HW120-150100	120TON	1500*1000 mm	650-700KG	4-6 bale/hour	15 or 18.5	4300KG	210015503300
HW150-150100	150TON	1500*1000 mm	850-900KG	4-6 bale/hour	18.5	5100KG	210015503300
