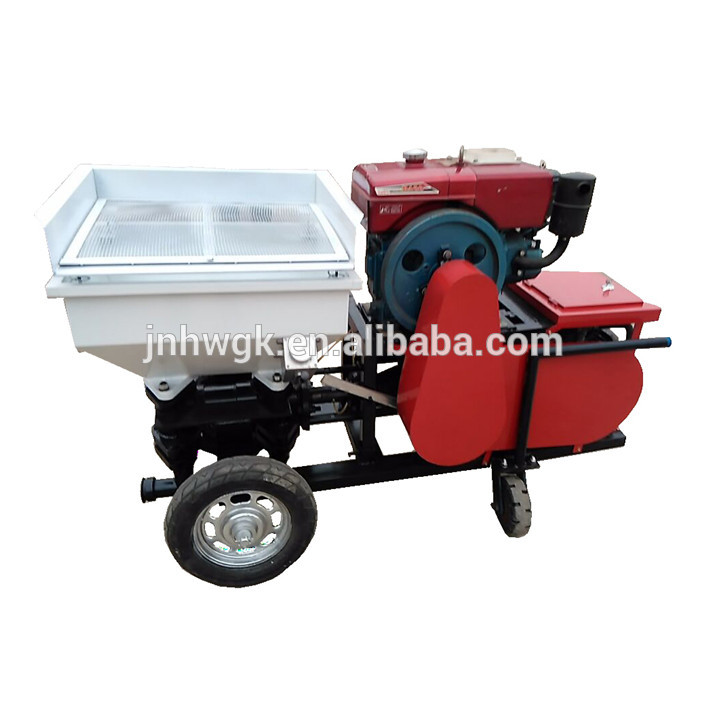

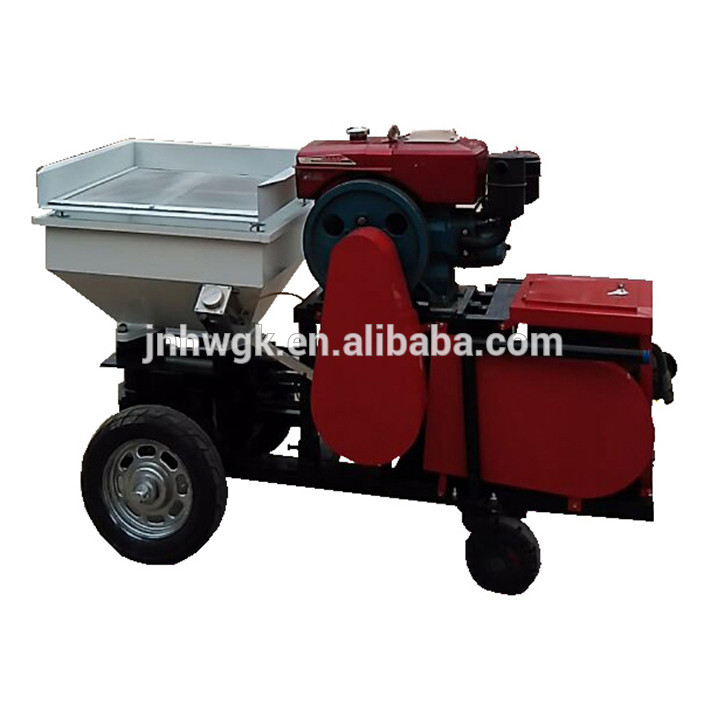

Mortar spraying machine
High pressure mortar spraying machine is a Screw Pump high-pressure mortar spraying machine, with advanced technology, simple operation and maintenance, it can be operated skillfully without special training. High pressure mortar spraying machine adapted spraying material included: putty powder, paint, latex paint, lacquer, cement mortar, dry mortar, thermal insulation, waterproofing materials, fireproof materials, insulation materials, sound-absorbing materials and other water-soluble material.
Application of Diesel cement concrete spray machines
Mainly used in the construction, spraying cement mortar on the internal wall, and spraying heat insulating material, fireproof materials no the external wall.
Product Features of Diesel spray gun cement machine :
1.Application spraying materials: putty powder, paint, latex paint, real stone paint, cement mortar, dry mortar, insulation mortar, waterproof material, fire prevention materials, insulation materials, sound-absorbing materials and some other water soluble materials.
2.By adjusting the amount of flow, spraying out the best effect.
3.Except the electric control box , it equipped with remote control to switch spraying.
4.The connection of the spray gun and the feeding tube can be rotated, so it is easy to operate.
5 High efficiency of the construction, and good spraying quality.
6.The volume is small, easy to on-site transport, low cost accessories, and simple repair.
7.Using easily, fast speed, saving materials, labour and money, a machine needs only three people, 150 square / hour (thickness 2cm).
8.Material proportion. cement : mortar, 0.7 : 3
Diesel model :
Power : diesel engine
Conveying height: 30M
Through the particle size :<1CM
Delivery flow: 3-5M³ / H
Gray: Sand :1: 3
Hopper volume :50L
Machine weight :320KG
Matching nozzle wall :38MM
Electric model :
Power: Electric engine , 220V
Delivery pressure:2.5Mpa
Transport height:10~15m
Transportdistance:30m
Max sand diameter:8mm
Volume:40L
Power: Electric engine , 380V
Transport height:15-30m
Max sand diameter:8mm
Hopper volume :50L
Mortar spraying machine spare parts
