Home > Products > Mineral Core Drilling Machine core drilling machine for mineral exploration

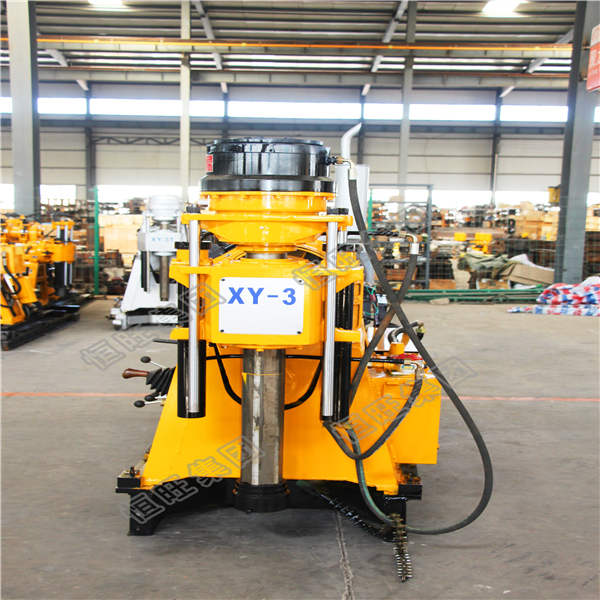

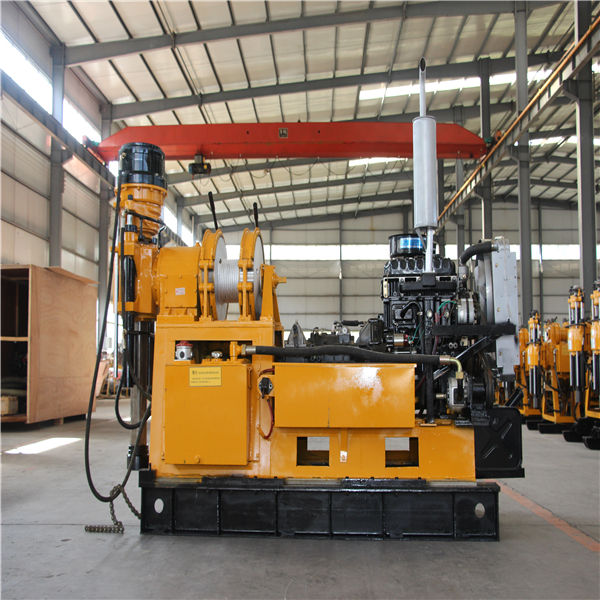

Mineral Core Drilling Machine core drilling machine for mineral exploration
Click on the image to view the original image
Product： views：2Mineral Core Drilling Machine core drilling machine for mineral exploration
Branch： HENG WANG
Type： Rotary Drilling Rig
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-10-16 20:23
  Negotiated
Product Details
Overview
Quick Details
Condition:
New
Type:
Rotary Drilling Rig
Power Type:
Diesel
Place of Origin:
Shandong, China
Brand Name:
HENG WANG
Model Number:
XY-3
Usage:
Water Well
Voltage:
Diesel Engine Driven
Power(W):
39KW
Dimension(L*W*H):
2500*900*1800mm, 2500*900*1800mm
Weight:
1600kg
Certification:
ISO9001
Name:
Multifunction Hydraulic Drilling Rig
Product name:
Water Drilling Machine Prices
Application:
Water Wells
Drilling depth:
530m
Feature:
High Drilling Efficiency
Model:
XY-3
Color:
Customised
Drilling diameter:
75-300mm
Engine:
Diesel Power
After-sales Service Provided:
Overseas service center available
Warranty:
1 Year
Supply Ability
Supply Ability:
1000 Set/Sets per Month Mineral Core Drilling Machinecore drilling machine for mineral
Packaging & Delivery
Packaging Details
woodencase
Port
shanghai qingdao dalian shenzhen ningbo
Lead Time:
within 7 days
Video Description
Product Description

  Drill MW525 type car transmission assembly, cloud 490 car powertrain, with 10 speed series and a reasonable speed range, large torque, strong bearing capacity, enabling long-distance manipulation of speed, centralized operation and convenient.

installed power, with 2 reverse speed, easy to handle accidents.
joystick focus, reasonable layout and compact, easy to operate, flexible and reliable.
with normally closed hydraulic chuck, easy and flexible operation.
Vertical shaft and winch can be achieved independent operation.
vertical shaft diameter, can be replaced with large six active drill pipe.

Machine parameters
Drilling depth530m
Drilling diameter75-300mm
Hole diameter300mm
Final hole diameter75mm
Drill pipeΦ60
Drilling inclination90°--65°
Vertical axis
Vertical axis forward speed32-1057r/min
Vertical axis reversal speed29-137r/min
Vertical axis travel600mm
Vertical shaft bore diameter96mm
Vertical axis to enhance ability60kN
The main winch
Single rope to enhance speed0.5-1.9m/s
Rope diameter12.5mm
Single rope to enhance ability30kN
Reel diameter300mm
Reel capacity65m
Mud pump (optional)
Horizontal three-cylinder BW-250 mud pumpBW-250 mud pump
Displacement250L/min
Work pressure 80kgcm²
Intake pipe diameter76mm
Outlet diameter51mm
Gear pump
Double gear pumpCBF-F63/25
Pre-flow pressure63L/min 20Mpa
Post-flow pressure25L/min 20Mpa
Rig power
Diesel engineCloud YN27 / power 39kw / 2400rpm
MotorY180L-4/22kW/1470rpm
Weight size
Rig weight1600KG
Dimensions2500×900×1800mm

 Mineral Core Drilling Machine  core drilling machine for mineral exploration
