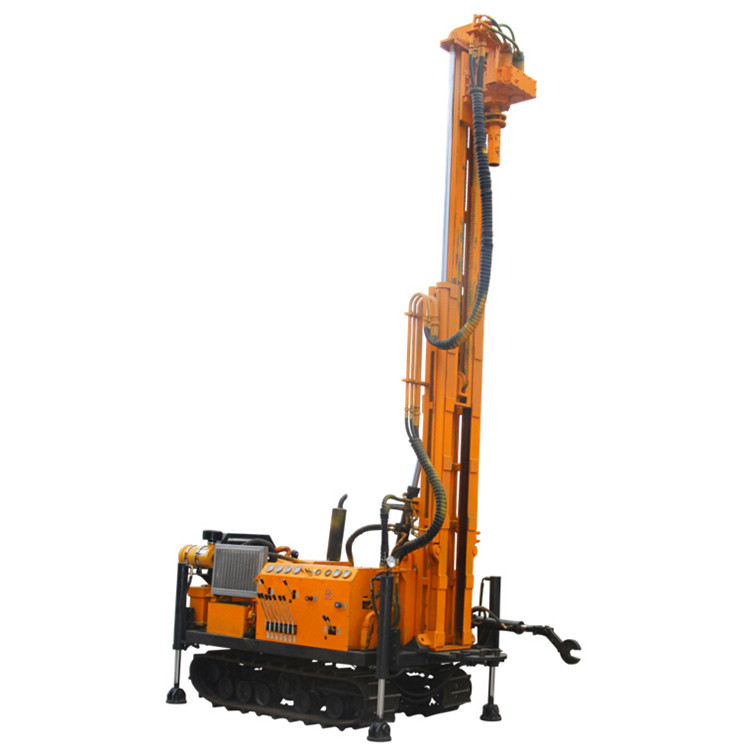

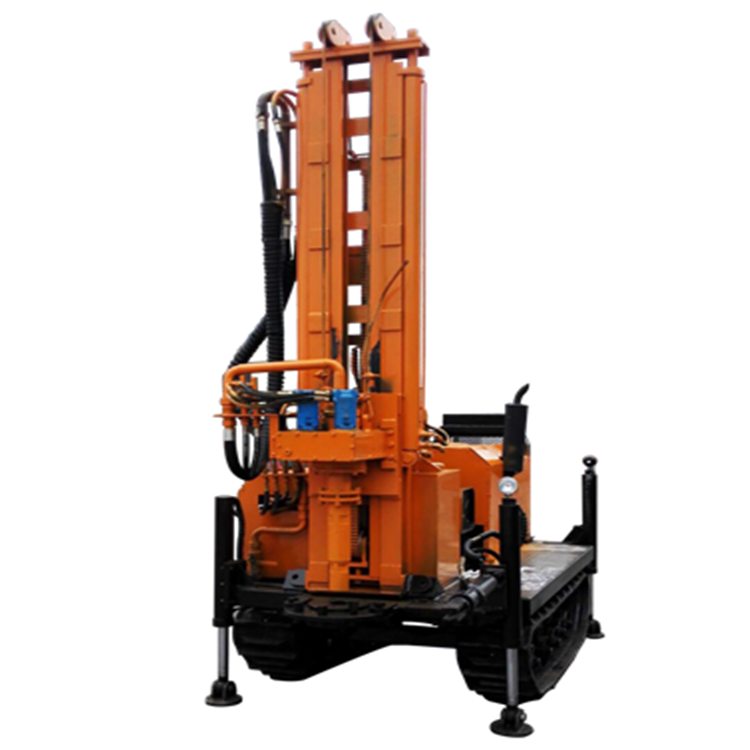

HENGWANG core drilling rig

Click on the image to view the original image

Product：	views：2HENGWANG core drilling rig
Branch：	HW
Type：	Core Drilling Rig
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-10-16 20:23

Product Details

Overview

Quick Details

Condition:: New

Type:: Core Drilling Rig

Power Type:: Diesel

Place of Origin:: Shandong, China

Brand Name:: HW

Model Number:: HQZ150L

Usage:: Coal

Voltage:: 380V

Power(W):: 42KW

Dimension(L*W*H):: 2400*1500*2400

Weight:: 3.5T

Certification:: ISO

Model:: drilling machine

Drilling diameter:: 130-245mm

Drilling depth:: 150m

After-sales Service Provided:: Engineers available to service machinery overseas

Warranty:: 1 Year

Supply Ability

Supply Ability:: 100 Set/Sets per Year track drilling machine

Packaging & Delivery

Packaging Details: track drilling machine export container

Port: QINGDAO

Lead Time:: three work days

Product Description

Water well drilling rig

This machine can be applied to various strata, used in water well engineering, geothermal well, anchor pile hole and so on, and can be used with follow-pipe drilling. It has the advantages of whole machine hydraulic control, automatic loading and unloading drill pipe, crawler type chassis, large horsepower diesel engine, four hydraulic support leg balance, stronger terrain application ability and so on.

Model	HQZ150L
Overall weight	3.5T
Dimension	340015002400 MM
Drilling diameter	130-245MM
Drilling depth	150M
One-time advance length of the drill	3m
Traveling speed	2.5km/h
Climbing ability	25degree
Working Air Pressure	1.45 - 2.5Mpa
Air consumption	15 - 27
Main machine power	42KW
Rotary Speed	38 - 80
Rotary torque	4000-5000Nm
