china-made underground water drilling machine Used Truck Mounted Water Well Drilling Rig
Click on the image to view the original image
Product： views：2china-made underground water drilling machine Used Truck Mounted Water Well Drilling Rig
Branch： HENG WANG
Type： Rotary Drilling Rig
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-10-16 20:23
  Negotiated
Product Details
Overview
Quick Details
Condition:
New
Type:
Rotary Drilling Rig
Power Type:
Diesel
Place of Origin:
Shandong, China
Brand Name:
HENG WANG
Model Number:
HW160/190/230
Usage:
Water Well
Voltage:
Diesel Engine Driven
Power(W):
15KW
Dimension(L*W*H):
2.4*0.8*1.4m, 2.4*0.8*1.4m
Weight:
750kg
Certification:
ISO9001
Name:
Multifunction Hydraulic Drilling Rig
Product name:
Water Drilling Machine Prices
Application:
Water Wells
Drilling depth:
160/190/230m
Feature:
High Drilling Efficiency
Model:
HW160/190/230
Color:
Customised
Drilling diameter:
75-300mm
Engine:
Diesel Power
After-sales Service Provided:
Overseas service center available
Warranty:
1 Year
Supply Ability
Supply Ability:
1000 Set/Sets per Month underground water drilling machineUsed Truck Mounted Water Wel
Packaging & Delivery
Packaging Details
woodencase
Port
shanghai qingdao dalian shenzhen ningbo
Lead Time:
within 7 days
Video Description
Product Description

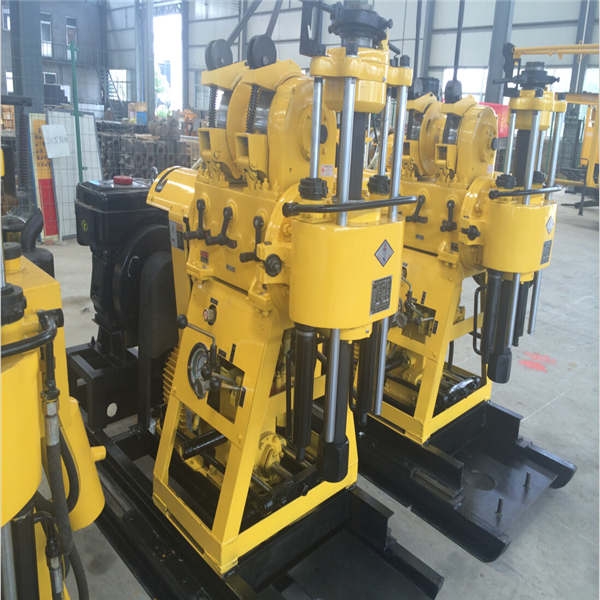

HW-190 drilling rig in the ordinary drilling rig based on the increase of the drill shift slide, enabling rapid replacement of drilling tools to improve work efficiency and reduce labor intensity. The company is located in:
Scope of application:
1, the drilling rig for high-speed drilling rig for census exploration, geophysical exploration, road and building exploration and blasting drilling and other drilling projects.
2, according to the bottom of the different choice of alloy, diamond and composite drill bits and other drilling.
3, can drill 2-9 levels of sandy clay and rock formations.
Main feature:
1, with hydraulic automatic feeding mechanism, improve drilling efficiency, reduce labor intensity.
2, using the ball clamping mechanism instead of chuck, can be implemented without downtime bar, easy to operate, safe and reliable.
3, hoist installation cage, the formation of double-sided support star wheel structure, can withstand strong impact.
4, vertical axis box bearing positioning of four groups to ensure that the rotator is rigid enough to deal with the gravel layer, pebble layer and other complex geological conditions.
5, the machine adopts the national patent technology taper clutch, with the transfer torque, easy to operate, maintenance-free salient features.


Machine parameters

Drilling depth

190m

The largest hole diameter

φ75-φ220mm

Final hole diameter

75-46mm

Active drill pipe

53/59*4200mm

Drill rod diameter

φ50,φ42mm

Drilling inclination

90°~75°

Supporting power (diesel engine)

13.2/2200kW/r/min

Structure weight / size

2.4*0.8*1.3

Vertical axis

Vertical axis speed

130/300/480/730/830/1045r/min

Vertical axis travel

450mm

Hoist

Single rope lift force

2100

Single rope to enhance speed

0.35-2.23m/s

Reel diameter

φ140mm

Rope diameter

φ9.3mm

Rope capacity

27m

Drilling tower

Rated load

18

Effective height

6.5m

Tower legs specifications

φ73mm

Mud pump

Model

BW95

Flow

95L/min

Greatest pressure

1.2Mpa

The number of reciprocations

93N/min

Suction pipe diameter

φ51mm

High pressure water outlet pipe diameter

 φ32mm





Certifications

china-made underground water drilling machine  Used Truck Mounted Water Well Drilling Rig

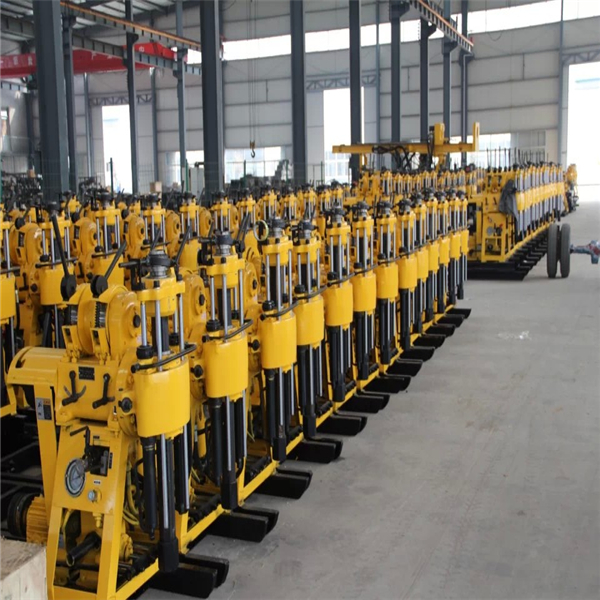

Factory and Team
