Water Well Drilling Rig,Drilling Equipment for blasting hole,Drilling For Groundwater

Click on the image to view the original image

Product：	views：2Water Well Drilling Rig,Drilling Equipment for blasting hole,Drilling For Groundwater
Branch：	HENG WANG
Type：	Rotary Drilling Rig
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-10-16 20:23

Product Details

Overview

Quick Details

Condition:: New

Type:: Rotary Drilling Rig

Power Type:: Diesel

Place of Origin:: Shandong, China

Brand Name:: HENG WANG

Model Number:: HW160/190/230

Usage:: Water Well

Voltage:: Diesel Engine Driven

Power(W):: 15KW

Dimension(L*W*H):: 2.4*0.8*1.4m, 2.4*0.8*1.4m

Weight:: 750kg

Certification:: ISO9001

Name:: Multifunction Hydraulic Drilling Rig

Product name:: Water Drilling Machine Prices

Application:: Water Wells

Drilling depth:: 160/190/230m

Feature:: High Drilling Efficiency

Model:: HW160/190/230

Color:: Customised

Drilling diameter:: 75-300mm

Engine:: Diesel Power

After-sales Service Provided:: Overseas service center available

Warranty:: 1 Year

Supply Ability

Supply Ability:: 1000 Set/Sets per Month Water Well Drilling Rig,Drilling Equipment forblasting hole,Dr

Packaging & Delivery

Packaging Details: woodencase

Port: shanghai qingdao dalian shenzhen ningbo

Lead Time:: within 7 days

Product Description

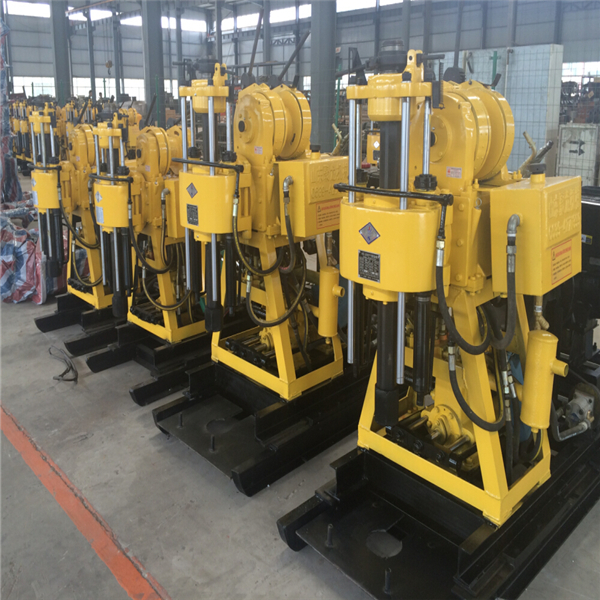

HW-190 drilling rig in the ordinary drilling rig based on the increase of the drill shift slide, enabling rapid replacement of drilling tools to improve work efficiency and reduce labor intensity. The company is located in:

Scope of application:

1, the drilling rig for high-speed drilling rig for census exploration, geophysical exploration, road and building exploration and blasting drilling and other drilling projects.

2, according to the bottom of the different choice of alloy, diamond and composite drill bits and other drilling.

3, can drill 2-9 levels of sandy clay and rock formations.

Main feature:

1, with hydraulic automatic feeding mechanism, improve drilling efficiency, reduce labor intensity.

2, using the ball clamping mechanism instead of chuck, can be implemented without downtime bar, easy to operate, safe and reliable.

3, hoist installation cage, the formation of double-sided support star wheel structure, can withstand strong impact.

4, vertical axis box bearing positioning of four groups to ensure that the rotator is rigid enough to deal with the gravel layer, pebble layer and other complex geological conditions.

5, the machine adopts the national patent technology taper clutch, with the transfer torque, easy to operate, maintenance-free salient features.

Machine parameters
Drilling depth	190m
The largest hole diameter	φ75-φ220mm
Final hole diameter	75-46mm
Active drill pipe	53/59*4200mm
Drill rod diameter	φ50,φ42mm
Drilling inclination	90°~75°
Supporting power (diesel engine)	13.2/2200kW/r/min
Structure weight / size	2.40.81.3
Vertical axis
Vertical axis speed	130/300/480/730/830/1045r/min
Vertical axis travel	450mm
Hoist
Single rope lift force	2100
Single rope to enhance speed	0.35-2.23m/s
Reel diameter	φ140mm
Rope diameter	φ9.3mm
Rope capacity	27m
Drilling tower
Rated load	18
Effective height	6.5m
Tower legs specifications	φ73mm
Mud pump
Model	BW95
Flow	95L/min
Greatest pressure	1.2Mpa
The number of reciprocations	93N/min
Suction pipe diameter	φ51mm
High pressure water outlet pipe diameter	φ32mm
