- Condition:
- New
- Type:
- Rotary Drilling Rig
- Power Type:
- Diesel
- Place of Origin:
- Shandong, China
- Brand Name:
- HENG WANG
- Model Number:
- HW160/190/230
- Usage:
- Water Well
- Voltage:
- Diesel Engine Driven
- Power(W):
- 15KW
- Dimension(L*W*H):
- 2.4*0.8*1.3m, 2.4*0.8*1.3m
- Weight:
- 750kg
- Certification:
- ISO9001
- Name:
- Multifunction Hydraulic Drilling Rig
- Product name:
- Water Drilling Machine Prices
- Application:
- Water Wells
- Drilling depth:
- 160/190/230m
- Feature:
- High Drilling Efficiency
- Model:
- HW160/190/230
- Color:
- Customised
- Drilling diameter:
- 75-325mm
- Engine:
- Diesel Power
- After-sales Service Provided:
- Overseas service center available
- Warranty:
- 1 Year
- Supply Ability:
- 1000 Set/Sets per Month Portable Water Well Drilling Rigs For Sale,Small Water Well Dril
- Packaging Details
- woodencase
- Port
- shanghai qingdao dalian shenzhen ningbo
- Lead Time:
- within 7 days

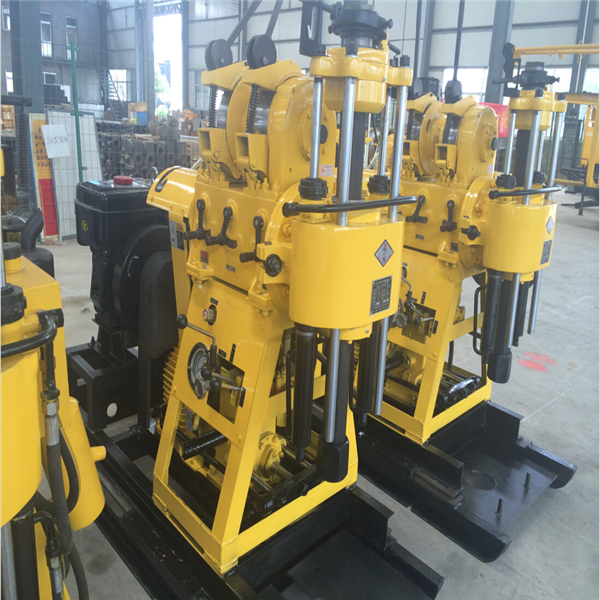

HW - 230YY type drill based on the ordinary drill increase drill shift chute, which can realize quick change tool to improve the work efficiency to reduce Labour intensity.
Machine parameters | |
Drilling depth | 230m |
The largest hole diameter | φ75-φ325mm |
Final hole diameter | 75mm |
Active drill pipe | 53/59*4200mm |
Drill rod diameter | φ42-φ60mm |
Drilling inclination | 90°~75° |
Supporting power (diesel engine) | 14.7kW/r/min |
Structure weight / size | 2.7*0.9*1.5 |
Vertical axis | |
Vertical axis speed | 64/128/287/557r/min |
Vertical axis travel | 450mm |
Hoist | |
Single rope lift force | 2500 |
Single rope to enhance speed | 0.12-0.95m/s |
Reel diameter | φ140mm |
Rope diameter | φ12.5mm |
Rope capacity | 35m |
Drilling tower | |
Rated load | 18 |
Effective height | 6.5m |
Tower legs specifications | φ89mm |
Mud pump | |
Model | BW145 |
Flow | 145L/min |
Greatest pressure | 2Mpa |
The number of reciprocations | 93N/min |
Suction pipe diameter | φ51mm |
High pressure water outlet pipe diameter | φ32mm |
