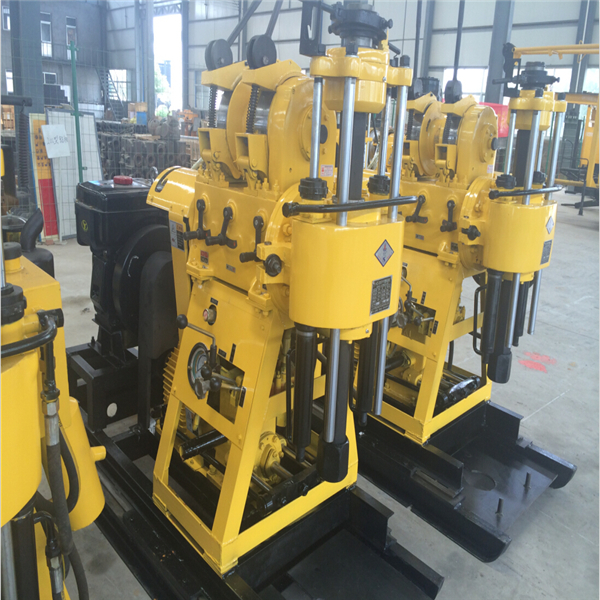

Portable Water Well Drilling Rig For Sale full hydraulic Diesel Engine Driven Well Drilling Rig Machine

Click on the image to view the original image

Product：	views：2Portable Water Well Drilling Rig For Sale full hydraulic Diesel Engine Driven Well Drilling Rig Machine
Branch：	HENG WANG
Type：	Rotary Drilling Rig
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-10-16 20:23

Product Details

Overview

Quick Details

Condition:: New

Type:: Rotary Drilling Rig

Power Type:: Diesel

Place of Origin:: Shandong, China

Brand Name:: HENG WANG

Model Number:: HW160/190/230

Usage:: Water Well

Voltage:: Diesel Engine Driven

Power(W):: 15KW

Dimension(L*W*H):: 2.4*0.8*1.3m, 2.4*0.8*1.3m

Weight:: 750kg

Certification:: ISO9001

Name:: Multifunction Hydraulic Drilling Rig

Product name:: Water Drilling Machine Prices

Application:: Water Wells

Drilling depth:: 160/190/230m

Feature:: High Drilling Efficiency

Model:: HW160/190/230

Color:: Customised

Drilling diameter:: 75-300mm

Engine:: Diesel Power

After-sales Service Provided:: Overseas service center available

Warranty:: 1 Year

Supply Ability

Supply Ability:: 1000 Set/Sets per Month Portable Water Well Drilling Rig For Sale full hydraulic Diesel

Packaging & Delivery

Packaging Details: woodencase

Port: shanghai qingdao dalian shenzhen ningbo

Lead Time:: within 7 days

Product Description

Scope of application:

1, the drill for drilling wells, census exploration, geophysical exploration, road and building exploration and blasting drilling and other drilling projects.

2, according to the bottom of the different choice of alloy, diamond and composite drill bits and other drilling.

3, can drill 2-9 level of sandy clay and rock formations.

Main feature:

1, with hydraulic automatic feeding mechanism to improve drilling efficiency and reduce labor intensity.

2, the use of ball clamping mechanism instead of chuck, can be achieved without downtime, easy to operate, safe and reliable.

3, with a hole pressure gauge, easy to control the situation inside the hole.

4, compact structure, the handle is concentrated, occupy a small area, light weight, strong decomposition, easy to relocate. Suitable for plain or mountain work.

Machine parameters
Drilling depth	160m
The largest hole diameter	φ75-φ220mm
Final hole diameter	75mm
Active drill pipe	53/59*4200mm
Drill rod diameter	φ42-60mm
Drilling inclination	90°~75°
Supporting power (diesel engine)	13.2/2200kW/r/min
Structure weight / size	2.40.81.4
Vertical axis
Vertical axis speed	142 285 570r/min
Vertical axis travel	450mm
Hoist
Single rope lift force	2000
Single rope to enhance speed	0.41 - 1.64m/s
Reel diameter	φ140mm
Rope diameter	φ9.3mm
Rope capacity	27m
Drilling tower
Rated load	18
Effective height	6.5
Tower legs specifications	73mm
Mud pump
Model	BW95
Flow	95L/min
Greatest pressure	1.2Mpa
The number of reciprocations	93/min
Suction pipe diameter	φ51mm*4.5m
High pressure water outlet pipe diameter	φ32mm*6m
