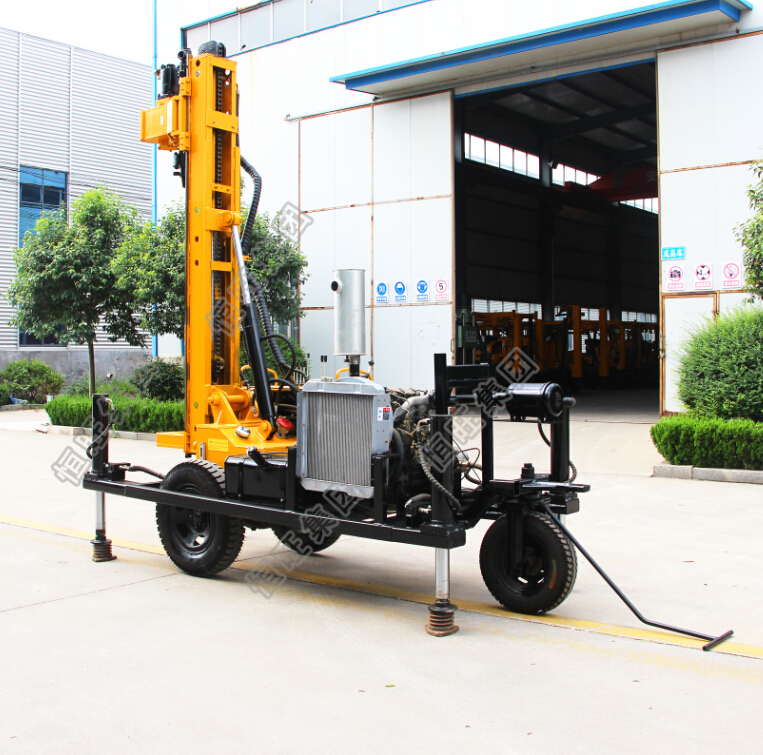

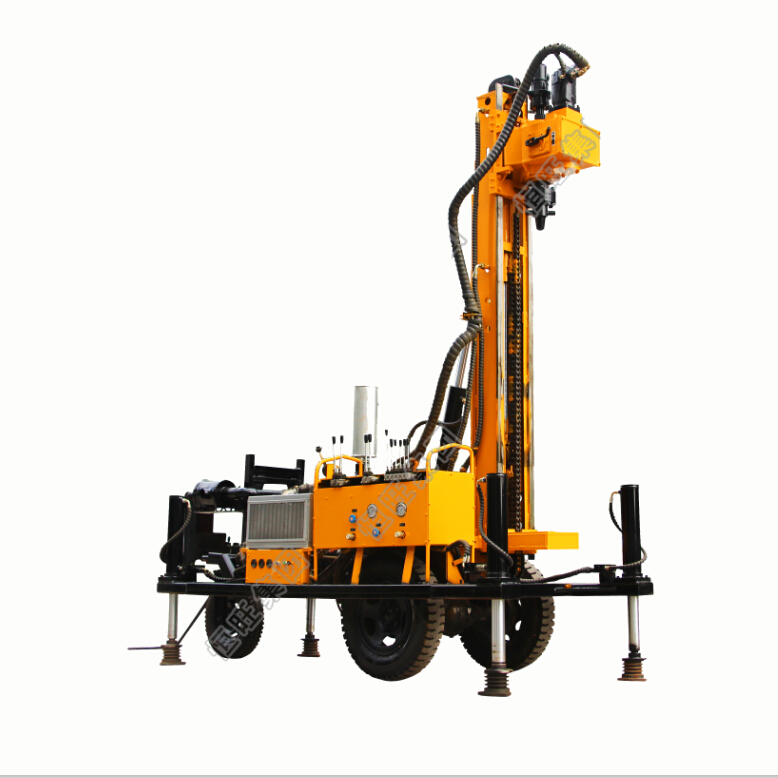

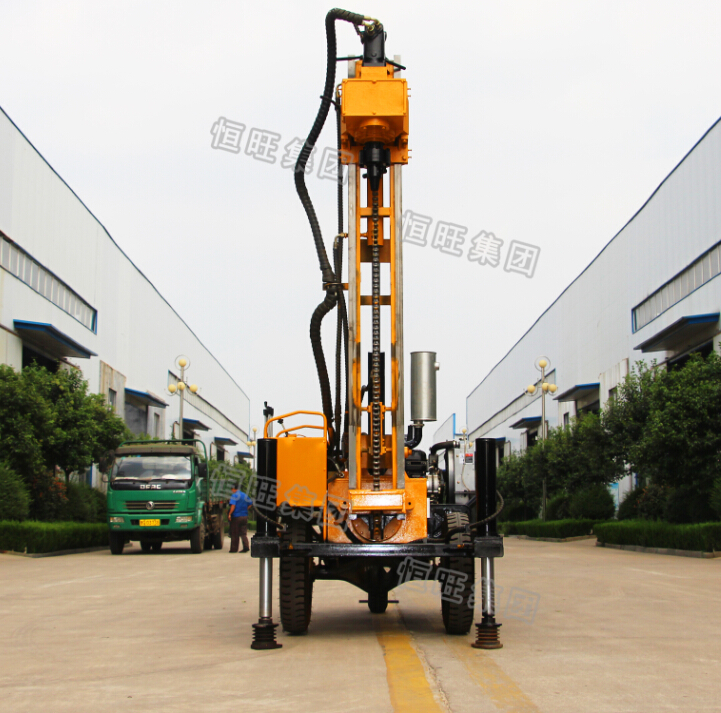

100M water well drilling rig with Air compressor and Mud pump

Click on the image to view the original image

Product：	views：2100M water well drilling rig with Air compressor and Mud pump
Branch：	HW
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-10-16 20:24

Product Details

Overview

Quick Details

Place of Origin:: Shandong, China

Brand Name:: HW

Model Number:: HQY100

After-sales Service Provided:: Engineers available to service machinery overseas

Model:: water well drilling rig

Walking Speed:: 2KM/H

Diesel engine:: YUN NEI 27

Power:: 37KW

Distance from ground:: 250mm

DTH hammer:: DHD360

Climbing angle:: 20°

Air pressure:: 1.05-2. 46Mpa

Drill pipe:: 76mm 89mm 102mm

feeding force:: 27KN

Supply Ability

Supply Ability:: 2000 Set/Sets per Year water well drilling rig

Packaging & Delivery

Packaging Details: wooden case

Port: QINGDAO

Lead Time:: seven work days

Product Details

Water well drilling rig

Main feature
I. The rig adopts new hydraulic technology, equipped with high torque hydraulic motors and a large-diameter hydraulic cylinder for propulsion.
2， Two grade air filter and air intake design prolongs the engine’s life. Unique pump design facilitate maintenance and reduce maintenance costs.
3,Centralized hydraulic control console, easy to operate.
4,This series of drilling rig can option the crawler chassis, wheeled chassis, off-road performance.
5，Independent module design, high cylinder leg rig can be easily mounted on a truck, increase its mobility.
6， Two rotation speed and advancing speed can meet the different needs of drilling in soil and rock layers.

Product Introduction

Product Parameters

Full hydraulic water well drilling rig technical parameters
ModelHQY100
Weight (kg)1800
Dimension (mm)3000*1200*2000
Walking Speed (km/h)0〜2
Engine ModelYN27
Engine parameter(kW/ rpm)37/2400
Distance from ground (mm)250
DTH hammerDHD360
（°) Climbing angle2020
Drilling depth (m)120
Air pressure (MPa)1.05〜2. 46
Air consumption (m3/min)16 〜30
Drill pipe (mm)φ76/φ89/φ102
076/089/ 0102φ76/φ89/ φ102
pipe length (mm)15003000
Drill bit (mm)φ115 〜φ254φ115 〜φ254
Feeding force (kN)27
lifting force (kN)40
Rotary speed (rpm) slow speed2222
fast speed17717
Torque (N*m)35005500
