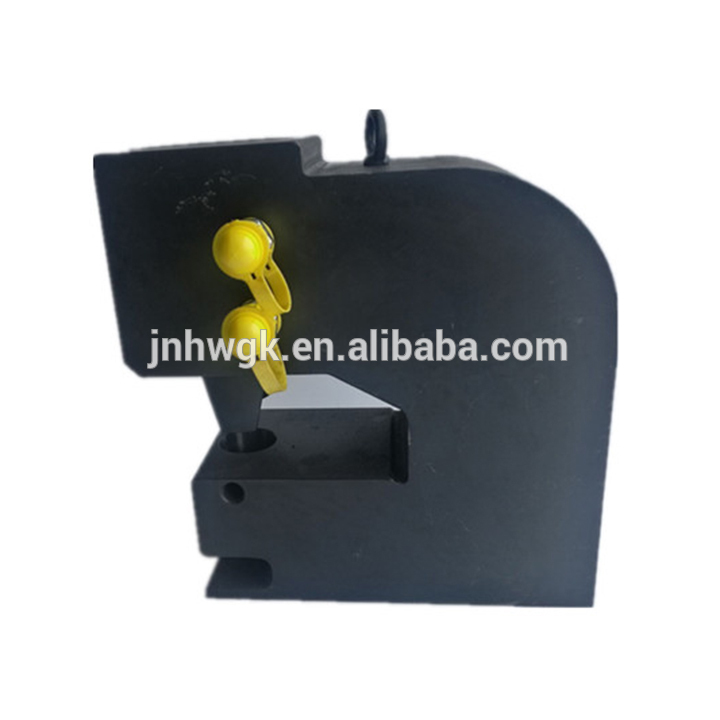

Sales promotion Portable eyelet punching machine iron hole punch machine
Click on the image to view the original image
Product： views：2Sales promotion Portable eyelet punching machine iron hole punch machine
Branch： HWGK
Type： Hydraulic Crimping Tools
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-10-16 20:24
  Negotiated
Product Details
Overview
Quick Details
condition::
new
Weight::
50kgs
Name::
hydraulic punching tools / hydraulic hole puncher
Brand Name::
HWGK
Pacagking::
wooden box
Color::
black
Delivery time::
7 days
pump:
Hydraulic electric pump
mold:
can customize the molds
Place of Origin:
Shandong, China
Model Number:
HW-80
Brand Name:
HWGK
Type:
Hydraulic Crimping Tools
Supply Ability
Supply Ability:
1000 Piece/Pieces per Week
Packaging & Delivery
Packaging Details
wooden box
Sales promotion Portable eyelet punching machine iron hole punch machine
Port
QINGDAO SHANGHAI TIANJIN
Lead Time:
Within 3 days receiving payment
Product Description

Product Application   Sales promotion Portable eyelet punching machine iron hole punch machine


HW -60/70/80/100 eyelet punching machine is a remote control tool, works with an external hydraulic pump (Hand Foot or Electric pump). It is designed to punch round holes on Cu/Al Busbar. With 4 pairs standard punching dies (10.5 / 13.8 / 17 / 20.5mm), punching hole size is between diameter 10.5mm and diameter 20.5mm. Busbar thickness should below or equivalent to 12mm. With hydraulic power, 4 pairs sharp punching dies, easy fast and clean punching can be achieved.


You can customize the mold.

It is used for copper busbar, iron sheet, Angle steel, Channel steel  etc.


Our Advantages:

1. The punching speed is fast, the positioning is accurate, the operation noise is small, there is no chip, the operation is safe and clean.

2. Double hole type return oil, quick oil recovery, greatly improved working efficiency.

3. The product is small in size and easy to carry, and it is used in the field or fixed plant for mass production.

SPECIFICATIONS FOR PUNCHING MACHINE
Type
Output
Throat depth
Model/Die(mm)
Weight
Max.Thickness iron/copper
HW-60
31T
95mm
Ф10.5,Ф13.8,Ф17.5,Ф20.5
19.5kgs
6mm/10mm
HW-70
35T
110mm
Ф10.5,Ф13.8,Ф17.5,Ф20.5
28kgs
10mm/12mm
HW-80

50T
115mm
Ф16,Ф18,Ф22,Ф25
50kgs
16mm/20mm
HW-100
100T
125mm
Ф22,Ф25,Ф28,Ф32
125kgs
20mm/20mm
Certifications
Detailed Images


Double solenoid valve dual circuit Hydraulic electric pump.




Widen the throat depth

The punch is more convenient




Quick connector

Suitable for most hydraulic pumps.


Die/Mold


The standard dies are offered with the machine. If need other molds, we can also make for you.
Our Service
Packing & Delivery
Packaging




Packaging Details



Standard wooden wrapping
