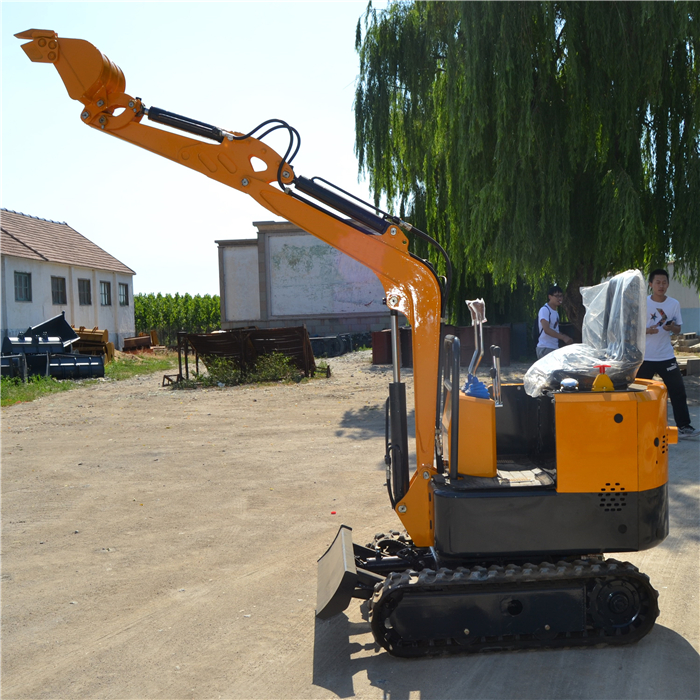

800kg crawler mini excavator for sale with diesel engine

Click on the image to view the original image

Product：	views：2800kg crawler mini excavator for sale with diesel engine
Branch：	hengwang
Type：	Mini Loader
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-10-16 20:24

Product Details

Overview

Quick Details

Dimension(Long * Breadth * High):: 1877x896x1990 mm

Condition:: New

Brand Name:: hengwang

Place of Origin:: Shandong, China

Type:: Mini Loader

Moving Type:: Crawler Loader

Rated Load:: 800kg

Certification:: CE ISO

Model Number:: HW08

Product name:: 800kg crawler mini excavator for sale withdiesel engine

Engine:: KOOP/ CHANGCHAI

Color:: Yellow

Bucket capacity:: 0.025cbm/100kg

Name:: 800kg crawler mini excavator for sale withdiesel engine

Attachments:: Pallet Fork

Model:: HW08

Operating weight:: 850KG

Rated Power:: 8.6KW

Tire:: 23.5/70-16

After-sales Service Provided:: No overseas service provided

Warranty:: 1 Year

Supply Ability

Supply Ability:: 1000 Set/Sets per Month 800kg crawler mini excavator for sale withdiesel engine

Packaging & Delivery

Packaging Details: nonpackage

Port: qingdaodalian shenzhenningbo

Lead Time:: within 3 days afterreceiveyourpayment

Product Description

This excavator is designed for small works, small projects, in garden, farmland, municipal works, vegetable greenhouse, digging trench It is with small engine, simple design, easy to maintain. This excavator is designed for small works, small projects, in garden, farmland, municipal works, vegetable greenhouse, digging trench It is with small engine, simple design, easy to maintain.

Model	HW 08
Operating Weight	850kg
Digging bucket capacity	0.025cbm/100kg
Bucket width	340mm
Engine	KOOP/ CHANGCHAI
Rated power	8.6 kw/1800r/min
Displacement	0.499 L
Bore stroke	70x55
Main pump	CBK-F6.8
Displacement	6.8ml/r
Swing motor	SJ-TECH (MP-1-160)
Traveling motor	KERSEN 310
Travel speed	1.5km/h
MAIN DEMENSIONS
Overall dimension( LxWxH)	1877x896x1990 mm
Wheelbase	770 mm
Total length of track	960mm
Platform ground clearance	376 mm
Platform back turning radius	664 mm
Chassis width	896 mm
Track width	180 mm
Chassis ground clearance	132 mm
Track height	320 mm
OPERATING RANGE
Max. Digging depth	1650 mm
Max. Vertical digging depth	1376 mm
Max. Digging height	2365 mm
Max. Dumping height	1655 mm
Max. Digging radius on ground	2560 mm
Min. Rotation radius	1200 mm
Max. Upgrade height of bulldozer blade	165 mm
Max. Digging depth of bulldozer blade	170 mm
Transportation	1-6 units load in 1x20GP container 7-12 units load in 1x40HQ container
