Home > Products > 0.5T 1T 2T 2.5T high quality manual hand stacker forklift

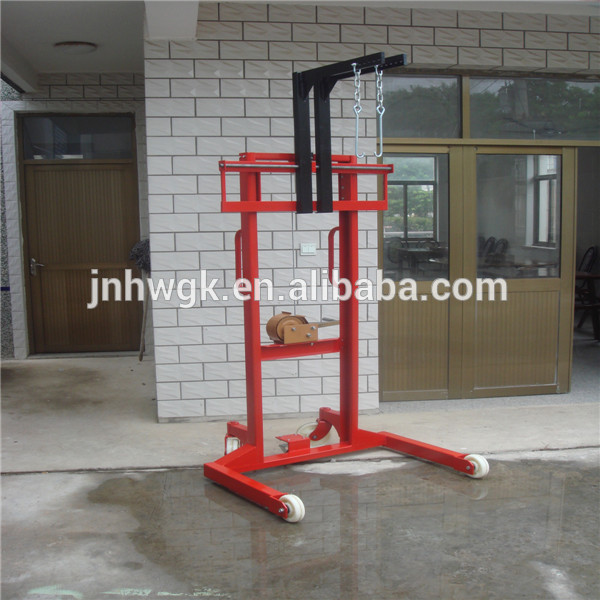

0.5T 1T 2T 2.5T high quality manual hand stacker forklift
Click on the image to view the original image
Product： views：20.5T 1T 2T 2.5T high quality manual hand stacker forklift
Branch： HW
Type： Manual Pallet Truck
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-10-16 20:24
  Negotiated
Product Details
Overview
Quick Details
Condition:
New
Place of Origin:
Shandong, China
Brand Name:
HW
Model Number:
HW--S2
Type:
Manual Pallet Truck
Power Souce:
no
Rated Loading Capacity:
0.5T-3T
Max. Lifting Height:
1600mm
Min. Lifting Height:
72mm
Fork Length:
800mm
Fork Width:
730mm
Overall Dimensions:
1280mm*730mm*1960mm
Certification:
ISO
Name::
manual hydraulic forklift
Rated Loading Capacity::
0.5T 1T 1.5T 2T 3T
Max. Lifting Height::
1600mm
Min. Lifting Height::
100mm
Fork Length::
730mm
Fork Width::
580mm
Drop speed:
controllable
Load Center::
400mm
Neight weight(kg):
100 125 145 165 200
Color:
Red, Yellow
After-sales Service Provided:
No overseas service provided
Supply Ability
Supply Ability:
2000 Unit/Units per Month
Packaging & Delivery
Packaging Details
Export Standard wrapping
Port
Qingdao
Lead Time:
Shipped in 3 days after payment
Product Description

Product Application   0.5T 1T 2T 2.5T high quality manual hand stacker forklift

Manual forklift/Stacker is a low altitude lifting and short distance transportation.Its characteristic is small volume,light weight,compact structure,beautiful work style,simple operation,good seal performance,work safety and reliability. Applicable to warehouse,ports,loading bays etc.In solid surfaces,lifting carrying heavy loads.

It is also widely applied to transport components in the factory workshop ,especially suitable for printing and dyeing,papermaking .It is one kind of civilized production tools.Special size for length and width can be made according to customer"s requirements.

                                 SPECIFICATIONS FOR Manual Forklift/Stacker
Model
HW-S0.5
HW-S1
HW-S1.5
HW-S2
HW-S3
Rated loading(kg)
500
1000
1500
2000
3000
Lifting height(mm)
1600
1600
1600
1600
1600
Low height(mm)
≤100
≤100
≤100
≤100
≤105
Effective length of the cargo fork(MM)
800
800
800
800
800
Load center distance(mm)
400
400
400
400
400
Fork adjustment range(mm)
160-480
200-580
260-580
260-580
260-580
Hoisting speed(mm/time)
20
20
15
15
10
Drop speed
controllable
controllable
controllable
controllable
controllable
Turning radius(mm)
≤1450
≤1500
≤1500
≤1500
≤1500
Whole machine length(mm)

1280
1280
1280
1280
1280
Whole machine width(mm)
620
730
730
730
740
Whole machine height(mm)
1940
1950
1960
1960
1970
Whole machine weight(kg)
100
125
145
165
200
Certifications
Detailed Images

Machine Parts  Handle


Heart shape round handle, feeling more comfortable, easy to operate.


Main Features

Imported seal sealing ring reduces the leakage of the oil and reduces the maintenance service life can be stepped foot and hand pressure rise.

Machine Parts Original double chain

Double chain design with bold reinforcement to enhance durability to make cargo safer.

Our Service
Packing & Delivery
Packaging
International standard export wrapping



Packaging Details



Strong wooden wrapping
Packaging



Packaging Details




Strong wooden wrapping
