Product Description

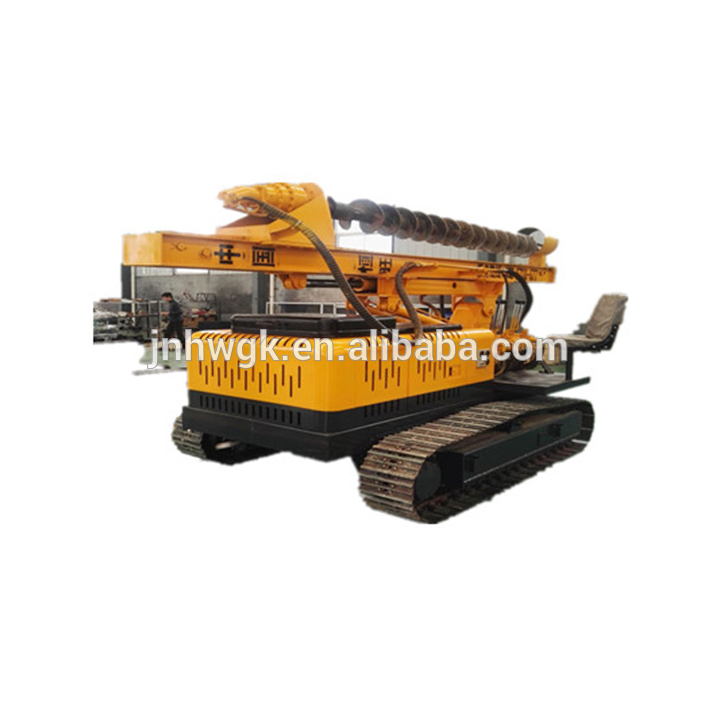

The hydraulic pile driver is a kind of multifunctional highway guardrail pile construction machinery, with different configuration it can accomplish many functions, such as piling, pile extracting, and drilling on the stable layer of road before piling.
The Advantages:
1 Systems are simple; while individual units are robust, repairs to nearly any component can be made by any mechanic.
2 Parts for repairs are readily available.
3 Interchangeablity of parts is supported by all models.
4 Similarities to other machines currently in use by customers ensure that further training in the usage of these tools is unnecessary.
5 Supplying power and fuel to these system is very feasible at construction sites.
Technical Parameter
Model | HWZGX-390S |
Rated power | 55KW |
Rated speed | 2400r/min |
Start voltage | 24V |
Duplex Gear Pump Displacement | 40ml/r |
Hydraulic System Pressure | 20Mpa |
Overall Machine Weight | 5.8T |
Diesel Engine | 80kw |
Rotation Angle | 360° |
Rotation Semi Diameter | 1925mm |
Effective Press Pile Stroke | 0-4000mm |
Dimension | 4650*2150*2700mm |
Track Shoe | 350mm |
Walking Motor Total Emissions | 1575ml/n |
Walking Motor Rated Pressure | 18Mpa |
Walking Motor Output Torque | 4300n.m |
Walking Motor Rotation | 50r/min |

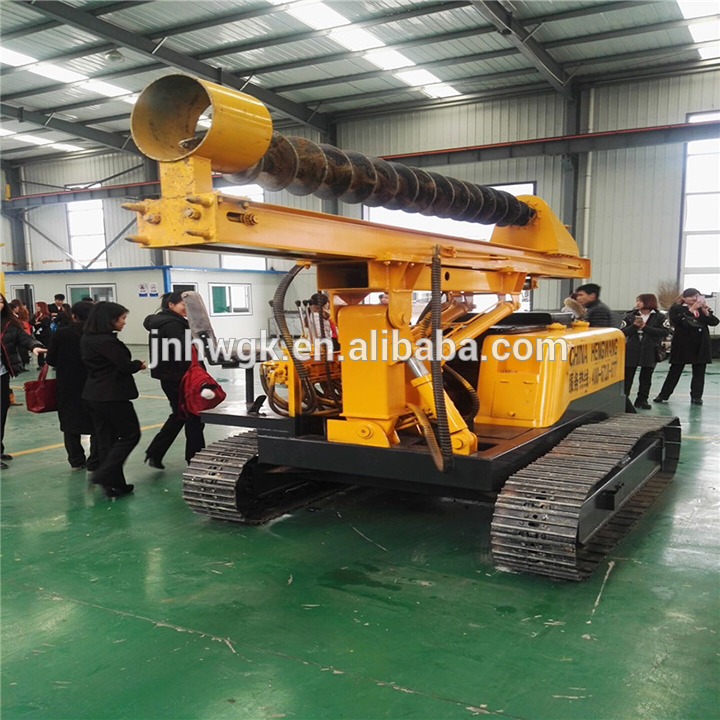

More Pictures
