Home > Products > 800kg load loader machine with cab for sale
800kg load loader machine with cab for sale
Click on the image to view the original image
Product: views:1800kg load loader machine with cab for sale
Branch: HW
Type: Front Loader
Unit Price: Negotiated
Min.Order:
Supply:
Delivery: Shipment within days since the date of payment
Valid until: Long Term
Updated on: 2019-10-16 20:24
  Negotiated
Product Details
Overview
Quick Details
Dimension(Long * Breadth * High):
490*1650*2650
Condition:
New
Brand Name:
HW
Place of Origin:
Shandong, China
Type:
Front Loader
Moving Type:
Wheel Loader
Rated Load:
800KG , 1800KG, 2800KGS
Certification:
ISO
Model Number:
HW-915
Name:
HW -915 Wheels loader
Rated load quality:
800kg
Minimum turing radius:
4400
Power:
20KW
Rated speed:
2300r/min
Machine weight:
2600kgs
Using for:
small construction , farms and others
After-sales Service Provided:
Engineers available to service machinery overseas
Warranty:
One Year
Supply Ability
Supply Ability:
200 Set/Sets per Month wheels loader
Packaging & Delivery
Packaging Details
wheels loader put in container
Port
qingdao , shanghai , ningbo ,tianjin
Lead Time:
within three days
Product Description

 1. Executive standard: customer"s requirements. Above information serves as a reference only, we can change the parameters reasonably according to your request.
2. Optional parts: snow plow, pallet fork, gripper, rock/coal bucket, portal frame, side dump bucket, clamp bucket, light material bucket, joystick, air condition, back up camera etc.
3. Warranty: 12 months after delivery, necessary spare parts presented free. After warranty, we can always provide spare parts according to customer"s wishes.

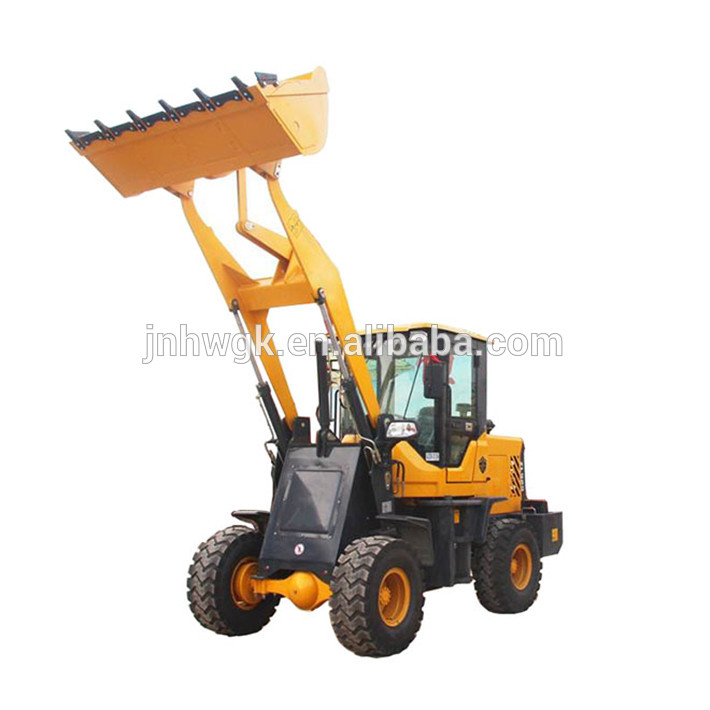

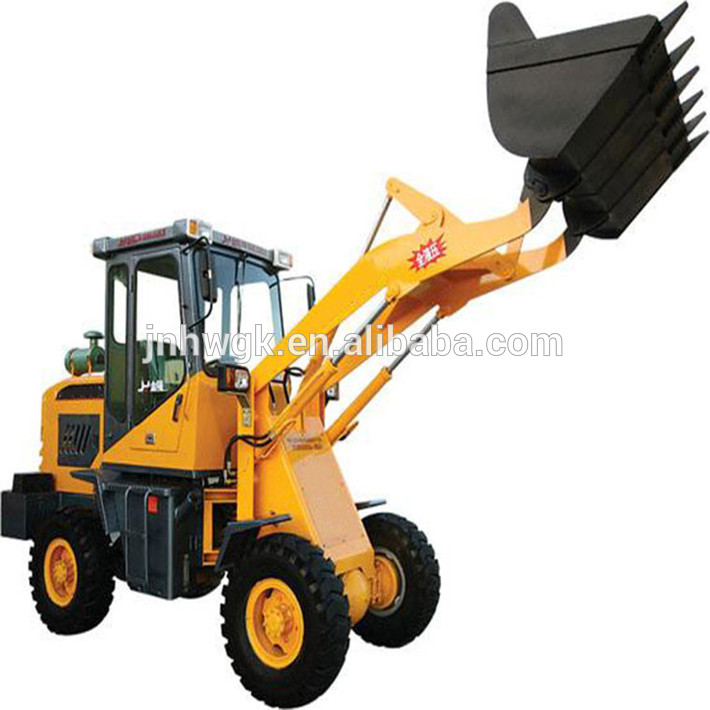

PHOTOS

PARAMETER

Model HW-912HW-915HW-940HW-940S
Rated load quality 800kgs800kgs2800kgs1800kgs
Rated bucket capacity 0.55m30.55m31.2m3
Engine model L28MCZ210241004102
Machine size 4540*1650*25804900*1650*26507200*2000*29106400*2100*2950
Machine weight 2600KGS3000KGS6300KGS6000KGS



Model
HW-L26
Rated capacity
0.6 m³
Rated load
1200kg
Transportation
5000mm*2000mm*3000mm
Dump height
3200mm
Dump distance
1000mm
Wheel base
2000mm
Tread
1440mm
Max. breakout force
36 KN
Total time
12s
Operating weight
3000kg
Engine

Model
YuChai Y28 diesel engine
Pattern
Inline, water-cooled, 4-stroke, direct injection
Rated power/Speed
30KW/2400 rpm
Torque converter and transmission system

Pattern
3-element single stage
Transmission type
Full-power shift, countershaft type
Number of gear
2 forward, 2 reverse 2
Max. travel speed
24km/h
Axle
Hualu
Main reducer pattern
Arc taper gear, model ration of first grade
Pattern of wheelside moderation
Planet gear moderation of single
Tire

Tire size
16/70-24
Steering system

Pattern
Articulated and hydraulic steering
Min. turning radius(outside of bucket)
5600mm
Max. turning angle
35°±1
Implement hydraulic system

Implement pump
CBG2063
System working pressure
16MPa
Brake system

Brake type
Air assisted oil disc on four wheel
Parking brake type
Soft axle control, outside bunch drum type









Packaging & Shipping
