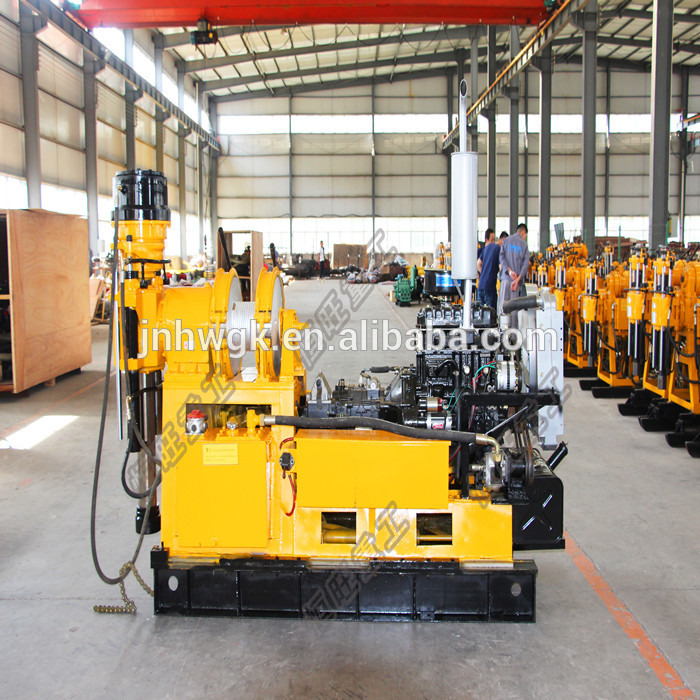

HW company cheap water well drilling rig with 600m depth

Click on the image to view the original image

Product：	views：2HW company cheap water well drilling rig with 600m depth
Branch：	HW
Type：	Rotary Drilling Rig
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-10-16 20:24

Product Details

Overview

Quick Details

Condition:: New

Type:: Rotary Drilling Rig

Power Type:: Diesel

Place of Origin:: Shandong, China

Brand Name:: HW

Model Number:: XY-3

Usage:: Water Well

Voltage:: 220V/380V

Power(W):: 38kw

Dimension(L*W*H):: 1620*970*1560mm

Weight:: 1600kg, 1600kg

Certification:: ISO

Name:: water well drilling rig,water well drilling rig with 600m depth,

Drilling diameter:: 75-110mm

Drilling depth:: 100, 250, 300, 600m

drill pipe diameter:: 60mm

Drilling angle:: 90°~65°

Dimension:: 1620*970*1560mm

Engine:: Diesel Power

Spindle Speed:: Forward 30-1050r/minReverse 29 137r/min

Lifting capacity:: 6000kg

After-sales Service Provided:: Overseas third-party support available

Warranty:: 1 Year

Supply Ability

Supply Ability:: 200 Set/Sets per Quarter water well drilling rig

Packaging & Delivery

Packaging Details: wooden case packing

Port: Qingdao port

Lead Time:: within 3 days

HW company cheap water well drilling rig with 600m depth

a. XY-3 drilling rig adopts CG140 model auto transmission, has 10 rotation speeds and easonable speed range,

with eight forward roation gears and two reverse rotation gears, high speed, strong stroke and wide scope of application.

b. Large engine power and two reverse rotation gears, can easily solve the drilling work accident.

c. The operation handles are fixed together in reasonable layout to make it more convenient for workers to operate the machine.

d. Equipped with normally closed hydraulic chuck, operation is flexible and reliable

e. Spindle and hoist can be operated separately.

f. Spindle has big inner diameter, able to use big hexagonal drilling rod.

Parameters

Unity machine parameter
Drilling depth	600m
Drilling caliber	200mm
Drill rod caliber	60mm
Drilling angle	90°~65°
Drill weight (No include power)	1600kg
Spindle
Spindle speed	Forward 30-1050r/min Reverse 29 137r/min
Spindle stroke	600mm
Hoist
Max.single line hoisting capacity	4000kg
Hug floodgate belt width	90mm
Reel diameter	300mm
Mud pump
Type	BW-250
Displacement	250L/min
Power
Diesel engine	4105 76HP
Electric motor	Y180L-4 59KW
Work pressure	80kg/cm²
Water inlet caliber	75mm
Water to exit caliber	50mm
