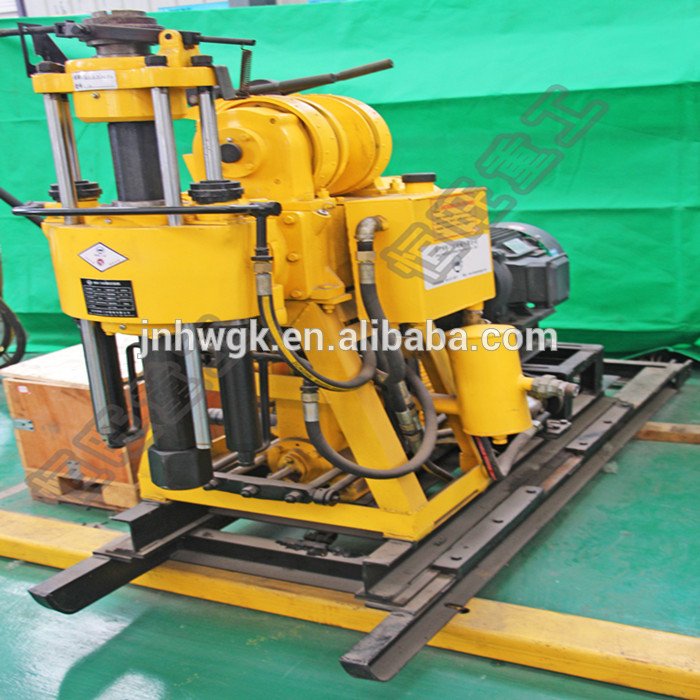

Geological exploration hydraulic water well drilling rig machine
Used for general investigation, geophysical exploration, high-way and building construction, and blast-hole drilling etc.
With hydro-automatic feeding device, and high drilling efficiency.
Designed with hydro-chucking unit instead of slips to ensure drilling from stop when changing pipes.
Close levers, convenient to operate, safe and reliable operations.
Compact in structure. All the drill, water pump and diesel engine installed on one base frame result in space-saving.
Light in weight, easy disassembling for transportation and applicable to working conditions in plain and mountain areas
Parameters
Unity machine parameter | |
Drilling depth | 190m |
Drilling caliber | 75-300mm |
Drill rod caliber | φ50,φ42mm |
Drilling angle | 90°~75 ° |
Drill weight | 750kg |
Spindle | |
Spindle speed | 130 300 480 730 830 1045 r/min |
Spindle stroke | 450mm |
Hoist | |
Single rope lift | 9.6KN |
Reel lifting speed | 0.35 0.8 1.29 1.96 2.23m/s |
Tightrope caliber | φ9.3mm |
Tightrope cubic measure | 27m |
Mud pump | |
Type | Horizontal single urn twin action |
Displacement | 95L/mim |
Power | |
Diesel engine | S1115 15HP |
Electric motor | Y160M-4 11kw 1440r/min |
Maximum pressure | 3Mpa |
Work pressure | 1.2Mpa |
Water inlet caliber | φ51mm*4.5m |
Water to exit caliber | φ32mm*6m |
Photos
