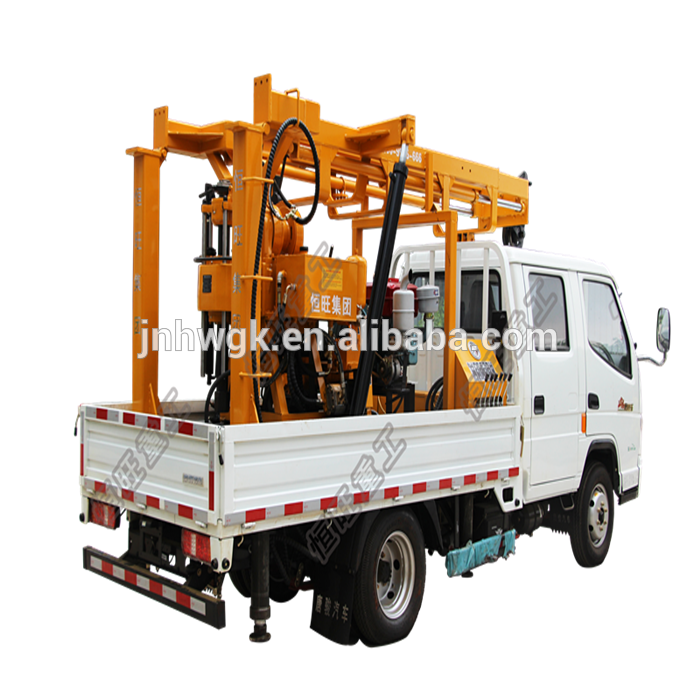

Top Quality Water Well Drilling Rig Machine
1, XYC-200 car rig for multi-purpose hydraulic car vertical shaft rotary drilling rig.
2, the vehicle chassis Wuzheng three-wheeled car 7YP-1475D1, drilling rig drive system and winch, mud pump and other important accessories installed on the chassis,
the layout is reasonable and compact, easy to operate.
3, equipped with BW-160 mud pump, high pressure, large flow, to ensure drilling depth and bore diameter.
4, drilling rig self-mobile device, you can achieve drilling rig back and forth before and after the host, easy to operate wellhead.
5, rig tower hydraulic landing type folding drill tower, safe and convenient operation.
Adaptation:
Geological Survey exploration, road and high-rise building foundation exploration, as well as a variety of concrete structure inspection holes, river embankments,
roadbed grouting hole drilling and direct grouting, civil wells and ground temperature central air conditioning.
Main Technical Parameter
Unity machine parameter | |
Drilling depth | 200 |
Maximum open hole caliber | 325 |
Drill weight (No include power) | 2200kg |
Main winch to enhance capacity (single rope)(Kg) | 1600 |
The main winch capacity rope(m) | 35 |
Rope diameter(mm) | 12.5 |
Tower high(mm) | 7000 |
Active drill pipe (mm) | 59*53 |
Drill pipe(mm) | 42,50,60 |
