Product feature

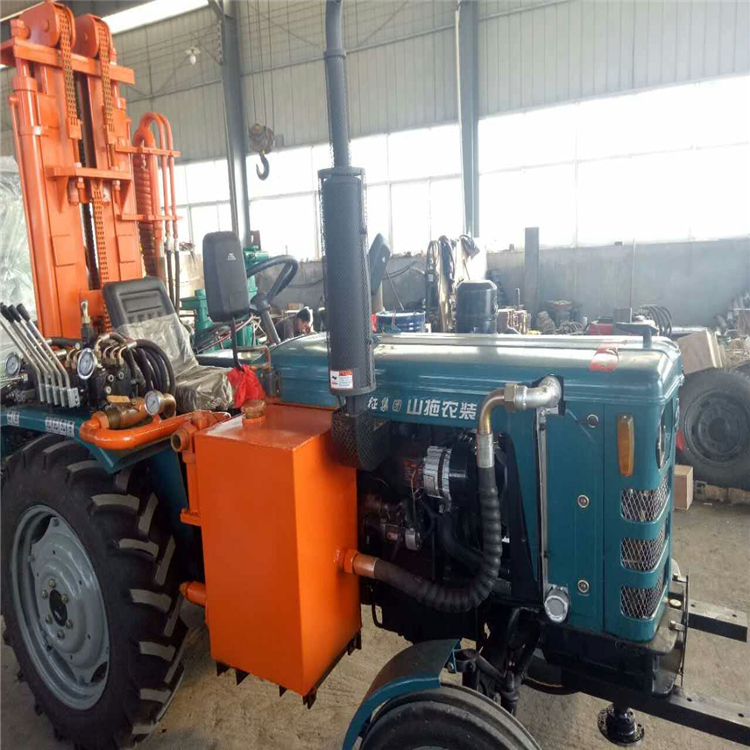

1.Tractors pneumatic water well drilling rig according to the user needs could be matched with different horsepower tractor chassis, different specification drilling tools , air compressor, DTH impactor and blast pipe, apply for variety of specifications.
2.Tractor pneumatic wells drilling machine is applicable to civil engineering drilling, geothermal drilling, with large diameter and deep drilling footage, fast, mobile and flexible, wide use of regions advantages, combined the advantages of drilling machine and tractor.
Technical Parameter
| Model | HQZ220T |
| Drilling hole diameter | Ø110-245mm |
| Drilling depth | 80-200m |
| Drilling Speed | 20-30m/h |
| drilling direction | 0° |
| Power | 40HP |
| Working Air Pressure | 1.3-2.7Mpa |
| Air consumption | 10-30m³/min |
| Adapt To Rock Hardness | F=6-20 |
| Sliding Distance | 1500mm |
| Rotating speed | 0~78 |
| DTH hammer | ND65A |
| Drill pipe | Ø76mm |
| Lifting Force | 10T |
| Maximum Torque | 4200 N.m |
| Self-walking Speed | 30km/hour |
| Weight | 2600kg |
