Home > Products > air pressure hydraulic mountain quarrying hard rock DTH drilling rig
air pressure hydraulic mountain quarrying hard rock DTH drilling rig
Click on the image to view the original image
Product： views：2air pressure hydraulic mountain quarrying hard rock DTH drilling rig
Branch： HWGK
Type： Core Drilling Rig
Size： 350X230X230 cm
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-10-16 20:24
  Negotiated
Product Details
Overview
Quick Details
Applicable Industries:
Construction works
Condition:
New
Type:
Core Drilling Rig
Power Type:
Diesel
Place of Origin:
Shandong, China
Brand Name:
HWGK
Usage:
Ore
Voltage:
220V, Diesel Engine And Air Compressor
Dimension(L*W*H):
80*70*250mm
Weight:
150KG
Certification:
ISO9001
Warranty:
1 Year
After-sales Service Provided:
Video technical support, Free spare parts, Online support, Engineers available to service machinery overseas
Air Compressor Unit Capacity::
3.5m3/min
Name:
Hard Rock Dth Drilling Rig
Power(W)::
35hp
Dimension:
Customized
Drill Rod ( D*L):
50mm*1500mm
Power Head Ratory:
800N.m-900N.m
Main Engine Power:
26KW 3600r/min
Hydraulic System:
0-60L/min

Packaging & Delivery

Selling Units:
Single item
Single package size:
350X230X230 cm
Single gross weight:
3000.0 kg
Package Type:
air pressure hydraulic mountain quarrying hard rock DTH drilling rig
Lead Time:
Quantity(Set)1 - 1>1
Est. Time(days)5To be negotiated
Video Description
Product Description

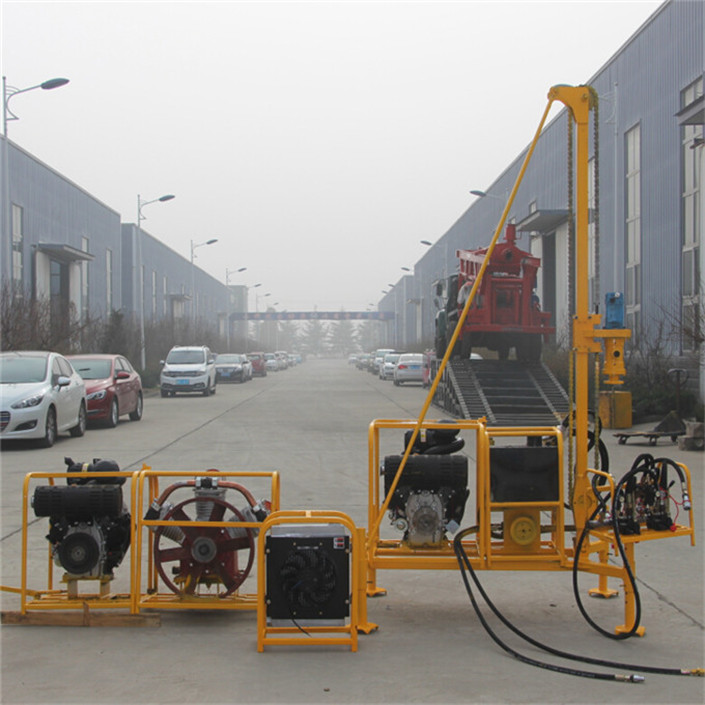

 air pressure hydraulic mountain quarrying hard rock DTH drilling rig



ModelHW-30
Drilling Depth30m
Drilling MethodsAir Shock Drilling
Spiral Drilling Or Mud Drilling(Alternative)
Drilling DiameterAir Shock DrillingRock:70mm-90mm,Soil: 75mm-95mm
Mud Drilling75mm-90mm
Drill Rod ( D*L)Air Shock DrillingΦ50mm*1500mm
Mud Drilling
Power HeadRated Torque800N.m-900N.m
Range of Speed0-135r/min
Pressing And Lifting Function of Drilling RigFeeding Pressure5500N-6000N
Lifting Force12KN-16KN
Max Lifting Speed0.71-0.81m/s
Main Engine Power /Speed26KW    3600r/min
Or
16.5KW   3600r/min
Hydraulic SystemFlow0-60L/min
Working Pressure20Mpa
Air Compressor UnitType/QuantityPiston/ One Set
Capacity3.5m³/min
Working Pressure0.8Mpa
Engine Power/Speed26KW    3600r/min

 air pressure hydraulic mountain quarrying hard rock DTH drilling rig
