- Applicable Industries:
- Energy & Mining, Drill hole
- Condition:
- New
- Type:
- Rotary Drilling Rig
- Power Type:
- Diesel
- Place of Origin:
- Shandong, China
- Brand Name:
- Hengwang
- Usage:
- Water Well
- Voltage:
- 380V
- Dimension(L*W*H):
- 4900mm*2000mm*2200mm
- Weight:
- 3800kg
- Certification:
- ISOCCC
- Warranty:
- 2 Years
- After-sales Service Provided:
- Video technical support, Free spare parts, Online support, Field installation, commissioning and training, Field maintenance and repair service
- Name::
- Separated DTH Surface Drill Rig
- Drilling diameter:
- 90-110mm
- Drill rod length:
- 3m
- Drill pipe diameter:
- 60mm
- Engine:
- Yuchai Diesel Engine or electric motor
- Gradeability:
- 25°
- Tramming speed:
- MAX. 2.5km/h
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 490X200X220 cm
- Single gross weight:
- 4000.0 kg
- Package Type:

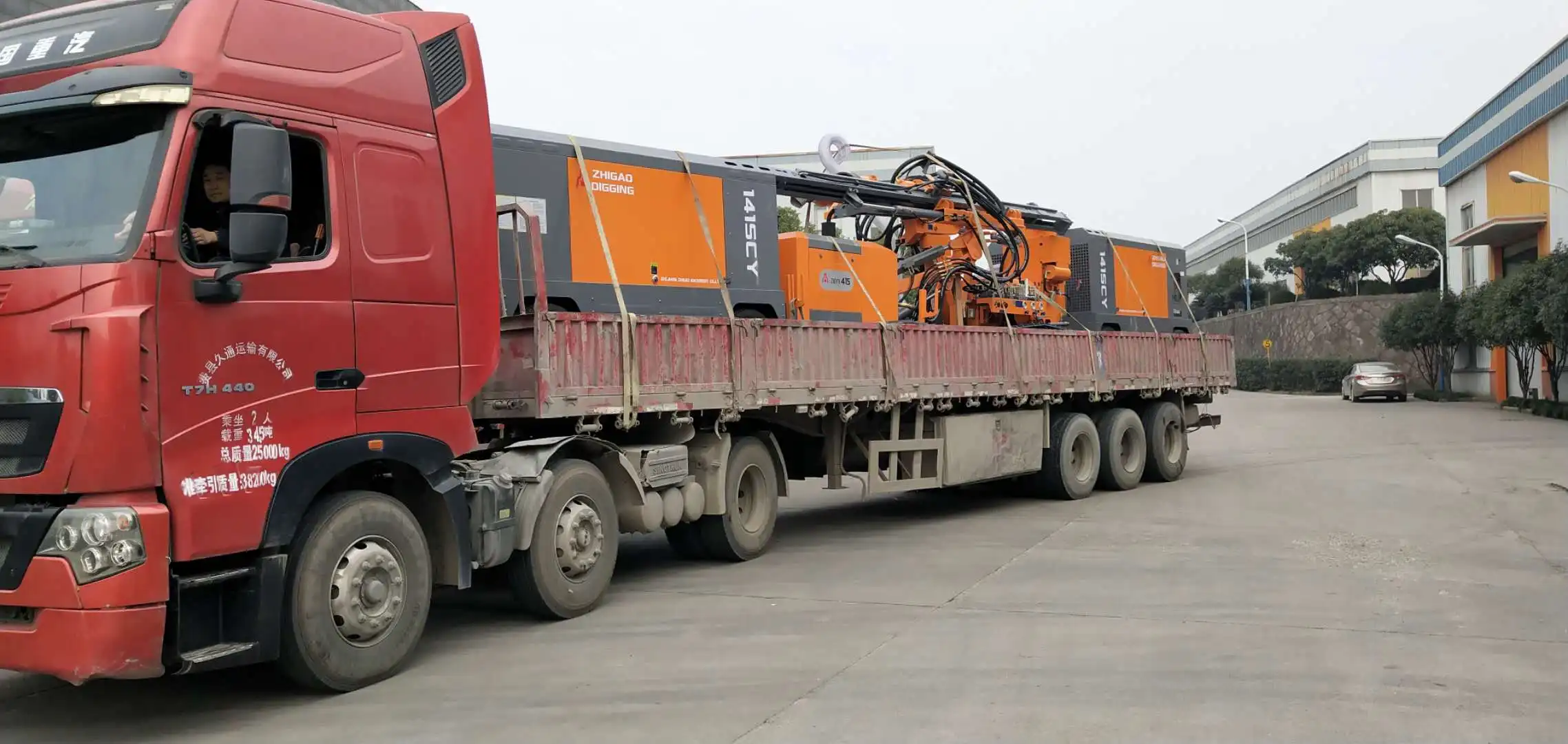

- Export standard package Blasting hole Mine Drill Equipment Separated DTH Surface Drill Rig
- Picture Example:
![package-img]()
- Lead Time:
Quantity(Unit) 1 - 2 3 - 5 >5 Est. Time(days) 14 21 To be negotiated
Product Feature Blasting hole Mine Drill Equipment Separated DTH Surface Drill Rig
Drill rig upgrades the operation platform, tramming components, hydraulic system feed beam and rotary head from the orignal to optimize the functional capability of the drill rig.
Piston tramming motor greatly increase the work life of tramming mechanism. Upgraded operation platform can be controlled by one operator instead of two, to increase the work efficiency while lowering drilling cost.
Model: HW4100
Drill pipe and length: Standard Φ60mm x 2m
Hole range: Φ90-110mm
Rotation torque: Max. 1650N.m
Rotation speed: 0-120 r/min
Feed force: 15KN Pull up force: 25KN
Feed type: Chain/cylinder
Total weight: 3800kg
Machine size: 4900mm*2000mm*2200mm
Model: HW4150
Drill pipe and length: Standard Φ60mm x 3m or 76mmx3m
Hole range: Φ90-115mm
Rotation torque: Max. 1850N.m
Rotation speed: 0-110 r/min
Feed force: 15KN Pull up force: 25KN
Feed type: Chain/cylinder
Total weight: 4500kg
Machine size: 5500mm*2000mm*2100mm
Model: HW4200
Drill pipe and length: Standard Φ68mm x 3m or 76mmx3m
Hole range: Φ90-140mm
Drill hole depth: Max. 30m
Rotation torque: Max. 2050 N.m
Rotation speed: 0-80 r/min
Tramming speed: 3 Km/h
Feed type: Chain/cylinder
Total weight: 5500kg
Machine size: 5100mm*2260mm*2550mm
Model: HW4250
Drill pipe and length: 76mmx3m
Hole range: Φ105-152mm
Drill hole depth: Max. 30m
Rotation torque: Max. 3500 N.m
Rotation speed: 0-100 r/min
Tramming speed: 2.5 Km/h
Feed type: Chain/cylinder
Total weight: 6000kg
Machine size: 7000mm*2250mm*2700mm
Model: HW4300
Drill pipe and length: 76mm x 3m
Hole range: Φ90-152mm
Drill hole depth: Max. 30m
Rotation torque: 2350 N.m/5500 N.m
Rotation speed: 0-80 r/min
Tramming speed: 3 Km/h
Feed type: Chain/cylinder
Total weight: 6500kg
Machine size: 7370mm*2360mm*2560mm
Following is Multi-angle drilling for reference:
Pls Pay Attention:
Note: Air compressor selection subject to hole diameter and air hose length
Recommended Air Compressors:
As to ZGYX-410F Mine Drill Equipment Separated DTH Surface Drill Rig,
.1. Diesel portable screw compressor: 110SCY-10 (best fuel saving) or 110SCY-14.5
.2. Electric portable screw compressor: 75SDY-14.5 , 90SDY-14.5
Diesel engine Specifications for ZGYX-410F Mine Drill Equipment Separated DTH Surface Drill Rig:
Motor
With larger displacement single motor, compact size & large rotation torque, the rotary head adjustable according to different work conditions and requirement, greatly increasing drilling efficiency.
Operation platform
All controls integrated on the control panel for convenient operation, higher work efficiency and lower drilling cost, safer and more comfortable operation.
Crawler
Piston tramming motor, special process casted track shoe for stronger tramming traction force and longer service life, lowering down machine maintenance cost.
Dust collection system
Optional Zhigao own developed dust collection system with high efficiency & eco-friendly.
