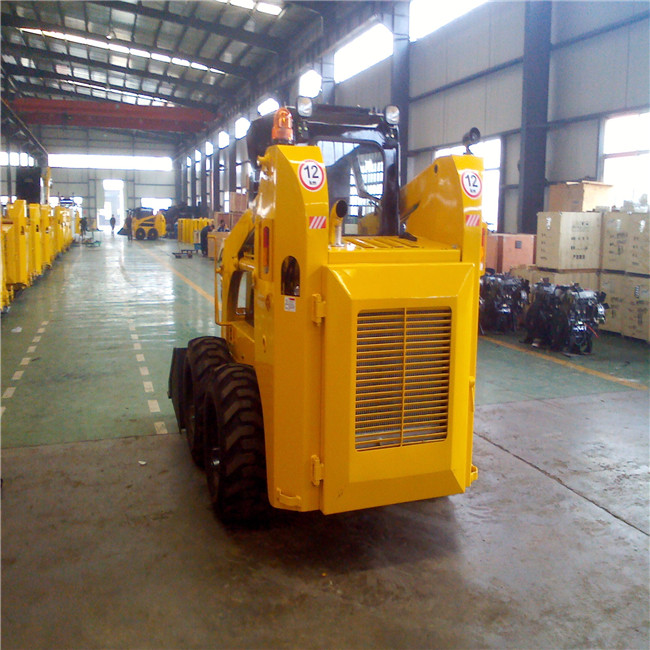

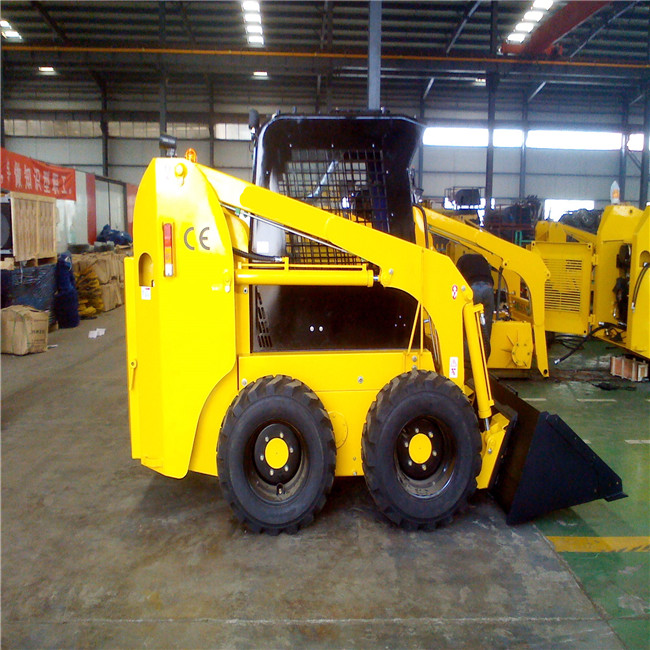

Mini Skid Steer Loader For Sale,Electric Skid Steer Loader

Click on the image to view the original image

Product：	views：8Mini Skid Steer Loader For Sale,Electric Skid Steer Loader
Branch：	HENG WANG
Type：	Skid Steer Loader
Size：	65X50X50 cm
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-11-19 22:06

Product Details

Overview

Quick Details

Dimension(Long * Breadth * High):: 3350*1720*2050mm

Warranty:: 2 Years

After-sales Service Provided:: Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support, Free spare parts

Applicable Industries:: Building Material Shops, Manufacturing Plant, Construction works , Energy & Mining

Condition:: New

Brand Name:: HENG WANG

Place of Origin:: Shandong, China

Type:: Skid Steer Loader

Moving Type:: Crawler Loader

Hydraulic Cylinder Brand:: Liyuan

Hydraulic Pump Brand:: Parker

Hydraulic Valve Brand:: HYDAC

Engine Brand:: CHANGCHAI

UNIQUE SELLING POINT:: High load Moment

Power(W):: 38kw

Product name:: Mini Skid Steer Loader For Sale,Electric Skid Steer Loader

Engine:: Diesel Engine

Bucket capacity:: 0.5m3

Rated Power:: 42KW

Load capacity:: 700kg

Operating weight:: 3000kg

Attachments:: asyourneeds

Application:: Farm Machinery

Engine power:: 51hp

Packaging & Delivery

Selling Units:: Single item

Single package size:: 65X50X50 cm

Single gross weight:: 65.0 kg

Lead Time:

Quantity(Set)	1 - 1	>1
Est. Time(days)	7	To be negotiated

Product Description

Support for customized services, including but not limited to:

Arc lift / Vertical lift
Higher flow system: 140L/min ,3T rated capacity
Heavier type, overall weight more than 4T
Bucket balanced type during lifting
Compact type, high passability
Longer arms, higher unloading height
Crawler type
Remote control type

HW-HS70

	HW-HS70
Specifications
Rated operating capacity(kg)	700
Tipping load(kg)	1400
Bucket capacity(m³)	0.4-0.5
Operating weight(kg)	3000
Max. travel speed(km/h)	12
Hydraulic pump flow(L/min)	75
Fuel tank capacity(L)	70
Tires	10/16.5NHS
Overall dimensions(mm)	3350×1720×2050
Dimensions
Height at maximum extension(mm)	3980
Height to bucket hinge pin(mm)	3080
Width with bucket(mm)	1730
Track width(mm)	1450
Wheelbase(mm)	991
Ground clearance(mm)	180
Dump angle	30°
Dumping height(mm)	2380
Rollback at ground	26°
Angle of departure	20°
Engine
Maker/Model	Xinchai490
Net power	51hp/2500rpm
Type	4 Cylinder in-line, Water cooled, 4 stroke, Diesel engine
Displacement(L)	2.7
Standard
Deluxe enclosed operator cab
Hand control system(Mechanical type)
Standard bucket
Auxiliary hydraulic couplers
Optional
	Preheat starting assist system for extreme cold weather
	Cab fitted with a heater as standard
	Air conditioner

HW-HS80

	HW-HS80
Specifications
Rated operating capacity(kg)	850
Tipping load(kg)	1700
Bucket capacity(m³)	0.45-0.5
Operating weight(kg)	3300
Max. travel speed(km/h)	12
Hydraulic pump flow(L/min)
Fuel tank capacity(L)	90
Tires	12/16.5NHS
Overall dimensions(mm)	3490×1820×2150
Dimensions
Height at maximum extension(mm)	4000
Height to bucket hinge pin(mm)	3100
Width with bucket(mm)	1830
Track width(mm)	1500
Wheelbase(mm)	1085
Ground clearance(mm)	200
Dump angle	30°
Dumping height(mm)	2400
Rollback at ground	26°
Angle of departure	20°
Engine
Maker/Model	xinchai 498
Net power	61.2hp/2500rpm
Type	4 Cylinder in-line, Water cooled, 4 stroke, Diesel engine
Displacement(L)	3.2
Standard
Deluxe enclosed operator cab
Hand control system(Mechanical type)
Standard bucket
Auxiliary hydraulic couplers
Optional
Preheat starting assist system for extreme cold weather
Cab fitted with a heater as standard
Air conditioner

HW-HX80

	HW-HX80
Specifications
Rated operating capacity(kg)	850
Tipping load(kg)	1700
Bucket capacity(m³)	0.45-0.5
Operationg weight(kg)	3300
Max. travel speed(km/h)	12
Hydraulic pump flow(L/min)
Fuel tank capacity(L)	90
Tires	12/16.5NHS
Overall dimensions(mm)	3490×1820×2150
Dimensions
Height at maximum extension(mm)	4000
Height to bucket hinge pin(mm)	3100
Width with bucket(mm)	1830
Track width(mm)	1500
Wheelbase(mm)	1085
Ground clearance(mm)	200
Dump angle	30°
Dumping height(mm)	2400
Rollback at ground	26°
Angle of departure	20°
Engine
Maker/Model	xinchai498
Net power	61.2hp/2500rpm
Type	4 Cylinder in-line, Water cooled, 4 stroke, Diesel engine
Displacement(L)	3.2
Standard
Deluxe enclosed operator cab
Hydraulic joystick controls
Standard bucket
Auxiliary hydraulic couplers
Optional
Preheat starting assist system for extreme cold weather
Cab fitted with a heater as standard
Air conditioner

HW-HX85

	HW-HX85
Specifications
Rated operating capacity(kg)	950
Tipping load(kg)	1900
Bucket capacity(m³)	0.5-0.6
Operationg weight(kg)	3400
Max. travel speed(km/h)	12
Hydraulic pump flow(L/min)	75
Fuel tank capacity(L)	90
Tires	12/16.5NHS
Overall dimensions(mm)	3490×1820×2150
Dimensions
Height at maximum extension(mm)	4070
Height to bucket hinge pin(mm)	3100
Width with bucket(mm)	1880
Track width(mm)	1500
Wheelbase(mm)	1085
Ground clearance(mm)	200
Dump angle	30°
Dumping height(mm)	2450
Rollback at ground	26°
Angle of departure	20°
Engine
Maker/Model	xinchai 498T
Net power	75hp/2500rpm
Type	4 Cylinder in-line, Water cooled, 4 stroke, Diesel engine
Displacement(L)	3.2
Standard
Deluxe enclosed operator cab
Hydraulic joystick controls
Standard bucket
Auxiliary hydraulic couplers
Optional
	Preheat starting assist system for extreme cold weather
Cab fitted with a heater as standard
Air conditioner

HW-HX95

	HW-HX95
Specifications
Rated operating capacity(kg)	1050
Tipping load(kg)	2100
Bucket capacity(m³)	0.55-0.6
Operationg weight(kg)	3500
Max. travel speed(km/h)	12
Hydraulic pump flow(L/min)	75/125
Fuel tank capacity(L)	60/90
Tires	12/16.5NHS
Overall dimensions(mm)	3560×1900×2050
Dimensions
Height at maximum extension(mm)	4070
Height to bucket hinge pin(mm)	3150
Width with bucket(mm)	1900
Track width(mm)	1500
Wheelbase(mm)	1185
Ground clearance(mm)	260
Dump angle	40°
Dumping height(mm)	2450
Maximum reach(mm)	710
Rollback at ground	26°
Angle of departure	20°
Engine
Maker/Model	xinchai498T
Net power	75hp/2500rpm
Type	4Cylinder in-line, Water cooled, 4 stroke, Diesel engine
Displacement(L)	3.3
Standard
Standard bucket
Enclosed operator cab
Hydraulic joystick controls
Auxiliary hydraulic couplers
Optional
Preheat starting assist system for extreme cold weather
High-flow hydraulic system
Cab fitted with a heater as standard
Air conditioner

O��F�L

HW-HS70

	HW-HS70
Specifications
Rated operating capacity(kg)	700
Tipping load(kg)	1400
Bucket capacity(m³)	0.4-0.5
Operating weight(kg)	3000
Max. travel speed(km/h)	12
Hydraulic pump flow(L/min)	75
Fuel tank capacity(L)	70
Tires	10/16.5NHS
Overall dimensions(mm)	3350×1720×2050
Dimensions
Height at maximum extension(mm)	3980
Height to bucket hinge pin(mm)	3080
Width with bucket(mm)	1730
Track width(mm)	1450
Wheelbase(mm)	991
Ground clearance(mm)	180
Dump angle	30°
Dumping height(mm)	2380
Rollback at ground	26°
Angle of departure	20°
Engine
Maker/Model	Xinchai490
Net power	51hp/2500rpm
Type	4 Cylinder in-line, Water cooled, 4 stroke, Diesel engine
Displacement(L)	2.7
Standard
Deluxe enclosed operator cab
Hand control system(Mechanical type)
Standard bucket
Auxiliary hydraulic couplers
Optional
	Preheat starting assist system for extreme cold weather
	Cab fitted with a heater as standard
	Air conditioner

HW-HS80

	HW-HS80
Specifications
Rated operating capacity(kg)	850
Tipping load(kg)	1700
Bucket capacity(m³)	0.45-0.5
Operating weight(kg)	3300
Max. travel speed(km/h)	12
Hydraulic pump flow(L/min)
Fuel tank capacity(L)	90
Tires	12/16.5NHS
Overall dimensions(mm)	3490×1820×2150
Dimensions
Height at maximum extension(mm)	4000
Height to bucket hinge pin(mm)	3100
Width with bucket(mm)	1830
Track width(mm)	1500
Wheelbase(mm)	1085
Ground clearance(mm)	200
Dump angle	30°
Dumping height(mm)	2400
Rollback at ground	26°
Angle of departure	20°
Engine
Maker/Model	xinchai 498
Net power	61.2hp/2500rpm
Type	4 Cylinder in-line, Water cooled, 4 stroke, Diesel engine
Displacement(L)	3.2
Standard
Deluxe enclosed operator cab
Hand control system(Mechanical type)
Standard bucket
Auxiliary hydraulic couplers
Optional
Preheat starting assist system for extreme cold weather
Cab fitted with a heater as standard
Air conditioner

HW-HX80

	HW-HX80
Specifications
Rated operating capacity(kg)	850
Tipping load(kg)	1700
Bucket capacity(m³)	0.45-0.5
Operationg weight(kg)	3300
Max. travel speed(km/h)	12
Hydraulic pump flow(L/min)
Fuel tank capacity(L)	90
Tires	12/16.5NHS
Overall dimensions(mm)	3490×1820×2150
Dimensions
Height at maximum extension(mm)	4000
Height to bucket hinge pin(mm)	3100
Width with bucket(mm)	1830
Track width(mm)	1500
Wheelbase(mm)	1085
Ground clearance(mm)	200
Dump angle	30°
Dumping height(mm)	2400
Rollback at ground	26°
Angle of departure	20°
Engine
Maker/Model	xinchai498
Net power	61.2hp/2500rpm
Type	4 Cylinder in-line, Water cooled, 4 stroke, Diesel engine
Displacement(L)	3.2
Standard
Deluxe enclosed operator cab
Hydraulic joystick controls
Standard bucket
Auxiliary hydraulic couplers
Optional
Preheat starting assist system for extreme cold weather
Cab fitted with a heater as standard
Air conditioner

HW-HX85

	HW-HX85
Specifications
Rated operating capacity(kg)	950
Tipping load(kg)	1900
Bucket capacity(m³)	0.5-0.6
Operationg weight(kg)	3400
Max. travel speed(km/h)	12
Hydraulic pump flow(L/min)	75
Fuel tank capacity(L)	90
Tires	12/16.5NHS
Overall dimensions(mm)	3490×1820×2150
Dimensions
Height at maximum extension(mm)	4070
Height to bucket hinge pin(mm)	3100
Width with bucket(mm)	1880
Track width(mm)	1500
Wheelbase(mm)	1085
Ground clearance(mm)	200
Dump angle	30°
Dumping height(mm)	2450
Rollback at ground	26°
Angle of departure	20°
Engine
Maker/Model	xinchai 498T
Net power	75hp/2500rpm
Type	4 Cylinder in-line, Water cooled, 4 stroke, Diesel engine
Displacement(L)	3.2
Standard
Deluxe enclosed operator cab
Hydraulic joystick controls
Standard bucket
Auxiliary hydraulic couplers
Optional
	Preheat starting assist system for extreme cold weather
Cab fitted with a heater as standard
Air conditioner

HW-HX95

	HW-HX95
Specifications
Rated operating capacity(kg)	1050
Tipping load(kg)	2100
Bucket capacity(m³)	0.55-0.6
Operationg weight(kg)	3500
Max. travel speed(km/h)	12
Hydraulic pump flow(L/min)	75/125
Fuel tank capacity(L)	60/90
Tires	12/16.5NHS
Overall dimensions(mm)	3560×1900×2050
Dimensions
Height at maximum extension(mm)	4070
Height to bucket hinge pin(mm)	3150
Width with bucket(mm)	1900
Track width(mm)	1500
Wheelbase(mm)	1185
Ground clearance(mm)	260
Dump angle	40°
Dumping height(mm)	2450
Maximum reach(mm)	710
Rollback at ground	26°
Angle of departure	20°
Engine
Maker/Model	xinchai498T
Net power	75hp/2500rpm
Type	4Cylinder in-line, Water cooled, 4 stroke, Diesel engine
Displacement(L)	3.3
Standard
Standard bucket
Enclosed operator cab
Hydraulic joystick controls
Auxiliary hydraulic couplers
Optional
Preheat starting assist system for extreme cold weather
High-flow hydraulic system
Cab fitted with a heater as standard
Air conditioner
