solar panel LED street light
Specifications:
| PRODUCT NAME | Solar Pathway Light |
| Model | JR-550 |
| Qty | 10sets |
| SPECIFICATION | |
| Solar Panel | 60W, mono or poly crystalline solar panel. |
| Light Source | 16W High Power LEDs |
| Pole | 4.3M high steel pole with hot galvanized and paint finish |
| Controller | Intelligient solar charge controller |
| Battery | 12V65Ah, Maintanence free Lead Acid battery |
| Accessories | Waterproof battery box, brackets, wires, fastening pieces, foundation kits |
| Working Time | 10-12 hours/day, 3~5 hrs" backups for overcast sky days, dim brightness is availabe |
| 5 hours @ 100% brightness, 5 hours @ 50% brightness | |
| STANDARD FEATURES | |
| Solar Panel | 10 years performance guarantee on 90%, 25 years performance guarantee on 80% |
| Light Source | Up to 50,000 hours long life time, 3 years warranty |
| Pole | Up to 25 years long life time, 15 years warranty |
| Controller | dusk until dawn operation or timed ON/OFF operation, 3 years warranty |
| Battery | maximum life of up to 5~8 years, 3 years warranty |
| PACKING | 1) standard carton boxes. |
| 2) Brackets & poles are packed with air bulb film or polywoven film & wool packaging felt. | |

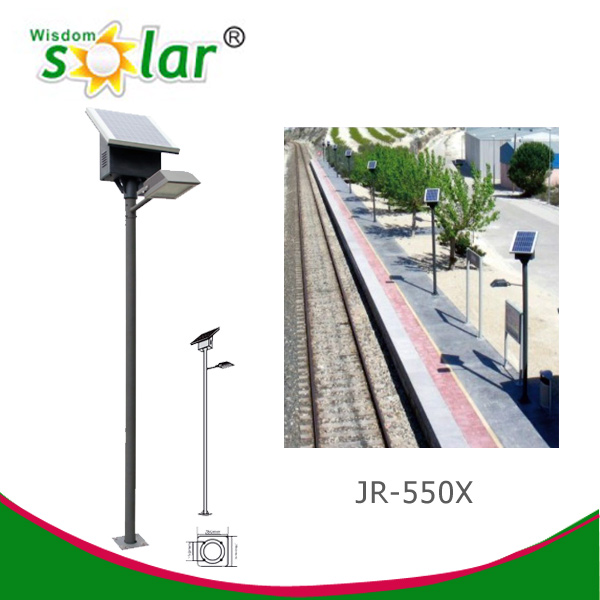

this model related installation pictures:
Specification of solar panel LEDstreet light
HS Code: 9405409000
Dim brightness is available:
1) 10 hours 100% brightness
2) 5 hours @100% brightness, 5 hours @ 50% brightness
3) other as client"s request
Light Source: 16W high power LED
Protection Level: IP65
CRI: More Than 80
Luminous Flux: 100-110 Lm/W
Color Temperature: 2700-6500K
Warranty: 3 years
Operation Temperature Range: -25--+60
Installation Distance: 15-20m
Packing ( separated packig to save space trucking and transport cost):
1) Standard carton boxes
2) Brackets & poles are packed with air bulb film or poly woven film
Additional Info.
Solar Panel: 10 years performance guarantee on 90%, 25 years performance guarantee on 80%
Battery: Maximum life up to 5--8 years, 3 years warranty
Production Capacity: 2,000 PCS/Month
Place of Origin: Zhongshan,Shenzhen,Guangdong China( Mainland)
Brand Name: Wisdomsolar
Export Markets: Global
Accessories: Waterproof battery box, brackets, wires, fastening pieces, foundation kits
Advantages:
100% solar powered, No wiring, Easy installation, Save Money,Energy and human resources, Maintenance free,Easily moved to another desired location
Applications:
City roads, residential quarters, parks, tourist attractions, plaza, outdoor terrace, garden villas, green square, tourist attractions, resorts, golf courses, corporate factory green lighting and landscaping, a small residential
Trade Terms:
1. Payment: T/T, 30% deposits before production, 70% balance to be paid before deliverying
2. Production lead time for 100~500PCS: 7-15days, 500~1000PCS: 15-20days
3. Sample can be delivered in 7days
4. Shipping freight are quoted under your requests
5. Shipping port: Zhongshan, Mainland China
6. Discounts are offered based on order quantities
Our Service:
1. Your inquiry related to our products or prices will be replied in 24hrs.
2. Well-trained and experienced staffs to answer all your enquires in fluent English
3. OEM, any your customized lightings we can help you to design and put into product.
4. Distributor are offered for your unique design and some our current models
5. Protection of your sales area, ideas of design and all your private information
Cautions:
Switch off the electricity before replacing the bulb.
If any doubt about the installation or use of this product, consult a competent electrician.

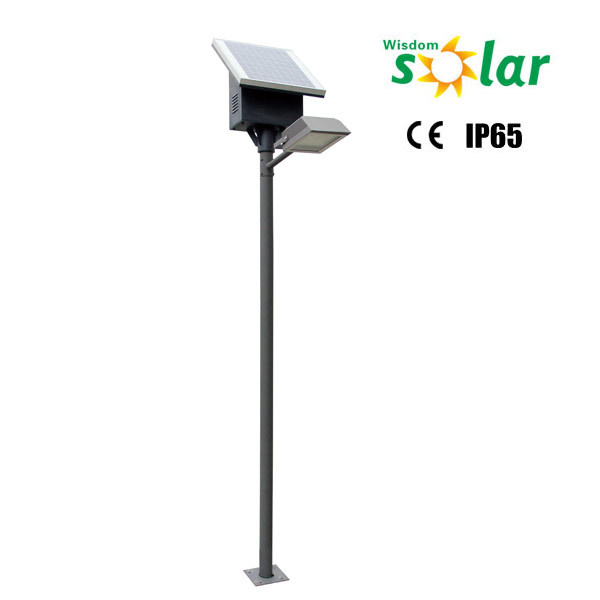

Solar panel led street light picturs:
