JR-180W Solar power systems
1.FUNCTIONS
a,Digital display screen which make output power and voltage visible, malfunction can be detected, embeded USB switch can charge mobile,MP3 and some other digital appliance.
b,With no fuel consumption, no co emission, no air pollution.
c,Special characteristics make the system can be uesd for everywhere once there are sunshine, no limitation for geographic,altitude and other factors.
d,Microprocessor intelligent controller functioned with temperature-compensation, protection for over-
charge,under-voltage, short circuit,over-heat,over-load and alarming for malfunction enable system safe and easy handle.
e,220V AC/12VDC pure sine wave inverter with low distortion of output wave( less than 2% ),various of loads available ,
f,Installation easy and maintenance free
g,More than 20years lifespan for solar panel and 10years for the maintenance free Lead-Acid battery
h,Simple structure of solar panel makes installation and transporation easy.
l,System can be make into different power by add or reduce the power of battery and solar panel
j,Customized for different needed.
2.Application
For home: Lamps(LED,CFL,etc) ,TV/ fans/video/charger/MP3,MP4/audio/PSP/CD ROM
For office: Computer/printer/copier/scanner/screen/fax.
For kitchen:Microwave /fridge freezer /refrigerator/coffee machine/blender/baker etc.
For hardware tools:Drill/Air compressor/mill,etc

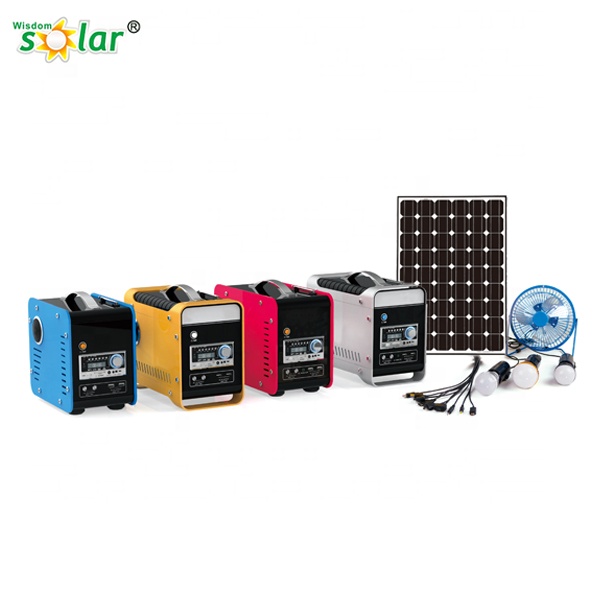

3.Components
1 pcs 90W solar panel(with 10M wires)

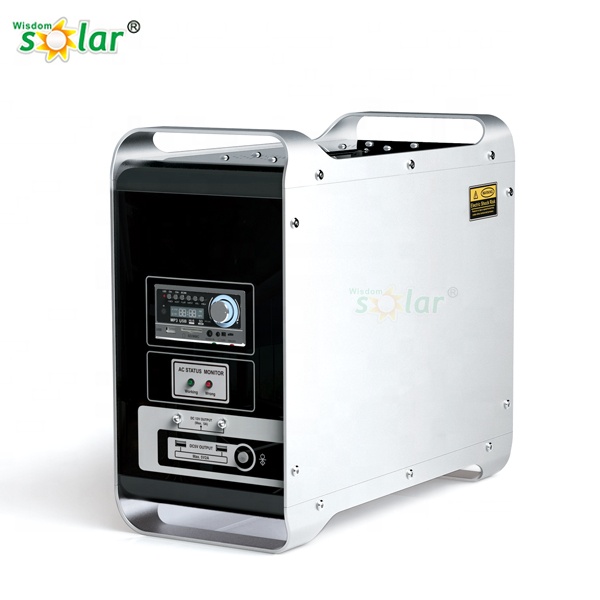

1 pcs main box.
solar panel installation support bracket
with Europe and Asia socket design suit to all countries in the world.
digital display screen let you know input and output current.
4.Instruction
When you wants to use the solar kit:
1. Take out the main box from packing,put on the ground.Connect solar panel with main box , put solar panel in a safe place where rich in sunshine.Connect the appliance with main box,such as TV,Fan,lights
2. Turn on the general power on the main box.Then press WORK MODE button,then the forth indication LED should be yellow,then press the swith of each light,then the light can working normally.If you wants turn off the light,you just need press the switch of each light.
5.Performance
During the day the solar panel converts sunlight into electricity which is then stored in the rechargeable battery pack.At light,the light consume the energy which stored in battery.
The working time of the light depends on the charging og the battery and this is affected by the season of the year.Solar Panel do not receive as much direct sunlight in winter months.Therefore,the number of hours the light stays on will be reduced during winter.
If your area meet rainly season,the solar panel can not charge by sun,then you can use 220V to charge the system.
