Specifications
Low price and good performance, we made over 20 this machine which exported to Lebanon,Saudi Arabia, Mexico,Algeria etc country
1. Machine working way:

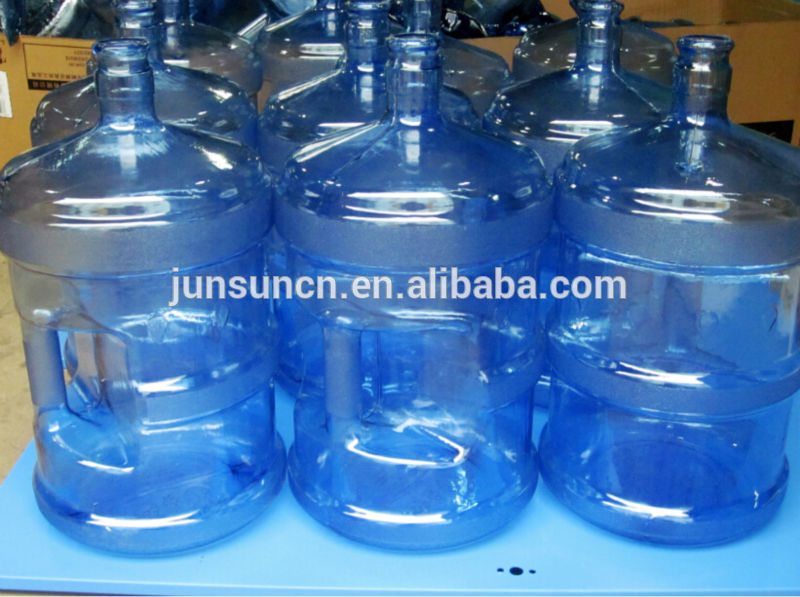

It is extrusion type blow molding machine which directly use PC raw material( PC granules), then you can get the 5 gallon PC bucket directly,No need preform. Please check following process:
2. General introduction

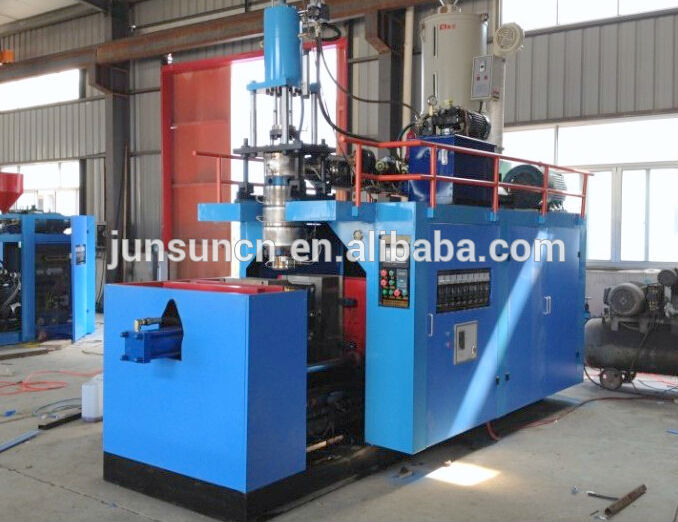

JS-5G-PC 5gallon bottle making machine is hydraulic, automatic hollow plastic molding machine with accumulator die head and the die head adopts German technology. It is special for producing 5 gallon PC water barrel and it is also suitable for producingPC, PP, PE etc and other materials hollow plastic containers in all shapes from 10 L to 30 L. The transparence of PC 5 gallon barrel is very good. This machine is widely used in such fields: chemical industry, petroleum, medicine, commodity, cosmetic, foods, lighting, tool, auto, motorcycle, shoemaking, toys and so on. It can produce plastic bucket, chemical drum, auto parts (water box, oil box, air-condition wind pipeline and empennage), tool boxes and bags, dust collector tube, chairs for bus and gymnasium, etc. Fully automatic process with low investment, high efficiency, quick and safe operation, easy for trouble shooting, maintenance and other benefit. For its good quality and our perfect service, it’s your best choice to use it.
3. General introduction
1. Control Unit: Japan Mitsubishi PLC programmable controller and Xinje touch panel. English parameter process setting, state monitoring and products counting are convenient and intuitionistic. PLC automatic temperature control model.
2. Hydraulic Unit: It adopts international famous Taiwan AIRTAC brand hydraulic valve and seal, proportional control. And has features of high stationarity and reliability, accurate operation, long longevity, quick response and so on.
3. Extrusion Unit: Hard gear surface decelerator; famous EURA inverter adopts Italian technology; Screw speed regulation adopts variable-frequency speed regulation control system. It has the features of stable rotate speed, powerful power, energy-saving and so on. Mixing screw has wide applicability to raw materials and the plasticization quality is even better. Energy-saving machine barrel and A-alloy heaters are adopted for heating
4. Die Head Unit: With single cylinder material-center-in accumulator head, is smooth and dependable. This die head adopts German technology and is made by special imported steel. The volume is 4L and the pc capacity is 2kg.
5. Clamping Unit: Single cylinder double sliding tramroad, fast and balanced; four mould boards, high precision linearity leaders, single hydraulic cylinder double bidirectional open-closing mould.
6. Parison Programmer: 30 points Wall-thickness controller is is equipped.
7. Blow Fitting Unit: Down blowing fitting is equipped.
8. Electrical Components: All of the electrical components are made in Japan and Taiwan.
9. Lifter Unit: Four turbine reducer liter, lifting balance, quick, stable.
4. Technical features
