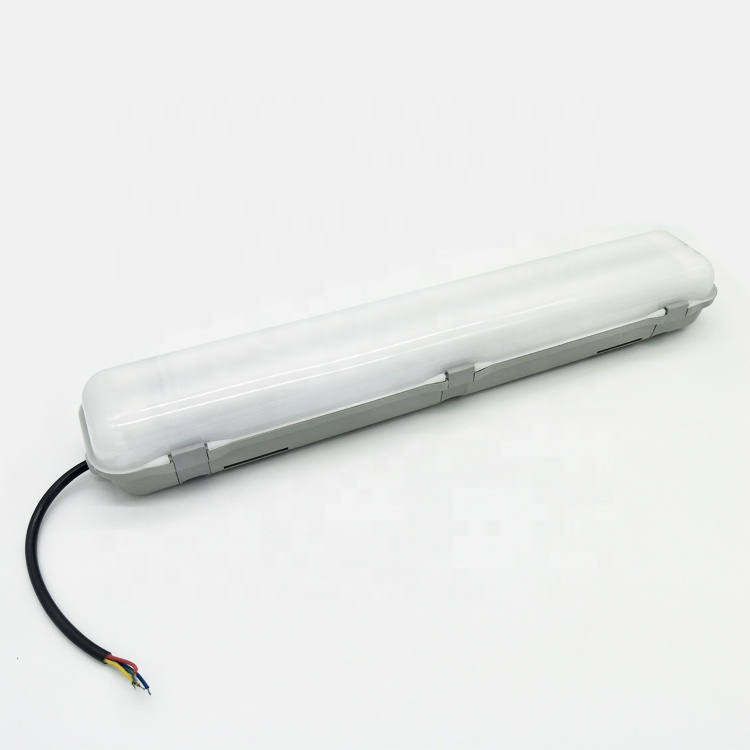

Maintained waterproof led emergency light 220v
led tube emergency bulkhead are the ideal replacement for fluorescent fixtures in harsh environments.
It’s durable construction makes this series vandal resistant, high impact resistant, and IP65 water and dust proof.
The vapor tight series is built with long life LED’s providing superior quantity and quality for the over 50,000 hour life span.
Emergency and motion sensor is optional.
| Product information |
Specification:
Standard Version: | |
LED Driver output voltage | DC 220V |
LED Driver output current | 1200mA ±10mA |
Flux luminous | 4800Lm |
Luminous efficacy | 105Lm/W |
View angle | 110° |
Housing material | PC base and Opal PC diffuser |
IP Rating | IP 65 |
Life Span | Up to 36,000 hours |
Operation temperature | -10 deg C to 40 deg C |
Dimension | 665 x 125 x 90 mm |
Package | 750x140x100mm |
Net Weight | 2.7 kg (approx) |
| |
Emergency Version: | |
Type | Maintained |
Battery(High-Temperature) | 11.1V 4.0AH Li-ion rechargeable |
Emergency output | 100% nominal power |
Emergency duration | >2 Hours |
Charge time | < 18Hours |
LED indication | Red: charging; Green: fully charged; Yellow: battery fault or disconnected |
Test button | AC power on: Push and hold the button to enter emergency mode; release button to come back AC power mode |
|
|
Sensor Version: |
|
Sensor Range |
180 degree; 0.5~8m (adjustable) |
Sensing Interval |
10s to 5min max (adjustable) |
Sensing Interval Output |
100% of nominal power |
Product Features
LED lighting source, green and energy saving;
IP65, available for outdoor use;
PC base and Opal PC diffuser;
3 hours emergency (option available);
c/w M20 x 1.5 IP65 Gland;
Microwave/ Motion sensor;
--Automatic dims when detected area is unattended
--Adjustable range (1-8m)
Anti-glare design: against from the dizzy light;
No UV, no infrared, no other Hazardous Substances;
No noise, no flicker, resistance from vibration;
CE&ROHS compliant;
2~5 years warranty.
Microwave sensor function optional
With 5.8G Hz microwave technology, stable detection performance and long lifetime
Detection zone Max. is 16m*8m (D*H) <dimming function>, 12m*6m(D*H)<ON-OFF function>
Stand-by dimming level in 10% / 20% / 30% / 40% / 50%
Stand-by period has 5s / 5min / 10min / 30min / 1h / Disable
Waterproof sensor with IP65 rating
Built-in adjustable daylight sensor
Automatic dimming when used in combination with 1-10V dimmable control gears
Emergency function optional
Automatically activates, Provides immediate light in event of power outage.
Emergency wattage: Max28W
Emergency hour: 1 hr / 2 hrs / 3 hrs
