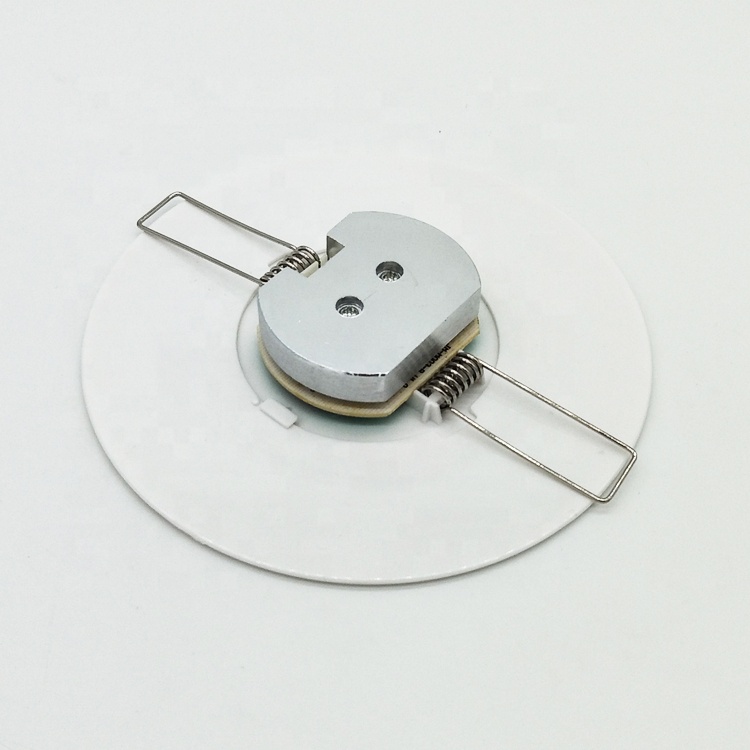

Recessed led down light with emergency backup battery
| Product information |
Specification:
Model No. A3LEDEM
Supply Voltage: 220-240V~50/60Hz
Power Consumption : 3W
Lumen Output : 270lm
Color Temperature: 6000-7000K
CRI: 75
Beam angle : 120°
Operating temp Range : 0°C ~ +40°C
Battery 3.6V/1300mAh Ni-Cad
Discharge Duration >3 hours after minimum 24Hr charge
Safety Classification: Class II, Must be earthed
IP Rating: 20
Overall Diameter: 140mm
Depth: 20mm
Weight: 0.7Kg
Warranty: 2 year
Installation: Recessed
Suitable for mounting on a normally flammable surface
Complies with EN60598-1;EN60598-2-22;EN55015;EN61000-3-2;
EN61000-3-3;EN61547
Features:
CREE LED CHIP with good quality lens .
LED luminous efficiency :95lm/W
Total 3W.
Normal use and emergency use both perfect.
4inch or 6 inch for interchangeable.
Innovative, snap-together design for fast and easy installation
Efficient driver circuit - led rechargeable emergency light
Light up 180 mins of emergency battery power .
Long-life, maintenance-free, rechargeable Lithium battery
Internal solid-state transfer switch automatically connects internal batteries to LED board and LED lamp heads for emergency illumination.
Over charged and Over discharged protection.
CRI> 75
Color rendering : 2700-7000K optional
Life span: 50000hours
Guarantee: 2 years.
Replaces :Emergency lighting fitting /led rechargeable emergency light
Application : Emergency Exit & Stand alone;
Emergency Lights for all indoor areas.
| More information, please click |
| Product display |
More information, please click |
| Hot sale |
| Why choose us |
Emergency Battery backup system It includes emergency inverter and efficient battery pack that can driver led lamp with internal & external LED driver for 30 minutes to 180 minutes during the mains failure. Automatically switch to emergency mode when mains is failure, led indicator indicates normal battery charging, press test button to simulate mains power off. |
| More details, please click |
| Company overview |
| Company information | |
| Tel | +86 ( 757 ) 63247196 |
| Fax | +86 ( 757 ) 81809980 |
| Skype | kevinsmil smiljames |
info@kunsen.com.cn sales@kusen.com.cn | |
| +86 13660080872 | |
| 623518751 | |
| Web | http://www.kunsen.com.cn |
| Add | Building 4, Zone F, New Lighting Source Industry Zone, Luocun,Nanhai, Foshan, Guangdong, China 528200 |
| More details, please click |
| Production process |
Easiest assembly, high efficiency SMT is the most popular technology and process in the electronics assembly industry today. With automation, high efficiency, reliable, strong anti-vibration, solder joint defect rate is low, good high-frequency characteristics. Strict production process, all products have been tested. 100% pass rate. |
| More details, please click |
| FAQ |
What is Emergency Lighting?
Emergency lighting is lighting provided in the event of an emergency situation where a loss of power results in the failure of the normal illumination.
The loss of power to the normal illumination could occur due to fire or a power cut. This could potentially lead to sudden darkness and pose a potential danger to the occupants of the building.
Emergency lighting is required to operate fully automatically and give illumination of a sufficiently high level to enable all occupants to evacuate the premises safely. Most new buildings now have emergency lighting installed during construction; the design and type of equipment being specified by the architect in accordance with current Building Regulations and any local authority requirements.
The British Standard provides the emergency lighting designer with clear guidelines to work to. BS 5266-1: 2011 embraces residential hotels, clubs, hospitals, nursing homes, schools and colleges, licensed premises, offices, museums, shops, multi-storey dwellings, etc.
Although this standard recommends the types and durations of emergency lighting systems relating to each category of premises, it should be remembered that the standards are the minimum safety standards for these types of building and that a higher standard may be required for a particular installation.
Emergency Lighting is a general term which can be split into five main distinctions.
1) Emergency Escape Lighting is the lighting which provides sufficient illumination so that all occupants can evacuate in the event of an emergency situation, or attempt to terminate any potentially dangerous processes before evacuation. Emergency Escape Lighting is part of the fire safety provision of a building and a requirement of The Regulatory Reform (Fire Safety) Order 2005.
2) Standby lighting is lighting which enables normal activities to continue substantially unchanged. We won"t cover standby lighting much more than this, as it is not a legal requirement and is a feature which may or may not be needed, and is dependent on the use of the premises.
3) Escape Route Lighting is lighting which ensures the means of escape can easily be identified.
4) Open Are or Anti-Panic lighting is part of the escape lighting system and provides enough illumination to allow occupants to reach an area where the means of escape can be identified.
5) High-risk Task area lighting is lighting which will provide sufficient illumination so that an operator can terminate a potentially dangerous process or carry out proper shut-down procedures before evacuating the premises.
How many emergency lights do I need?
There is no specific quantity of emergency lights specified. The requirement is that you provide sufficient lighting levels, in the event of a mains failure, for people to safely exit from a building.
Using the relevant standards BS EN 1836/BS 5266-7, the light level requirements for the building can be determined. From that, the type and quantity of luminaries can be determined.
