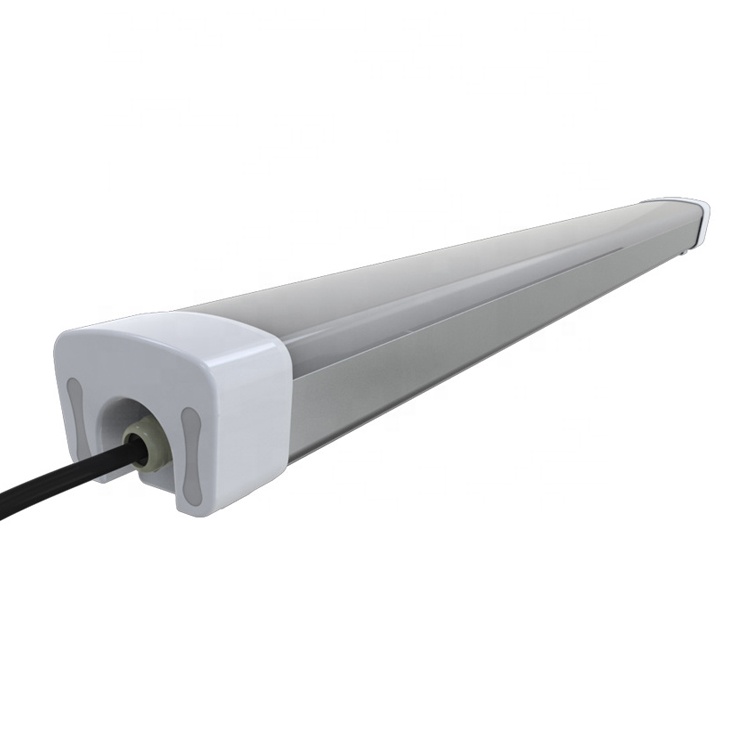

IP65 LED emergency tri-proof light
IP65 led surface mount emergency and motion sensor bulkhead lights

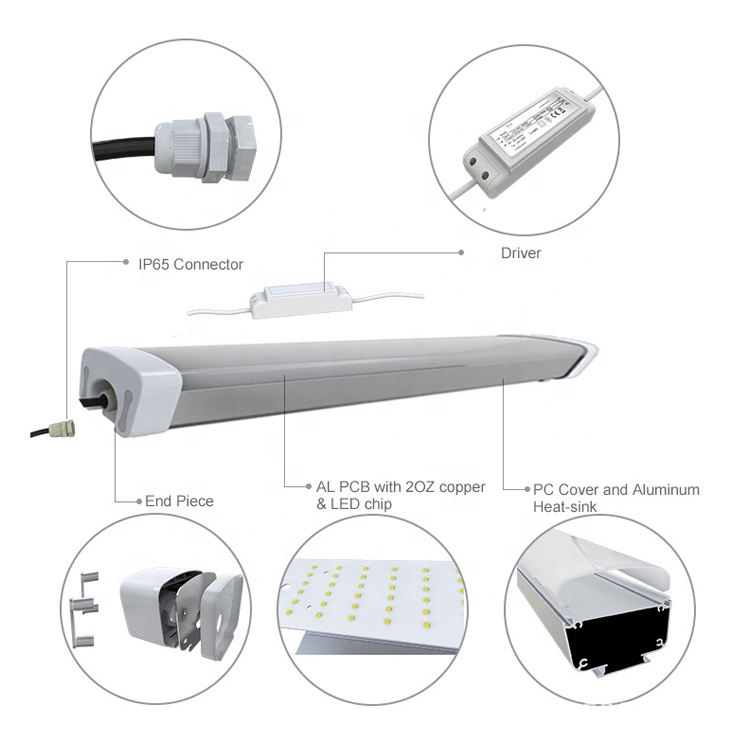

LED Tri-Proof Lights are simple structured and elegant designed, using aluminum profiles to reduce weight. Two sets of installation provide customer convenience, improve light utilization. Get all customers" recognition and acceptance with its functional features.
| Product information |
Specification:
LED Tri-proof Light | 2ft/0.6m-20~30W | 3ft/0.9m-40W | 4ft/1.2m-40~60W | 5ft/1.5m-50~80W |
Dimension(mm) | 600*90*74 mm | 900*90*74 mm | 1200*90*74 mm | 1500*90*74 mm |
Efficiency(lm/W) | 120lm/W | |||
Input voltage(AC/V) | AC 100~277V | |||
Lumen(lm)-TUV/CE | 2400lm~3600lm | 4800lm~5200lm | 4800lm~7200lm | 6000lm~9600lm |
Lumen(lm)-UL | 30W: 3900lm | N/A | 40W: 5200lm | 60W: 7800lm |
LED chips | LM80 SMD2835 | |||
PF | >0.95 | |||
CRI(Ra) | >80 | |||
CCT | 3000-6500k | |||
Beam Angle | 120° | |||
Driver | flicker-free | |||
IP/IK rating | IP66 / IK10 | |||
Certificates | CE, RoHS | |||
Lead time | 7~15 working days for sample order, 15~20 working days for formal order. | |||
Product Features
-- IP66, IK10
-- 6063 Aircraft aluminum & PC cover
-- LM80 SMD2835 LED Chips, High CRI of Ra>80,120lm/w at Milky Cover, Max. 160lm/w
-- No mercury, No UV, No IR, No glare, No flick
-- 3 years warranty
-- Fast and easy installation to replace existing lights
-- Lower maintenance cost thanks to over 3 times longer lifetime
Product Advantages
>>Quick Start instant 100% luminous flux
>>Up to 50% energy saving compared to tradition lights
>>Suitable for 3~8 meters high
>>Free workshop ( freight house/warehouse)
>>Sports center ( gym / tennis court / dressing room)
>>Service area(supermarket / hospital/ subway / tunnel )
>>General illumination within temperatures from >>-20ºC~+45ºC
Microwave sensor function optional
With 5.8G Hz microwave technology, stable detection performance and long lifetime
Detection zone Max. is 16m*8m (D*H) <dimming function>, 12m*6m(D*H)<ON-OFF function>
Stand-by dimming level in 10% / 20% / 30% / 40% / 50%
Stand-by period has 5s / 5min / 10min / 30min / 1h / Disable
Waterproof sensor with IP65 rating
Built-in adjustable daylight sensor
Automatic dimming when used in combination with 1-10V dimmable control gears
Emergency function optional
Automatically activates, Provides immediate light in event of power outage.
Emergency wattage: 10W / 20W / 30W
Emergency hour: 1 hr / 2 hrs / 3 hrs
| More information, please click |
| Product display |
More information, please click |
| Hot sale |
| Why choose us |
Emergency Battery backup system It includes emergency inverter and efficient battery pack that can driver led lamp with internal & external LED driver for 30 minutes to 180 minutes during the mains failure. Automatically switch to emergency mode when mains is failure, led indicator indicates normal battery charging, press test button to simulate mains power off. |
