Guangzhou Kunsen Electronic Co., Ltd.

Industrial LED emergency lights for hotels

Injection-molded thermoplastic ABS housing, Anti UV UL94V-0 flame rating, fire-retardant,
120/277 VAC dual voltage operation, LED indicator light and push button test switch,
Sealed Lead acid battery(6V4.5AH) delivers more than 90 minutes capacity on emergency mode,
Low voltage battery disconnection-preventing deep discharge damage to the battery.

Specification:

LED:2*8pcs Epistar 2835LED

Input:120/277V 50/60HZ

Working Temp:0-50℃

Working humidity:85%

Charging Time:24H

Duration:90  Mins

Lumen:90Lm x2

Power:3.2W

Battery:Ni-cad 3.6V AA900mAh

Injection molded ABS plastic

Body color: white and black optional

Packing:

Carton Size:39.5*26.8*28.7cm
Carton Qty.: 12pcs/Carton
G.W: 7.96KG/Carton
N.W: 6.72KG/Carton

Features:

• Compact, low-profile design

• Universal mounting plate with EZ Quick Connect for fast

installation

• Dual 120V/277V voltage

• Charge rate/power “ON” LED indicator light and push-to-test

switch for mandated code compliance testing

• 3.6V, maintenance-free, rechargeable NiCad battery

• Internal solid-state transfer switch automatically connects

the internal battery to lamp heads for minimum 90-minute

emergency illumination

• Fully automatic solid-state, two-rate charger initiates battery

charging to recharge a discharged battery in 24 hours

• Long-life, ultra bright white LED lamp heads

• 1.6 watt (8 LEDs x 0.2 watt) per head

• High performance, chrome plated metalized reflector and

plastic lens for optimal light distribution

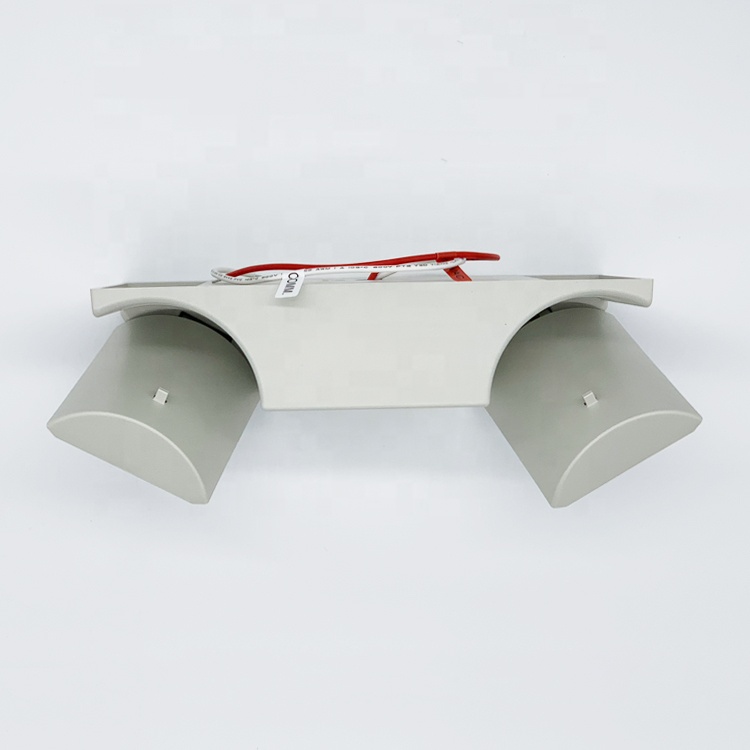

• Two fixed or adjustable LED lamp heads provide optimal

center-to-center spacing

• Injection-molded, engineering-grade, 5VA flame retardant,

high-impact resistant, thermoplastic in white or black finish

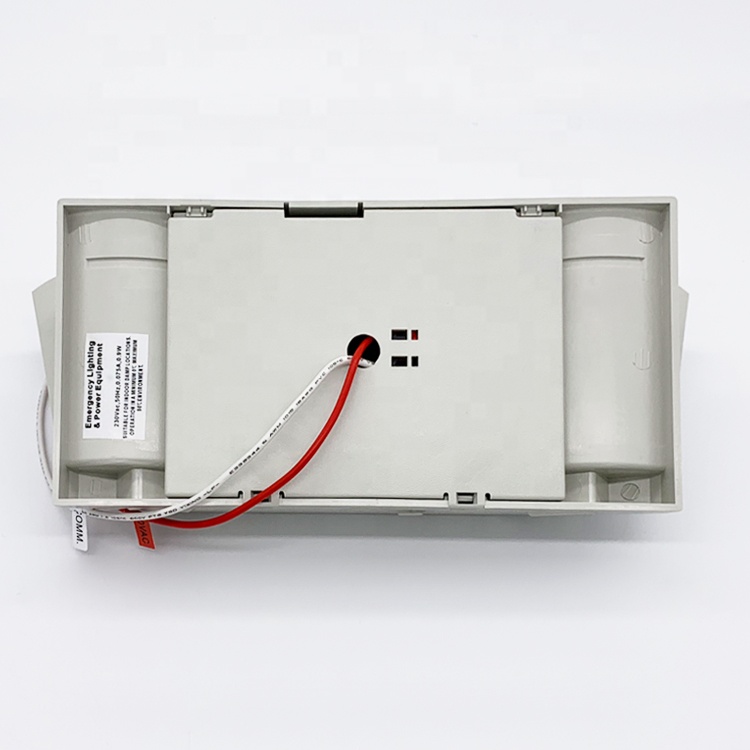

• Surface mount via easy connect back plate, which fits

most standard junction boxes and snaps into place

making internal electrical connections.

• Suitable for wall or ceiling mount

What is Emergency Lighting?

Emergency lighting is lighting provided in the event of an emergency situation where a loss of power results in the failure of the normal illumination.

The loss of power to the normal illumination could occur due to fire or a power cut.  This could potentially lead to sudden darkness and pose a potential danger to the occupants of the building.

Emergency lighting is required to operate fully automatically and give illumination of a sufficiently high level to enable all occupants to evacuate the premises safely. Most new buildings now have emergency lighting installed during construction; the design and type of equipment being specified by the architect in accordance with current Building Regulations and any local authority requirements.

The British Standard provides the emergency lighting designer with clear guidelines to work to. BS 5266-1: 2011 embraces residential hotels, clubs, hospitals, nursing homes, schools and colleges, licensed premises, offices, museums, shops, multi-storey dwellings, etc.

Although this standard recommends the types and durations of emergency lighting systems relating to each category of premises, it should be remembered that the standards are the minimum safety standards for these types of building and that a higher standard may be required for a particular installation.

Emergency Lighting is a general term which can be split into five main distinctions.

1) Emergency Escape Lighting is the lighting which provides sufficient illumination so that all occupants can evacuate in the event of an emergency situation, or attempt to terminate any potentially dangerous processes before evacuation.  Emergency Escape Lighting is part of the fire safety provision of a building and a requirement of The Regulatory Reform (Fire Safety) Order 2005.

2) Standby lighting is lighting which enables normal activities to continue substantially unchanged.  We won"t cover standby lighting much more than this, as it is not a legal requirement and is a feature which may or may not be needed, and is dependent on the use of the premises.

3) Escape Route Lighting is lighting which ensures the means of escape can easily be identified.

4) Open Are or Anti-Panic lighting is part of the escape lighting system and provides enough illumination to allow occupants to reach an area where the means of escape can be identified.

5) High-risk Task area lighting is lighting which will provide sufficient illumination so that an operator can terminate a potentially dangerous process or carry out proper shut-down procedures before evacuating the premises.

How many emergency lights do I need?

There is no specific quantity of emergency lights specified.  The requirement is that you provide sufficient lighting levels, in the event of a mains failure, for people to safely exit from a building.

Using the relevant standards BS EN 1836/BS 5266-7, the light level requirements for the building can be determined.  From that, the type and quantity of luminaries can be determined.
