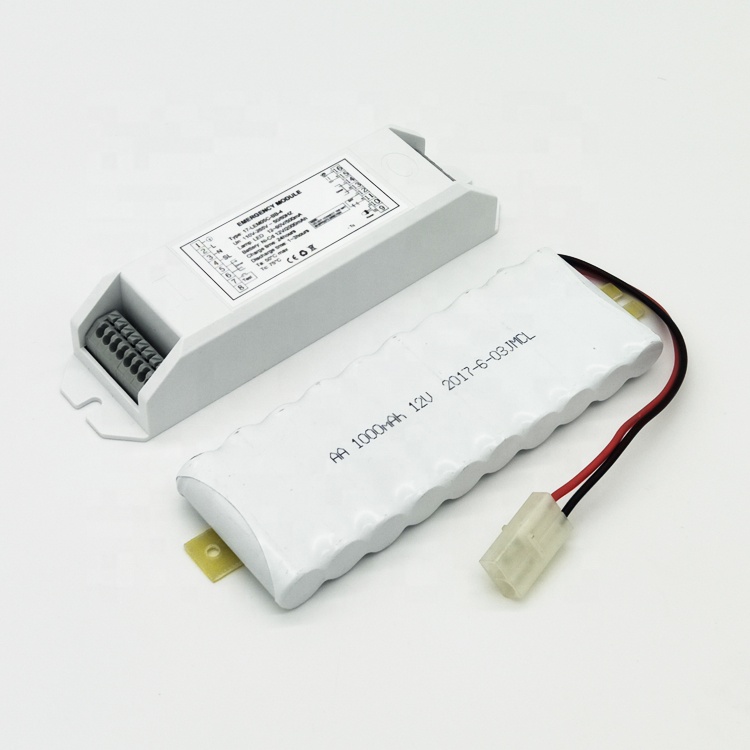

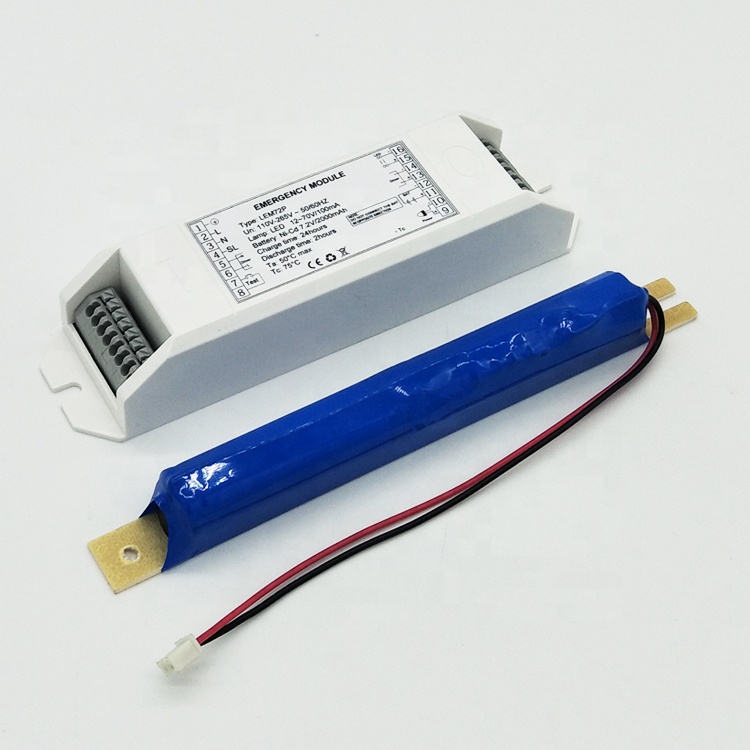

Battery pack led emergency with constant power
KUNSEN "CP3W" emergency battery backup is designed to suit a very wide range of LED types and circuits by automatically adjusting the output LED current to provide the best match between the battery and the load, providing maximum illumination whilst ensuring battery duration.
Lamp is lit by driver in normal working conditions, when main is failure, system will be switched automatically to emergency mode, and lamp is lit by battery via inverter/module.
Technically, it includes:
- Inverter/Module
- Battery pack
- Function testing button/Switch
- Performance indicative LED lamp
- All necessary accessories
| Product information |
Specification:
Model No.: | KS-CP3W |
Supply Voltage | AC220V-AC240V,50HZ/60HZ; |
Power rating | 22mA λ=0.85 |
Insulation between supply & battery | Double Reinforced |
Duration | 3 hours |
Ambient Temp Ambient Temp. 0°C to + 50°C | 0℃~+50℃ |
Max Case Temperature | 70°C |
Max Battery Temperature | 55°C |
charging time | 24h |
Battery Pack | 3 x 4.0Ah D Cell Ni-Cd |
Battery Size | 221 x 37 x 37 FC 145mm |
Charge Current | 200mA ± 50mA |
emergency output power | 3W |
Emergency output voltage | DC6-60V |
Battery capacity | NI-CD D4000Mah *3.6V |
Inverter Size (L x W x H) | 165mm x 45mm x 29mm |
Module dimension | 235×52×31mm |
Features:
Intelligent automatic recharging function
Constant current battery charger
1/2/3 hours emergency operation
Led charge status display
Deep discharge protection to protect cells from over discharge
Facility for a Test switch to switch between Emergency and normal lighting function
Supplied with high brightness green/Red LED (manual test)
Complete with flex and plug
Push-wire terminal blocks for easy wiring installation
High quality of NI-CAD / NIMH rechargeable battery with 2 years of life
Small volume, convenient and flexible installation
Suitable for LED with external LED driver max 150W
Installation Instruction:
Connection 1 is used for safety ground (Earth)
Connection 2 is used for connecting to the life wire of the building electricity network before the switch, sensing if the life wire is "alive".
Connection 3 is used for connecting the neutral of the building electricity network
Connection 4,5 and 6 are not used, or connect "L" of building electricity to connection 4 "SL", and connect driver "SL", "L" with connection 5 and 6.
Connection 7 and 8 have a test switch (that is connected in series between the life connection 2 and electronic circuit of KUNSEN module).
Connection 9 (Positive +) and 10 (Negative -) are for connecting a control LED meaning life electricity is connected and "alive"
Connection 11 (+) and 12 (-) are used to connect the battery for emergency operation
Connection 13 (+) and 14 (-) are used to connect the led system driver.
Connection 15 (+) and 16 (-) are used to connect the led fixture to the current driver of Kunsen module.
