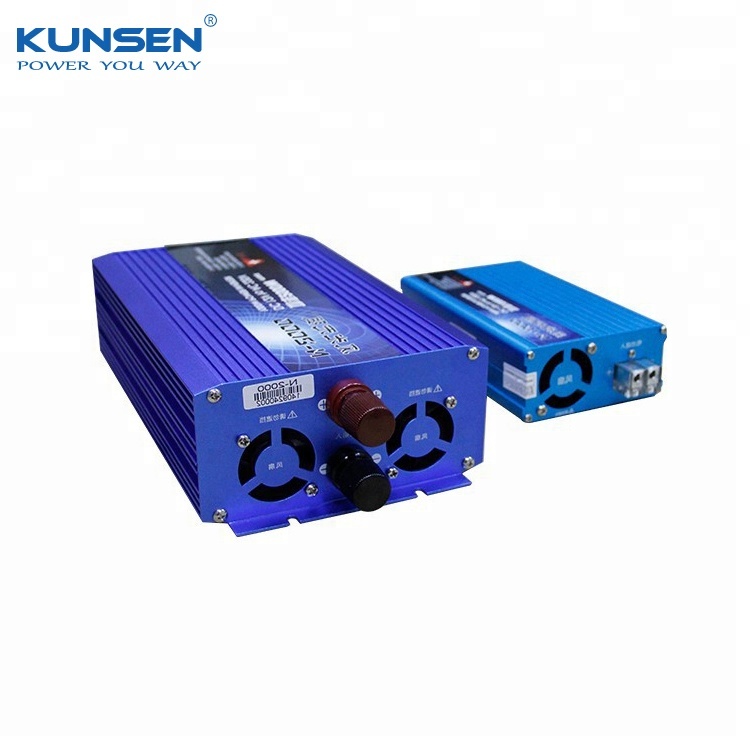

Click on the image to view the original image
Overview
Quick Details
- Place of Origin:
- China
- Brand Name:
- KUNSEN
- Model Number:
- P300
- Phase:
- Single Phase
- Protection:
- Overload,over voltage, short curcuit
- Weight:
- 0.45KG
- Output Voltage:
- 220v
- Type:
- Line Interactive, DC/AC Inverters
- Application:
- Instrumentation
- Product Name:
- Power Inverter
- Output Power:
- 1 - 200KW
- Input voltage:
- 12v/24v/48v
- Output Current:
- 20A
- Output Frequency:
- 50±3Hz
- Technology:
- CPU control
Supply Ability
- Supply Ability:
- 100000 Unit/Units per Month Inverter
Packaging & Delivery
- Packaging Details
- Packaging Details:1units/carton
- Port
- Guangzhou
- Lead Time:
- Shipped in 7 days after payment
Specifications
Variable Frequency Inverter
1. Low frequency control
2. wide input voltage range
3. Stable output voltage(pure sine wave )
50Hz To 60Hz 1 Phase Input 1 Phase Output Variable Frequency Inverter
| Rated power | 300w/500w/1000w/2000w/3000w | ||
| Rated input voltage (Vdc) | 12 | 24 | 48 |
| Output voltage range | 220Vac | ||
| Peak value | 2 times of the nominal power(20ms) | ||
| Output frequency | 50±3Hz | ||
| Output wave form | Modified sine wave | ||
| Operating environment temperature | -10℃-40℃ | ||
| 12V input, current consumption(no load) | <0.3A | <0.2A | <0.15A |
| Max. efficiency | 90% | 92% | 94% |
| Under voltage warning (Vdc) | 10.2-10.8 | 20.2-21.6 | 40.8-43.2 |
| Low voltage cutoff (Vdc) | 9.2-9.8 | 18.4-19.6 | 36.8-39.2 |
| Voltage recovery (Vdc) | 11.7-12.3 | 23.4-24.6 | 46.8-49.2 |
| Over voltage cutoff (Vdc) | 15-16 | 30-31 | 60-65 |
Characteristics:
1. Wide range of input voltage
The UPS can offer normal and stable service voltage under its input voltage range. When the input voltage is out of its range the machine will switch to battery mode automatically to keep the output power in order to protect the equipment, such as computers, ensure they will not be damaged by the over high or over low voltage, users can continue the operation of equipment for a while or save the data on computers while the power network is abnormal.
2. Wide range of AVR(Automatic voltage regulation)
In the product’s input voltage range and under 3 steps of intelligent AVR function, it can provide a stable output voltage.
3. Automatic self detection when UPS on(LED).
Before the UPS on, red, yellow, blue LED will light up two times by cycle turns, after self detection UPS switch to AC mode/battery mode or working mode.
4. Silence function
In the "battery mode", shortly press the switch to turn off the buzzer. But the battery is about to run out or the load is too heavy, the buzzer sound cannot be muted.
5. Overload protection
In the battery mode, output voltage turn down correspondingly when it is overload, after the capacity of load is lower than the rated power then output voltage will back to rated value, it ensures the UPS will not shut down by abrupt overload which caused by surging current during the computer is working and other equipment is added.
6. Short circuit protection
When the mis-operation caused the load short circuit or computer failure (such as power tube breakdown of switch) cause short circuit, the UPS will shutdown automatically for protection.
7. The low current switch
This UPS adopts low current switch to extend the service life which is longer than conventional battery and high current switch in AC current path.
8. Automatic charging
There are two charging mode, charging time is faster than ordinary charging mode, higher efficiency, and greatly prolonging the service life of the battery.
9. With a bypass output
Independent bypass output socket for external printers or scanners of computer peripherals, with surge protection of the load.
