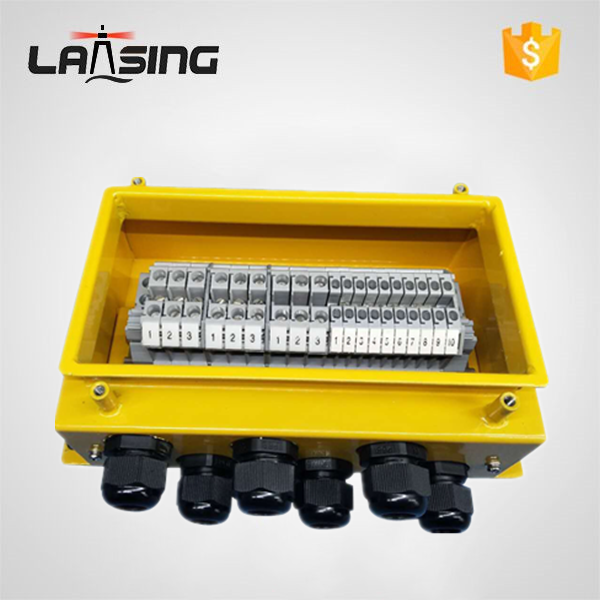

JB2X Junction Box
Lansing JB0X series junction box is specially designed for integration of aviation obstruction light. 1 way input and up to 8 ways output, the junction box can connect lights in parallel to one way.
Aluminum alloy enclosure and epoxy coated provide good weather and corrosion resistance
Better waterproof with IP65 nylon cable glands
Lightweight and compact design
All input and output cable entries have UV protected glands (A2 compression gland 1) that are positioned on the bottom most facia of the junction box when installed.
The junction box has a single DIN rail carrier with 6 mm2 terminal blocks for power connections and 2.5 mm2 terminal blocks for alarm/signal connections laid out from left to right (as depicted in the figure below):
a. 3 x 6 mm2 terminal blocks with bridge piece for positive DC distribution or Live on an AC input.
b. 3 x 6 mm2 terminal blocks with bridge piece for negative DC distribution or Neutral on an AC input.
c. 3 x 6 mm2 earth terminal blocks DIN rail earthed for bonding connection to earth.
d. 10 x 2.5 mm2 terminal blocks bridged as shown below for the RMS alarm input connection.
Model | JB22 | JB23 | JB2X |
Input and output | |||
Output numbers | 2 | 3 | X |
Input numbers | 1 | ||
Cable gland | |||
Material | Nylon | ||
Numbers | 3 | 4 | X |
Size | M20/M25(for cable dia. 9-16mm) | ||
Mechanical Structure | |||
Enclosure | Aluminum alloy | ||
Protection | IP65 | ||
Size | 175cmx100cmx68cm | ||
Mounting dimension(unit: mm)
