- Type:
- Aviation Obstruction Lights
- Input Voltage(V):
- 85-265VAC;12VDC, 20-60VDC
- Lamp Power(W):
- 3
- Lamp Luminous Flux(lm):
- 100%
- Lamp Luminous Efficiency(lm/w):
- 100
- CRI (Ra):
- 100
- Beam Angle(°):
- 360 Horizontal Beam Angle
- IP Rating:
- IP67, IP67
- Certification:
- CE, EMC, LVD
- Emitting Color:
- Red
- Lamp Body Material:
- Aluminum Alloy
- Light Source:
- LED
- Place of Origin:
- Shanghai, China
- Brand Name:
- LANSING
- Light Intensity:
- >10cd
- Beam angle:
- 10°
- Product name:

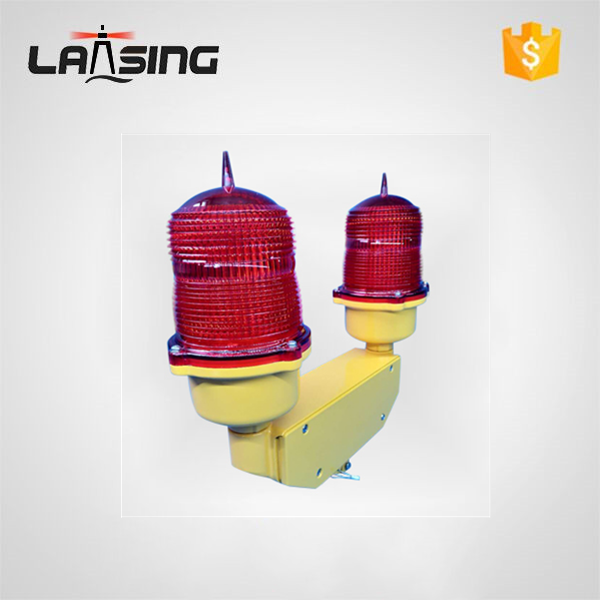

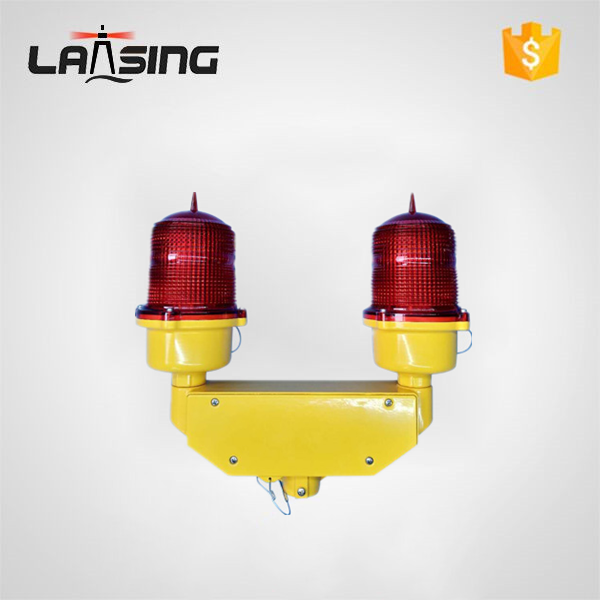

- Twin obstruction light
- Color:
- Red, Amber, Green, Blue, White
- Visual range:
- >3.6km
- Material:
- Base:Aluminum Alloy Housing:PC
- Weight:
- 3.5KG
- International standard:
- ICAO(Aerodromes Annex 14)low Intensity Light TYPE-B
- Supply Ability:
- 3000 Piece/Pieces per Month
- Packaging Details
- 1 piece carton: 48*42*22cm / 4kg
4 piece carton: 49*43*79cm / 18kg
- Port
- Shanghai port
Specifications:
LIGHT OUT-PUT | DL10DST(Double) | DL10DSS(Double) |
Effective Intensity | 10 Candela | 10 Candela |
Vertical Divergence | 10 Degree | |
Horizontal out-put | 360 Degree | |
LED Color | Red | |
LED Lifespan | 100,000 Hours | |
OPERATION | ||
Flash Pattern | Steady burning/Flashing(20-60times/min) | |
POWER SUPPLY | ||
Input voltage | 85-265VAC;12VDC, 20-60VDC | |
Frequency | 50Hz ~ 60Hz | |
MECHANICAL STRUCTURE | ||
Lens | Polycarbonate, UV Stabilize | |
Body | Die-casting Aluminum | |
Water-proof | IP65 | |
Weight | 3.5kg | 3.5KG |
Dimensions | 340mmx413mmx140mm | 340mmx413mmx140mm |
Mounting Size | Threaded 3/4"" bottom hub | |
Temperature Range | -40℃ ~ +55℃ | |
Relative humidity | 100% with condensation | |
Wind speed | Up to 150mph(240kph) | |
Warranty | 5 years | |
Optional | Available in flashing pattern(40FPM) |
Order Codes
Series | Double | AC/DC | Voltage | Flashing | Photosensor | Alarmrelay | Pattern(For double light only) |
DL10D | D | A | 12 | F | P | R | ST |
|
|
| 24 |
|
|
| SS |
|
|
| 48 |
|
|
|
|
|
|
| 110 |
|
|
|
|
|
|
| 220 |
|
|
|
|
