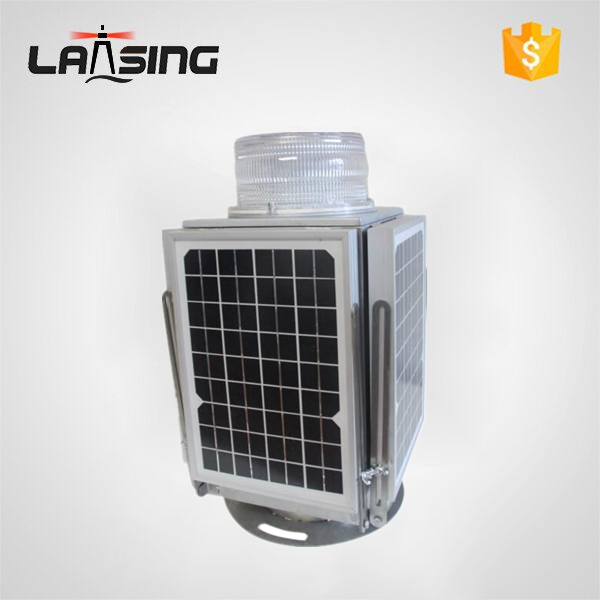

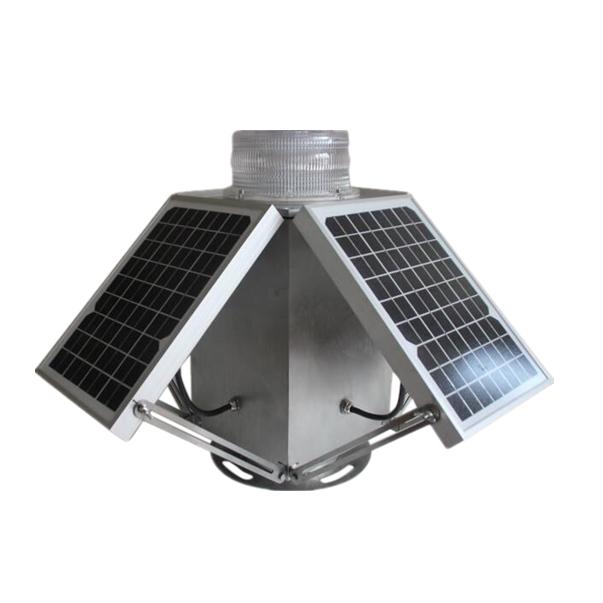

HB80/10NM Solar Powered Marine Light
Description:
HB80/10NM Solar function make it a self-contained and almost care-free light unit. The light system is composed of 3 parts,
light, battery box and solar panel. When the light and solar panel connected to the Stainless-steel battery box, the whole system
can be mounted on a tower, chimney, tall buildings and other applications. It is equipped with rechargeable lithium battery which
could power the light up to 700hrs when the weather is cloudy & rainy with 10years’ service life.
It can provide the 256 flashing patterns that comply with IALA, Morse code, SOS code and self-defined codes. These patterns
are selected by a touch switch and 8 indicators. If needed, the GPS can be equipped.
Features:
• Unique optical design complies with IALA standard
• Regulation automatically turns on at dusk and off at dawn
• 4pcs flexible mono-panels for more sunshine absorbing and easy transportation.
• Polycarbonate lens is virtually indestructible and anti-UV.
• Will charge under nearly all weather conditions and up to 700 hours of operating capacity from a full charge.
• Easy installation by 4pcs bolts
Specifications:
SPECIFICATIONS | |
LIGHT OUTPUT | HB80/10NM |
Effective Intensity | 2500cd |
Visibility | 10-=13NM (adjustable) |
Minimum Autonomy | 700hours |
Vertical Divergence | ±7.5° at 50% intensity |
Horizontal | 360 Degree |
LED source | High brightness Cree led |
LED color | Red, green, blue, amber, or white |
Latitude Range | 55°S to 55°N |
LED lifespan | 100,000 Hours |
Flash Pattern | Flashing |
Solar Panel | 18V7W*4pcs mono-crystalline with 16.5%efficiency |
Storage battery | 12V20AH, replaceable Lithium battery |
MACHANICAL STRUCTURE | |
Lens | Polycarbonate, anti-UV and shock resistance |
Base Material | Stainless steel |
Water-proof | IP67 |
Weight | 6.5KG |
Temperature Range | -40degree - +70degree |
Warranty | 3 years |
Optional | 256IALA/GPS monitoring |
Details:
Applications:
• High rise building marking
•Telecom tower marking
• Road obstruction marking
• Navigation aid
• Port, dock entrance & walkway
• Buoy marking
• Offshore gas &oil platform
