Home > Products > DL10D FAA Dual aviation obstruction light

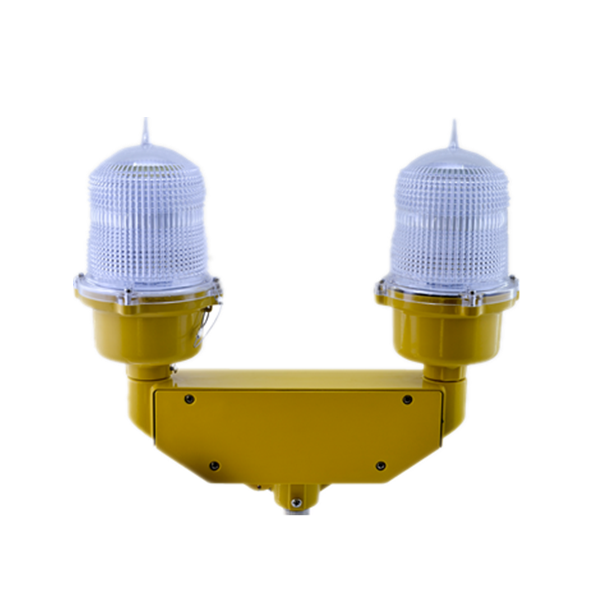

DL10D FAA Dual aviation obstruction light
Click on the image to view the original image
Product: views:42DL10D FAA Dual aviation obstruction light
Branch: LANSING
Type: Aviation Obstruction Lights
Unit Price: Negotiated
Min.Order:
Supply:
Delivery: Shipment within days since the date of payment
Valid until: Long Term
Updated on: 2019-10-16 14:53
  Negotiated
Product Details
Overview
Quick Details
Type:
Aviation Obstruction Lights
Input Voltage(V):
85-265VAC;12VDC, 20-60VDC
Lamp Power(W):
3
Lamp Luminous Flux(lm):
100%
Lamp Luminous Efficiency(lm/w):
100
CRI (Ra):
100
Beam Angle(°):
360 Horizontal Beam Angle
IP Rating:
IP67, IP67
Certification:
CE, EMC, LVD
Emitting Color:
Red
Lamp Body Material:
Aluminum Alloy
Light Source:
LED
Place of Origin:
Shanghai, China
Brand Name:
LANSING
Light Intensity:
>10cd
Beam angle:
10°
Product name:
Twin obstruction light
Color:
Red, Amber, Green, Blue, White
Visual range:
>3.6km
Material:
Base:Aluminum Alloy Housing:PC
Weight:
3.5KG
International standard:
ICAO(Aerodromes Annex 14)low Intensity Light TYPE-B
Supply Ability
Supply Ability:
3000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
1 piece carton: 48*42*22cm / 4kg
4 piece carton: 49*43*79cm / 18kg
Port
Shanghai port





Specifications:



LIGHT OUT-PUT

DL10DST(Double)

DL10DSS(Double)

Effective Intensity

10 Candela

10 Candela

Vertical Divergence

10 Degree

Horizontal out-put

360 Degree

LED Color

Red

LED Lifespan

100,000 Hours

OPERATION

Flash Pattern

Steady burning/Flashing(20-60times/min)

POWER SUPPLY

Input voltage

85-265VAC;12VDC, 20-60VDC

Frequency

50Hz ~ 60Hz

MECHANICAL STRUCTURE

Lens

Polycarbonate, UV Stabilize

Body

Die-casting Aluminum

Water-proof

IP65

Weight

3.5kg

3.5KG

Dimensions

340mmx413mmx140mm

340mmx413mmx140mm

Mounting Size

Threaded 3/4"" bottom hub

Temperature Range

 -40℃ ~ +55℃

Relative humidity

100% with condensation

Wind speed

Up to 150mph(240kph)

Warranty

5 years

Optional

Available in flashing pattern(40FPM)
Available with built-in photocell
Available with built-in alarm relay contacts





Order Codes

SeriesDoubleAC/DCVoltageFlashing PhotosensorAlarmrelayPattern(For double light only)

DL10D

D

A

12

F

P

R

ST







24







SS







48















110















220
