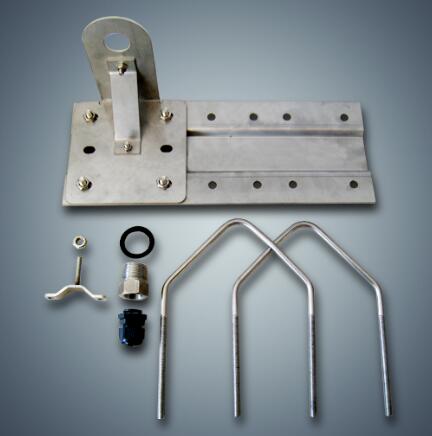

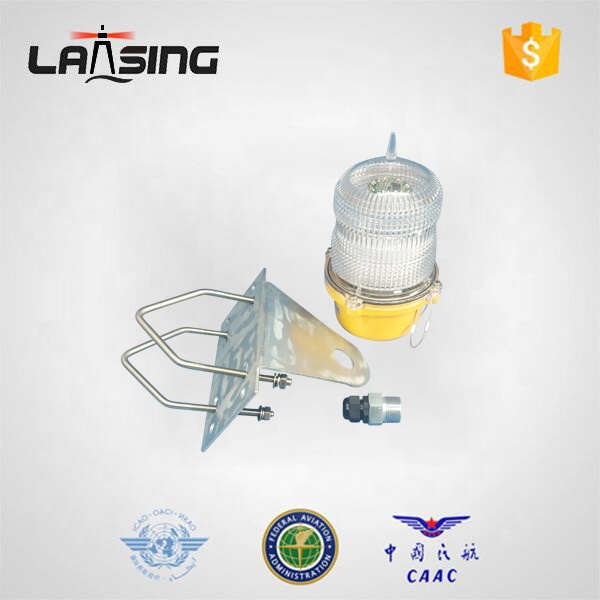

MBL100 mounting brackets for LANSING low intensity obstruction light
• Mounting support plate material- Stainless steel or Hot-dip galvanized for options
• Stainless Steel U-bolts and fasteners ensure better weather and corrosion resistant
• Unique design for easy installation
• Fix to vertical tower structure for better shock and vibration resistant
• Cable land, reducer and gasket enhance the complete light waterproof to IP67
• Three sizes of U-bolts suit 30-150mm tower leg.
Specification
Description | Parameter |
Main Mounting support |
|
Fasteners | SS304 |
Cable Gland | M20 |
Mounting structure required | Vertical triangular/tubular/square tower structure(Allow some incline angle) |
Suitable tower structure diameter | 30-150mm(Sub-size refer to Ordering code) |
Ordering Code
Series | Tower leg Dia. | Material |
MBL | 80(30-80mm) | SS(Stainless Steel 304) |
| 100(60-100mm) | HDG(Hot Dip Galvanized Steel) |
| 150(100-150mm) |
|
| 30150(30-150mm) |
|
