Home > Products > DL32S E27 type base aircraft warning light

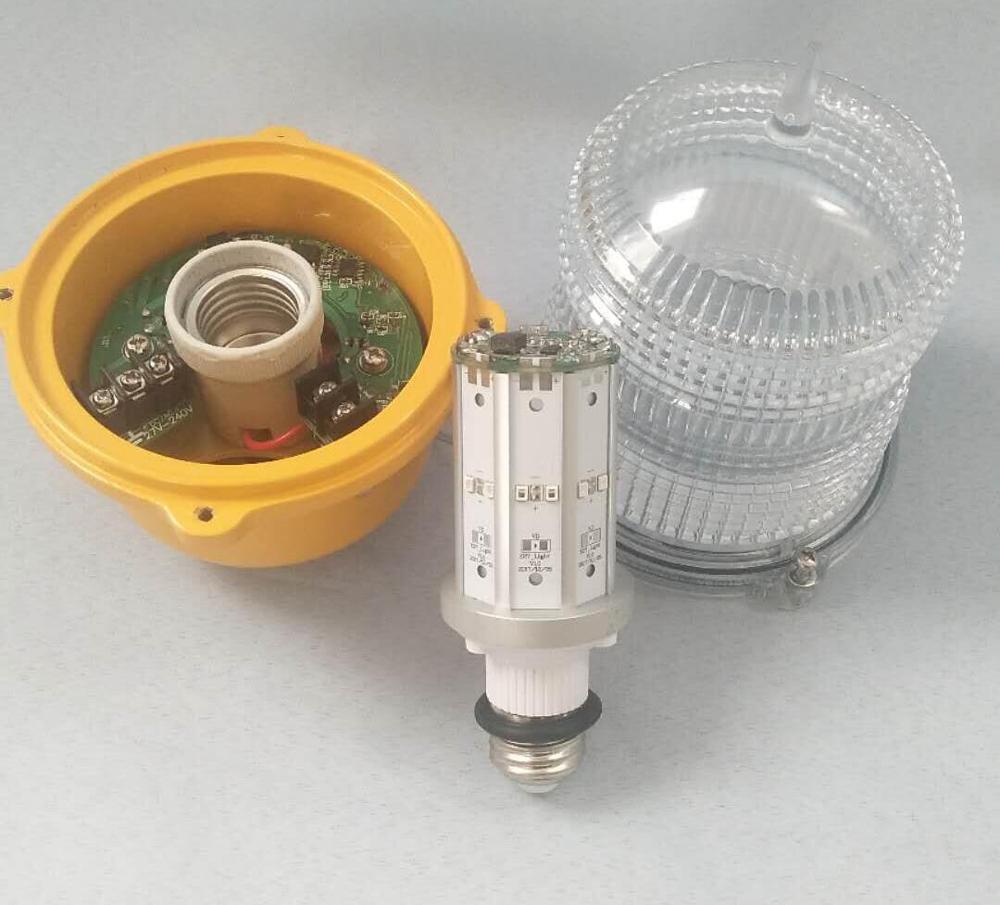

DL32S E27 type base aircraft warning light

Click on the image to view the original image

Product：	views：4DL32S E27 type base aircraft warning light
Branch：	LANSING
Type：	Aviation Obstruction Lights
Size：	30X19X19.5 cm
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-10-16 14:53

Product Details

Overview

Quick Details

Products name:: DL32S FAA L 810 Low intensity led aviation obstruction light,

International standard:: ICAO(Aerodromes Annex 14)low Intensity Light TYPE-B

Package Type:: 1 piece carton: 30*19*19.5cm / 1.25KG 8 piece carton: 59*38*41cm / 8.6KG

Lead Time:

Quantity(Piece)	1 - 30	>30
Est. Time(days)	5	To be negotiated

LIGHT OUT-PUT	DL32S
Effective Intensity	32 Candela
Vertical Divergence	10 Degree
Horizontal out-put	360 Degree
LED Color	Red
LED Lifespan	100,000 Hours
OPERATION
Flash Pattern	Steady burning or Flashing(20-60times/min)
POWER SUPPLY
Input voltage	85-265VAC;20-60VDC, 12VDC
Frequency	50Hz ~ 60Hz
MECHANICAL STRUCTURE
Lens	Polycarbonate, UV Stabilize
Body	Die-casting Aluminum
Water-proof	IP65
Weight	0.9KG
Dimensions	159mmx245mm
Mounting Size	Threaded 3/4"" bottom hub
Temperature Range	-40℃ ~ +55℃
Relative humidity	100% with condensation
Wind speed	Up to 150mph(240kph)
Warranty	5 year
Optional	Available in flashing pattern(40FPM) Available with built-in photocell Available with built-in alarm relay contacts
