- Type:
- Aviation Obstruction Lights
- Input Voltage(V):
- 85-265VAC; 12VDC, 20-60VDC
- Lamp Power(W):
- 40
- Lamp Luminous Flux(lm):
- 100
- Lamp Luminous Efficiency(lm/w):
- 100
- CRI (Ra):
- 100
- Beam Angle(°):
- 360 horizontal beam angle
- IP Rating:
- IP67
- Certification:
- CE, EMC, LVD
- Emitting Color:
- Red
- Lamp Body Material:
- Aluminum Alloy, Aluminum Alloy
- Light Source:
- LED
- Place of Origin:
- Shanghai, China
- Brand Name:
- LANSING
- Products name:

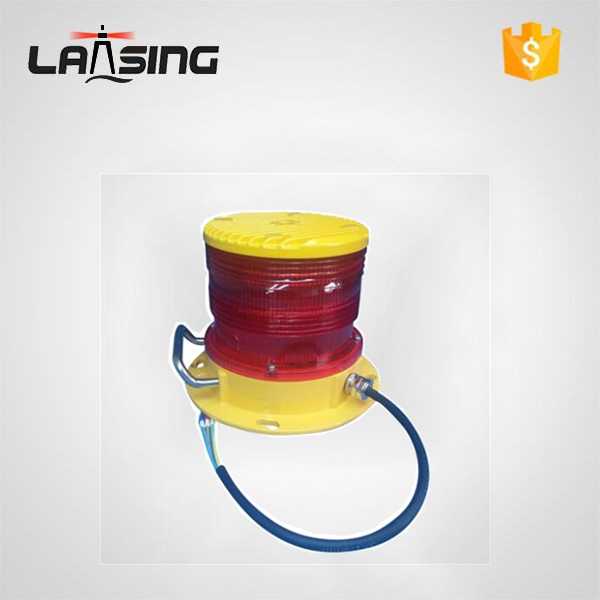

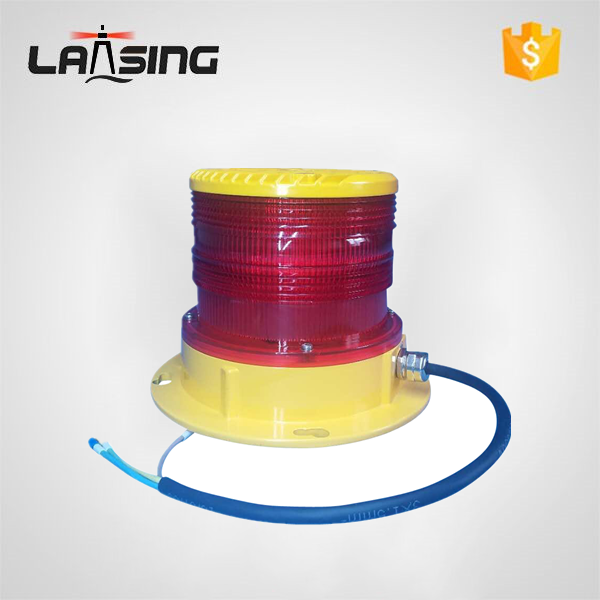

- LANSING L864 Medium Intensity Obstruction Lights
- Vertical degree:
- ≥3°
- Flashing rate:
- 20-60times/min(optional)
- Working mode:
- Steady Burning or flashing
- Weight:
- 4.5kg
- International standard:
- ICAO( Annex 14); FAA-L864
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 28X28X28 cm
- Single gross weight:
- 4.0 kg
- Lead Time:
Quantity(Piece) 1 - 30 >30 Est. Time(days) 5 To be negotiated
Specifications:
LIGHT OUT-PUT | |
Peak Intensity | 2000 Candela |
Vertical Divergence | -1° :950cd, Centering at 0.5° |
Horizontal out-put | 360 Degree |
LED Color | Red |
LED Lifespan | 100,000 Hours |
OPERATION | |
Flash Pattern | Steady-burning or flashing(20-60times/min) |
POWER SUPPLY | |
Input voltage | 85-265VAC, 20-60VDC, 12VDC |
Frequency | 50Hz ~ 60Hz |
Power consumption | 40W with steady mode; 5W with flashing |
MECHANICAL STRUCTURE | |
Lens | Polycarbonate, UV Stabilize |
Body | Die-casting Aluminum |
Water-proof | IP67 |
Weight | 4.5 KG |
Temperature Range | -40℃ ~ +55℃ |
Relative humidity | 100% with condensation |
Dimensions | 210mm H, 226mm Diameter |
Warranty | 5 years |
Optional | Available with built-in photocell |
Order Codes:
Series | Steady / flashing | AC/DC | Voltage | Flashing | Photo sensor | Alarm relay |
ZG2K | C (steady) | A | 12 | F | P | R |
| B (flashing) | D | 24 |
|
|
|
|
|
| 48 |
|
|
|
|
|
| 110 |
|
|
|
|
|
| 220 |
