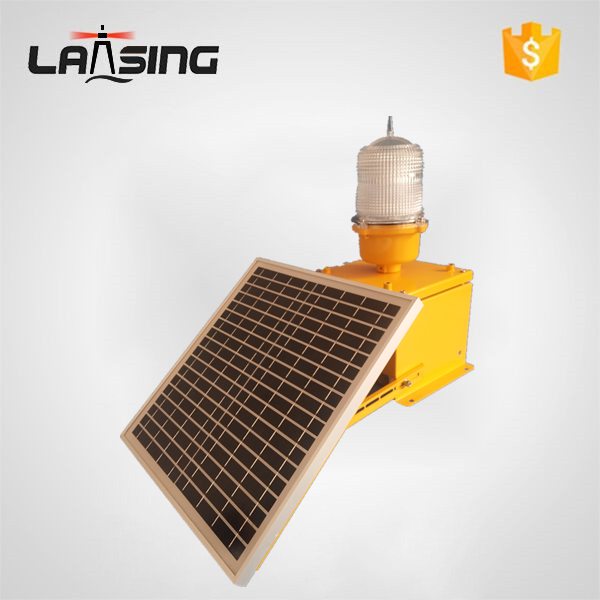

DLT10S Low Intensity TYPE A LED Based Solar Aviation Obstruction Light,Solar Aircraft Warning Light
Description
DLT10 Series is solar powered obstruction light. Solar function make it a self-contained and almost car-free light unit.
The light system is composed of 3 parts: light, battery box and solar panel. When the light and solar panel connected to the battery box, the whole system can be mounted on a tower. Both vertical mounting and horizontal mounting are available.
DLT10 is equipped with a 8Ah VRLA(volve regulated lead acid) rechargable battery which could power the light up to 7 days
when the weather is cloudy&rainy. The 8Ah VRLA battery is also easy to find almost anywhere.
Both single light & double light are available in this series.
Features:
--High quality optics for excellent beam spread control
--Ultra-light LEDs, energy saving
--Self-contained without outside power supply
--Maximum visibility distance 4 KM
--Once fully charged, it can work for up to 7 days
--Auto-off after being packed for 18 hours
--All hardware of obstruction lights are made of corrosion resistant metals.
--Use of quality components and sophisticated technology reduce chances of maintenance and replacement.
--Shock and vibration resistant
--Corrosion resistant and UV stable polycarbonate housing
--Ease of mount, mount accessories available
Specifications:
LIGHT OUT-PUT | |
SPECIFICATIONS | 10 Candela |
Nominal Night Range | >4 KM |
LED Color Available | Red |
Vertical Divergence | 10 Degree |
Horizontal Out-put | 360 Degree |
Illumination | Ultra-bright LEDs |
LED Lifespan | 100,000 Hours |
OPERATION | |
Autonomy | 60 Hours |
On & Off Level | 70/100 Lux |
Flash Pattern | flashing |
POWER SUPPLY | |
Power Source | Solar module, mono-crystalline silicon |
Solar Efficiency | 13.5% |
Max. Power Out-put | 18V/15W |
Battery Type | VRLA, 10V/8Ah |
Battery Capacity | 12V/7 AH |
Battery Replacement | Yes, replaceable |
MECHANICAL STRUCTURE | |
Lens | Polycarbonate, UV Stabilize |
Body | Polycarbonate or Die-casting Aluminum |
Water-proof | IP65 |
Weight | 8 kg |
Temperature Range | -40 ~ +55 |
Solar panel Dimensions | 600mm H*410mm*28mm |
Warranty | 5 years for light |
