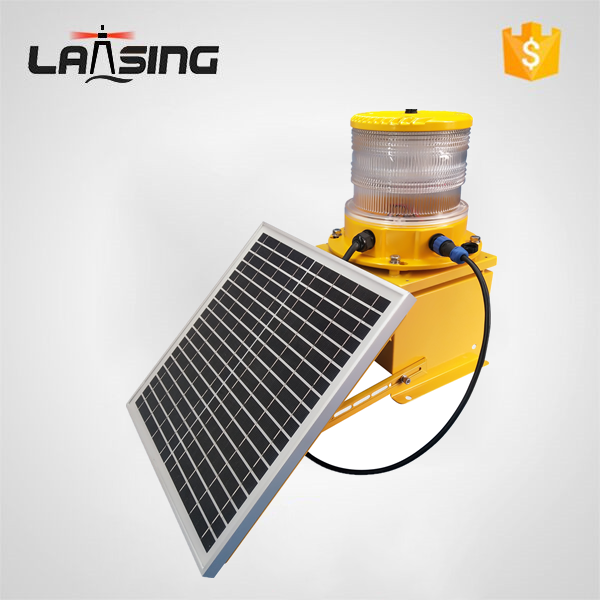

TY2KS Solar powered medium obstruction light,solar powered obstruction lights With GPS Synchronization function(optional)
TY2KS series is solar powered obstruction light. Due to solar module"s limitation like solar panel size and battery size, the light is being designed to work under flashing mode instead of stead-burning mode.
However, advantages like enegy saving and cable saving make the solar powered light a good option on obstruction marking.
Features
· High quality optics for excellent beam spread control
· Ultra-light LEDs, energy saving
· Self-contained without outside power supply
· Green enegy
· Cable cost saving & cabling job saving
· No wiring job, nice & easy installation
· Once fully charged, it can work for up to 8 days
· All hardware of obstruction lights are made of corrosion resistant metals.
·Bird spikes for protection against droppings.
· Use of quality components and sophisticated technology reduce chances of maintenance and replacement.
·LED light source ensures long lifetime, maintenance free
· Shock and vibration resistant
·Corrosion resistant and UV stable polycarbonate housing
· Ease of mount, mount accessories available
· Available both in single and double type
Specifications
LIGHT OUT-PUT | |
SPECIFICATIONS | 2000 Candela |
LED Color Available | Red |
Vertical Divergence | Peak intensity at 1 Degree |
Horizontal Out-put | 360 Degree |
Illumination | Ultra-bright LEDs |
LED Lifespan | 100,000 Hours |
OPERATION | |
Autonomy | 8 days (in cloudy&rainly days) |
On & Off Level | 70/100 Lux |
Flash Pattern | Flashing (default 40FPM) |
POWER SUPPLY | |
Power Source | 17.5V/15W aolar module |
Battery Type | Lead acid type. 12V/12AH(VRLA) |
MECHANICAL STRUCTURE | |
Lens | Polycarbonate, UV Stabilize |
Body | Die-casting Aluminum |
Water-proof | IP65 |
Weight | 11KG |
Temperature Range | -40C ~ +55C |
Light Dimensions | 215.5mm H, 226mm Diameter |
Solar panel Dimensions |
|
Solar battery box Dimensions |
|
Warranty | 5 years for light 10 years for solar panel |
Installation and operation
• When installing the light, pay attention to the solar panel direction, and the solar panel should be towards to
the Southern(Northern Hemisphere), the angle between solar panel and horizental level equals to local latitude.
• Connect solar panel plug to the socket on enclosure, and fix the screws.
• Open the battery switch, and the light will work normally
Notice
• Charge the battery in the following steps if keep this light in store for 3 months:
1,Open the light, and take the battery, then charge the battery using charger;
2,Put the light under the sunlight directly, and open the battery switch, charge the battery by sun energy. Turn off
the battery switch after a full charge.
• Please do not open the control box by yourself when operationg to avoid danger.
• This product is a sealed structure; should not be tampered with by anyone other than professional installer.
• Please use this product strictly on accordance with the instruction above.
