TY10D Flashing Dual solar powered obstruction lamp for Telecom Tower

Click on the image to view the original image

Product：	views：6TY10D Flashing Dual solar powered obstruction lamp for Telecom Tower
Branch：	LANSING
Type：	Aviation Obstruction Lights
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-10-16 14:54

Product Details

Overview

Quick Details

Type:: Aviation Obstruction Lights

Input Voltage(V):: DC3.6V(solar Power)

Lamp Power(W):: 3.6

Lamp Luminous Flux(lm):: 100%

Lamp Luminous Efficiency(lm/w):: 140

CRI (Ra):: 95

Beam Angle(°):: 360 horizontal beam angle

IP Rating:: IP68

Certification:: CE, EMC, LVD

Emitting Color:: Red

Lamp Body Material:: Aluminum Alloy

Light Source:: LED

Place of Origin:: Shanghai, China

Brand Name:: LANSING

Intensity:: >10cd(Flashing)

International standard:: ICAO(Aerodromes Annex 14)low Intensity Light TYPE-B

Visual range:: >4km

Color:: RED

Flashing Frequency:: 20~60 Times/min(optional)

On/off level:: 70/100 Lux

Continuous operation in rainy time:: 20 days

Supply Ability

Supply Ability:: 5000 Piece/Pieces per Month

Packaging & Delivery

Packaging Details: 1 piece carton: 27.5*27.5*28.5 (cm)/2.1kg
4 pieces carton:57*29.5*59(cm)/10.2kg

Port: Shanghai port

TY10D Flashing Dual solar powered obstruction lamp, Double solar powered obstruction light for Telecom Tower

Product Description

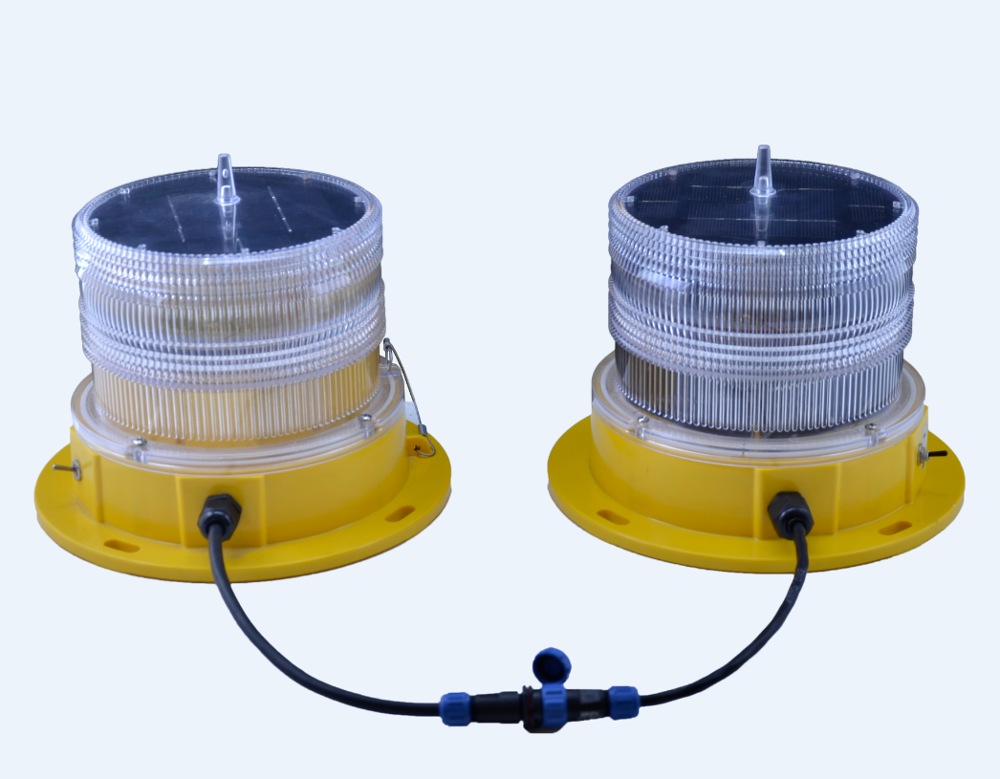

Based on LANSING TY10, TY10D is a “twin” model which can be working synchronization. An internal solar panel comes with each single light of TY10D, provides power supply to the light, which makes TY10D a self-contained and care-free light unit. Also, with the solar function, the light is easy to deploy to almost any condition and any emergency case. Robust body built and surface coating provides good protection against hash environments.

Features

• Ultra-light LEDs, energy saving

• Dry contact type alarm out-put

• Group Synchronization by sync data shielded cable

• One unit Can be working independently as TY10

• Once fully charged, it can work for up to 100 hours

• Auto-off after being packed for 18 hours

Application

• High-rise building marking

• Telecom tower marking

• Road obstruction marking

• Navigation aid

• Port, dock entrance & walkway

• Buoy marking

• Offshore gas & oil platform

Specifications:

LIGHT OUT-PUT
SPECIFICATIONS	10 Candela
Nominal Night Range	>4 KM
LED Color Available	Red
Vertical Divergence	10 Degree
Horizontal Out-put	360 Degree
Illumination	Ultra-bright LEDs
LED Lifespan	100,000 Hours
OPERATION
Autonomy	100 Hours
On & Off Level	70/100 Lux
Flash Pattern	40FPM
POWER SUPPLY
Power Source	Solar module, mono-crystalline silicon
Solar Efficiency	13.5%
Max. Power Out-put	1.8 WattsX2
Battery Type	High-efficiency NiMH rechargeable battery
Battery Capacity	8 AHX2
Battery Replacement	Yes, replaceable
MECHANICAL STRUCTURE
Lens	Polycarbonate, UV Stabilize
Body	Polycarbonate or Die-casting Aluminum
Water-proof	IP68
Weight	3.5KG(Polycarbonate) or 5KG(Die casting aluminum)
Temperature Range	-40 ~ +55
Dimensions	215.5mm H, 226mm Diameter
Warranty	5 years for light 2 years for NiMH battery

Shanghai Lansing Electronics Co., Ltd.
