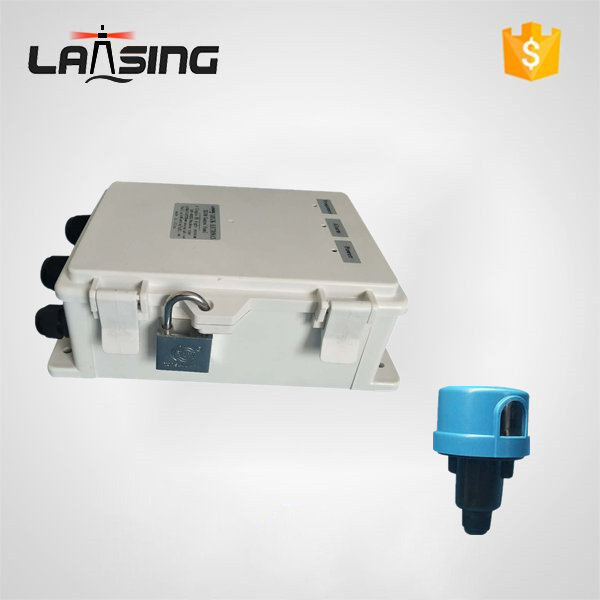

CBL02B Control panel
CBL02B Control panel for monitor lighting operation system for the following failures: burned out lamp, photocell, power failure, synchronously& flashing rate control
-- Switch on / off 2 lights flashing synchronously
-- The alarm signal is relay contact, inactive. Detect the working status of aviation light and give an alarm in case of failure. If for dual light, it will give an alarm in case of both service or standby light fails
-- Door mounted, two alarm indicating LED,LED 1 for indicating system fault and LED 2 for system working
-- With external photocell, in case of photocell failure, the control will give an alarm
-- With lighting protection
-- Flashing rate adjustable
-- Water & Dust proof
Specification
Supply voltage | DC48V/AC220V | Alarm output ways | 2 way | |
Control circuit branch | 2 way | Flash frequency | Based on the aviation light | |
Photocell sensitivity | 70~100Lux(ON/OFF) | Alarm output | One way dry connect(relay) output | |
Control method | Steady burning or flashing | |||
| ||||
Ambient temperature | -30degree to +70degree | Material | ABS, Aluminum alloy (Optional) | |
Humidity | 10% ~ 95% (no coagulation) | Weight | 1.5kg | |
Note
-- Please read the instruction carefully before operation.
-- Be sure not to connect polarity reversed.
