Solar runway lights, Used runway light for sales,Airfield lighting
Descriptions:

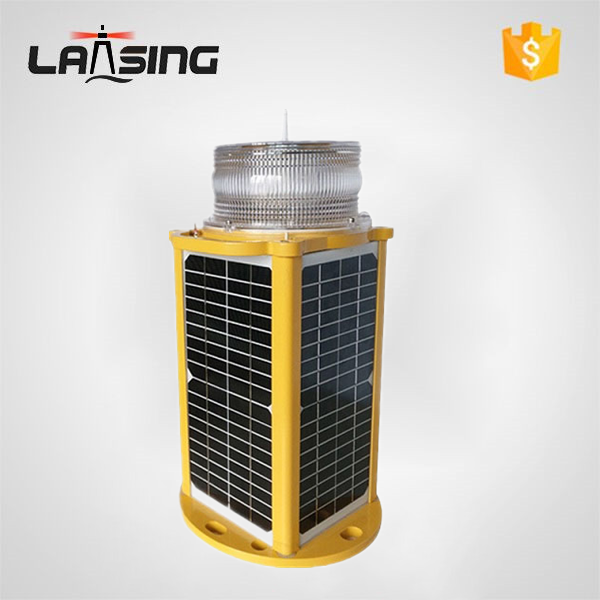

The JCL50-RF is a robust, completely self-contained LED light designed for a range of emergency aviation applications including runway, threshold, this fully functioning light can be controlled from the tower with no costly cabling or trenching required.
The unit is made from cast aluminium, subject to 7-stage powder-coating in aviation yellow. Four premium grade solar modules are integrated into the assembly and mounted to collect sunlight at all angles.
The solar array charges the 16Ah battery during daylight hours, and at dusk the light will automatically begin operation.
16 independently controlled LED drivers within the light optic (patents pending) allow the meet the photometric requirements of FAA L861 runway edge and threshold when set to temporary high mode.
The JCL50-RF has non-precision IFR and VFR capability with both visible and near infrared
encrypted repeating mesh network.
Features:
• Over 50hrs of continuous operation at FAA non precision MIRLs per AC/150-5345-46D L861 without solar or auxiliary charge in temporary high mode
OR
• Over 110hrs of continuous operation at ICAO Annex 14 runway edge, 50cd
• Integrated and replaceable Solar Panels - Enables continuous operation
• Optional NVG Mode - Illumination invisible to naked eye to support covert operations
• Modes of Operation - Programmable lighting groups, dusk-till-dawn operation, adjustable intensity, sequence
Specifications:
LIGHT OUT-PUT | |
SPECIFICATIONS | Steady-on: Blue-31 Red-32.5 Green-33.3 White-29.7 Yellow-28 Flashing: Blue-47 Red-50 Green-49 White-54 Yellow-48.7 |
Nominal Night Range | >10 KM |
LED Color Available | Red |
Vertical Divergence | 10 Degree |
Horizontal Out-put | 360 Degree |
Illumination | Ultra-bright LEDs |
LED Lifespan | 100,000 Hours |
OPERATION | |
Autonomy | 100 Hours |
On & Off Level | 70/100 Lux |
Flash Pattern | 20-90FPM (Preprogrammed default 40FPM) |
POWER SUPPLY | |
Power Source | Solar module, mono-crystalline silicon |
Solar Efficiency | 13.5% |
Max. Power Out-put | 20 Watts |
Battery Type | High-efficiency Lead-Acid rechargeable battery |
Battery Capacity | 12V / 16AH |
Battery Replacement | Yes, replaceable |
MECHANICAL STRUCTURE | |
Lens | Polycarbonate, UV Stabilize |
Body | Die-casting Aluminum |
Water-proof | IP67 |
Weight | 9 KG |
Temperature Range | -40C ~ +55C |
Dimensions | 448mm H, 235mm Diameter |
Warranty | 5 years for light |
Applications:
--- Solar Barricade Light
---Solar Caution Light
--- Solar Taxiway Light(ICAO)
---Solar Threshold Light
---Solar Obstruction Light
