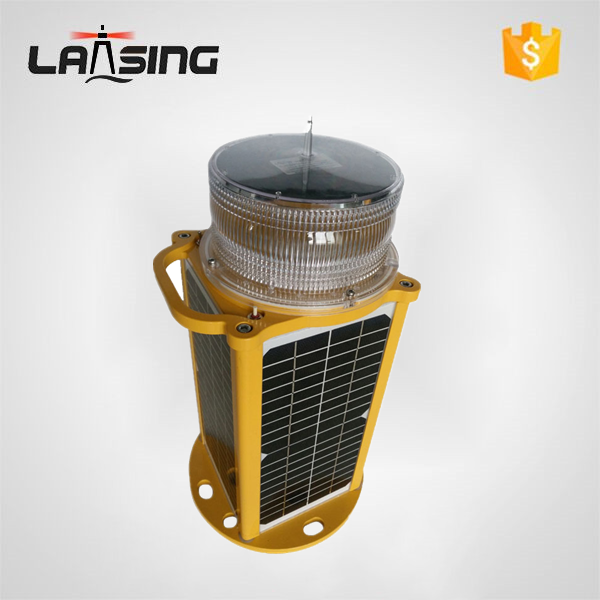

HB50 5NM Solar navigation signal light for Boat
Description:
HB50 Solar marine light has become the most classical solar-powered LED Light in the field of marine aid to navigation around the world. Because of its self-contained, reliability and durability, it has also become a perfect model for all kinds of warning applications. It installs in minutes and requires no maintenance or servicing for up to five years. It complies with IALA-AISM"s requirements
This light has built in GPS module, and several lights can synchronize at the same time.
Features:
• Based on LED technology, and its color complies to IALA Recommendations E-200-1.
• Integrated design, enabling a rugged and completely waterproof seal capable of prolonged and deep immersion (IP68).
• Visible distance is more than 7 Nautical miles.
• 256 kinds of flashing rate are available, compliance with IALA
• PC housing resistance, shockproof and corrosion proof.
• With bird’s pike
• With photocell, which can switch on/off the light automatically at dawn and dusk .
• With Steel wire to prevent falling during mounting and adjusting
• With built in NIMH battery, maintenance free and easy for replace.
• Extremely Reliable and cost saving.
• GSM faulty alarm function(optional)
• With GPS Synchronization(optional)
Specifications:
LIGHT OUT-PUT | |
SPECIFICATIONS | |
Intensity | Flashing: yellow: 270cd red: 270cd green: 270cd White:270cd |
Nominal Night Range | 7-10NM(10-18km) |
LED Color Available | Red |
Vertical Divergence | 10 Degree |
Horizontal Out-put | 360 Degree |
Illumination | Ultra-bright LEDs |
LED Lifespan | 100,000 Hours |
OPERATION | |
Autonomy | 7 days |
On & Off Level | 70/100 Lux |
Flash Pattern | 20-90FPM (Programmer default 40FPM) |
POWER SUPPLY | |
Power Source | Solar module, mono-crystalline silicon |
Solar Efficiency | 14% |
Max. Power Out-put | 20 Watts |
Battery Type | High-efficiency Lead-Acid rechargeable battery |
Battery Capacity | 12V /20AH |
Battery Replacement | Yes, replaceable |
MECHANICAL STRUCTURE | |
Lens | Polycarbonate, UV Stabilize |
Body | Die-casting Aluminum |
Water-proof | IP68 |
Weight | 35KG |
Temperature Range | -40C ~ +55C |
Dimensions | 298mm H, 235mm Diameter |
Warranty | 5 years for light |
Applications:
• High rise building marking
• Telecom tower marking
• Road obstruction marking
• Navigation aid
• Port, dock entrance&walkway
• Buoy marking
• Offshore gas&oil platform
