HB50-RF Solar LED Based Marine Navigation Light
Click on the image to view the original image
Product: views:14HB50-RF Solar LED Based Marine Navigation Light
Branch: Lansing
Unit Price: Negotiated
Min.Order:
Supply:
Delivery: Shipment within days since the date of payment
Valid until: Long Term
Updated on: 2019-11-19 22:09
  Negotiated
Product Details
Overview
Quick Details
Place of Origin:
Shanghai, China
Brand Name:
Lansing
Supply Ability
Supply Ability:
5000 Piece/Pieces per Month
Packaging & Delivery
Port
Shanghai port

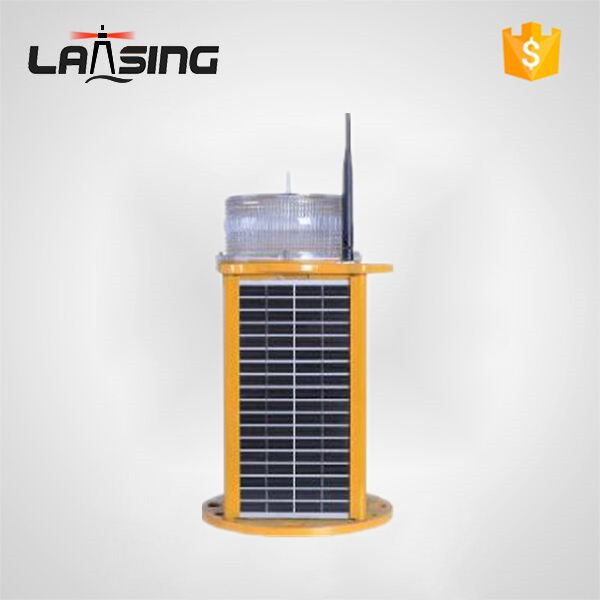

HB50-RF Solar LED Based Marine Navigation Light



Description:

HB50-RF Can be used with wireless remote RM02 Hand held Controller The solar panel comes with HB50 provides power supply to the light, which makes HB50 a self-contained and care-free light unit. Also, with the solar function, the light is easy to deploy to almost any condition and any emergency case. Robust body built and surface coating provides good protection against hash environments.

HB50-RF is equipped with a high-efficiency rechargeable battery is also easy to find almost anywhere working under flashing mode, while AO requires that the low intensity light to be steady. But, anyway, HB50-RF could be an alternative option for some special needs.



Features:

• Ultra-light LEDS, energy saving.

• Self-contained without outside power supply.

• Maximum visibility distance is more than 5 Nautical miles.

• Once fully charged. it can work for up to 200 hours.

• Auto/Manual can be set by hand held.

• 256 kinds of flashing rate are available, comply with IALA.

• 900MHZ wireless signal or GPS can be select, can reach 4KM distance.

• Three independently control groups can by controlled by hand held Controller, more groups can be customized.



Specifications:



SPECIFICATIONS

Effective Intensity

50cd

Minimum Autonomy

200hours

Visible distance

5nm

Vertical Divergence

10 degree

Horizontal out-put

360 Degree

LED color

RED/WHITE/YELLOW/BLUE

Latitude Range

55°S  to  55°N

LED lifespan

100,000 Hours

POWER SUPPLY

Solar Panel

20W mono-crystalline silicon with 13.5% efficiency

Battery type

High-effective NiMH replaceable battery

Storage battery

12V/18Ah , replaceable battery

MACHANICAL STRUCTURE

Lens

Polycarbonate, UV Stabilized

Base Material

Die-casting Aluminum

Water-proof

IP68

Weight

7.5KG

Temperature Range

-40 degree~ +55degree

Relative Humidity

100% with condensation

Warranty

3 years

OPTIONAL

Autonomy

200hours

On &Off  Level

70/100 Lux

Flash Pattern

complies to IALA Recommendations 256 available steady burning or Flash can adj







  RM02 Hand held Remote Controller



Carelessly control signalizes solar airfield lighting system from up to 4 km away.

Features include:

Operating mode, light intensity can be changed

• Instantaneous control of an unlimited number of air? led products

• Individual communication with each light

• Separately control 3 groups of lights more groups can be customize

• Uninterrupted, secure, MIL-grade encryption

• Output light voltage, light alarm signal

• Memory function









Applications:

• Navigation aid

• Port, dock entrance & walkway

• Buoy marking

• Offshore gas &oil platform

• High-rise building marking

• Telecom tower marking

• Road obstruction marking
