Click on the image to view the original image
- Place of Origin:
- Hebei, China
- Brand Name:
- LanYu
- Model Number:
- LYFG01
- Application:
- Walkway/platform/industry
- Surface Treatment:
- concave/grit/smooth
- Technique:
- Molded
- Product name:
- frp grating bunnings antislip plastic grid frp grating
- Material:
- Fibreglass Reinforced Plastic
- Thickness:
- 25mm, 30mm, 38mm, 50mm
- Color:
- yellow, bule, green, grey, black, etc.
- Type:
- Fiberglass Reinforced Plastic Grating
- Mesh size:
- 38x38,40x40,50*50mm, 100x25mm
- Pannel size:
- 1007x3007, 1220x3660, 1007x4047
- Resin type:
- GP, ISO, VE, PH
- Feature:
- Aging-Resistant,insulation,corrosion resistance
- Sample:

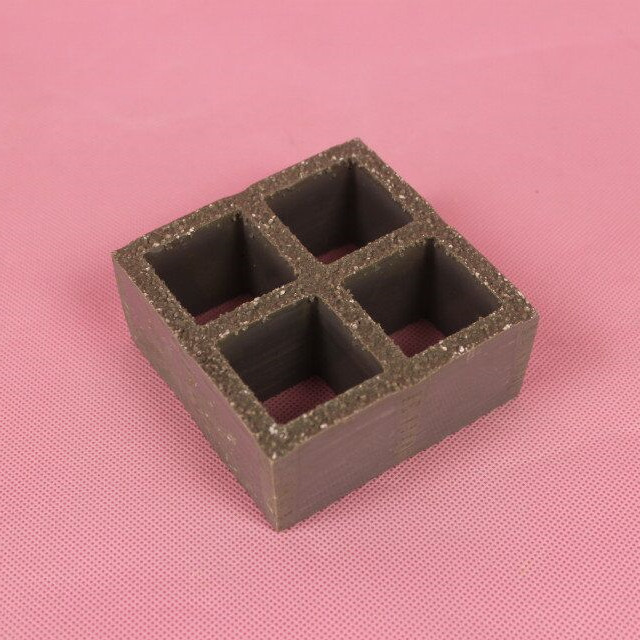

- small piece of antislip plastic grid frp grating
- Supply Ability:
- 5000 Square Meter/Square Meters per Month big capacity of frp grating bunnings
- Packaging Details
- antislip plastic grid frp grating are always packed in bundle, wooden carton for bulk order.
- Port
- Tianjin port
- Picture Example:
![package-img]()
- Lead Time:
Quantity(Square Meters) 1 - 500 501 - 1000 >1000 Est. Time(days) 15 20 To be negotiated

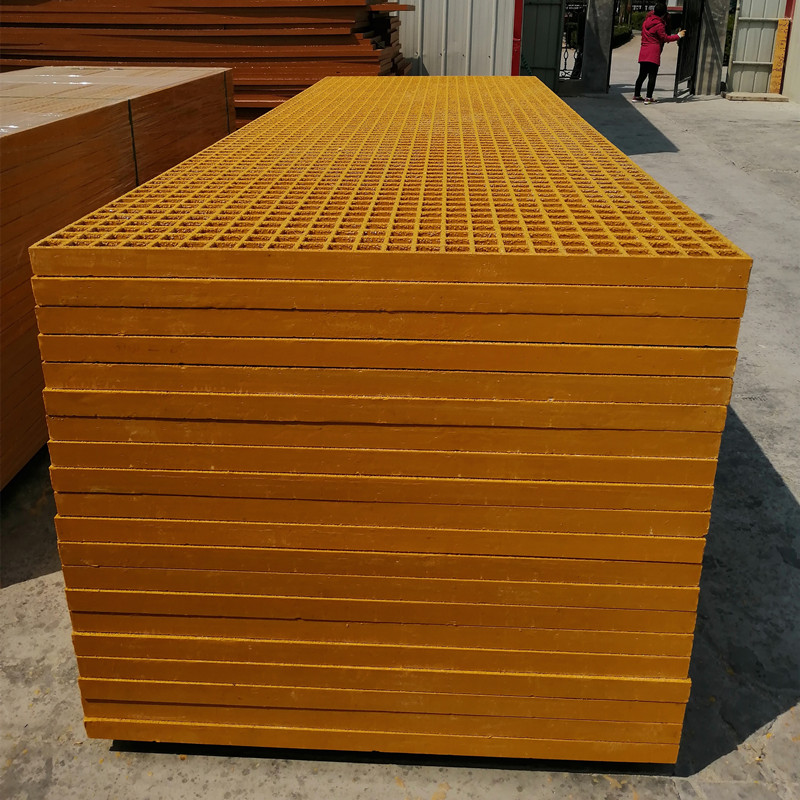

frp grating antiflaming frp grating bunnings antislip plastic grid frp grating
FRP grating is manufcturered by laying continuous glass fibres in the mould in the direction of vertical and horizontal, and thurougly wetted out with resin, layer by layer.
Any process such as post applied grit could be bonded after as a secondary operation.
This continuous process produces an integral, one piece panel, which offers excellent corrosion resistance as well as bi-directional strength.
| Specifications(mm) | a*b(mm) | weight(kg) |
| 38*38*25 | 1220*3660 | 54 |
| 38*38*30 | 1220*3660 | 70 |
| 38*38*38 | 1220*3660 | 88 |
| 1000*4007 | 81 | |
| 50*50*50 | 1220*3660 | 98 |
| 19*19*38*38*30 | 1075*3626 | 72 |
| 38*38*65 | 1030*4040 | 141 |
| 40*40*40 | 1010*4040 | 81 |
| 19*19*38*38*38 | 1220*3660 | 92 |
| 25*25*50*50*30 | 1220*3660 | 62 |
| High strength Security Anti-aging
It contains strong stress resistance, Lightweight, high strength.
Excellent electrical insulation.
UV absorption agent and polyester surface veil mat are added in the formula. |
Good mechanical property Inflaming Retarding
Resin content is 35%, fiberglass content is 65%, which increase the rate between strength and weight.
The fire retardant effect is of 1 to 25, or oxygen index is above 26. Oxygen index can reach about 26.(Per the requirement of project) |
|
| Size Color
Customized size are available.
Yellow, green, black, grey, transparent, etc Customized color are available. |
Fiberglass grating applications>>
- Flooring
- Bridges
- Ramps
- Walkways
- Platforms
- Assembly lines
- Wash bays
FRP pultruded profiles:
Standard structural shapes include equal angle, l beam, Wide flange beam, square tube, round tube, kick plate etc. These structural shapes are used in a wide range of applications, offering a unique combination of chemical resistance, size stability, high strength, and thermal, electric non-conductivity. Each shape is available in a number of dimensions to suit for a variety of design and application requirements. For special uses, custom shapes are also available. Orthophthalic resin, lsophthalic resin and vinyl ester resin are available, as per different environments.
Welcome your inquiry anytime.
We will sever you 24hours!
1.About quality, we can supply free sample of frp flooring for you.
If ok, welcome your coming to our factory!
2.Before shipping, we must send pictures/videos for your order.
If any question about the FRP grating, you can directly contact with me.
