- Place of Origin:
- Hebei, China
- Brand Name:
- Lanyu
- Model Number:
- TS-003
- Product name:
- PP PVC Waste Water Treatment Tube Settlers
- Material:
- PP, PVC
- Color:
- White, Blue
- Usage:
- Water Treatment and Sedimentation Tank
- Specification:
- Customized
- Thickness:
- 0.35mm-1mm
- Supply Ability:
- 10000 Cubic Meter/Cubic Meters per Month Water treatment device tube settlers
- Packaging Details
- Water treatment device tube settler with plastic bag or wooden pallet.
- Port
- Xingang
- Lead Time:
- Lamella tube settler within 10days

PP PVC Waste Water Treatment Tube Settlers
Tube settlers which also called the lamella clarifiers, are used to remove solids in the waste water treatment process. The multiple tubular channels are formed together at the angle of 60° to increase the effective settling area. The design multiplies the sedimentation area up to 15 times per square meter surface area and helps to improve sedimentation in water and waste water treatment plants.
Tube settlers are mainly used in Wastewater Treatment Plant and Sediment Tank. During the usage of tube settlers, we have the advantages of high treatment effects and small area occupation.

Advantages | |
1. The basins equipped with tube settlers can operate 2-4 times fast. | |
2. Cut the coagulant dosage by up to half | |
3. Less filter back washing equates cost savings for both water and electricity. | |
4. Flow of existing water treatment plants can be increased through the addition of tube settlers. | |
5. Tube Settlers can expand setting capacity and increasing the solids removal rate in settling tanks. |

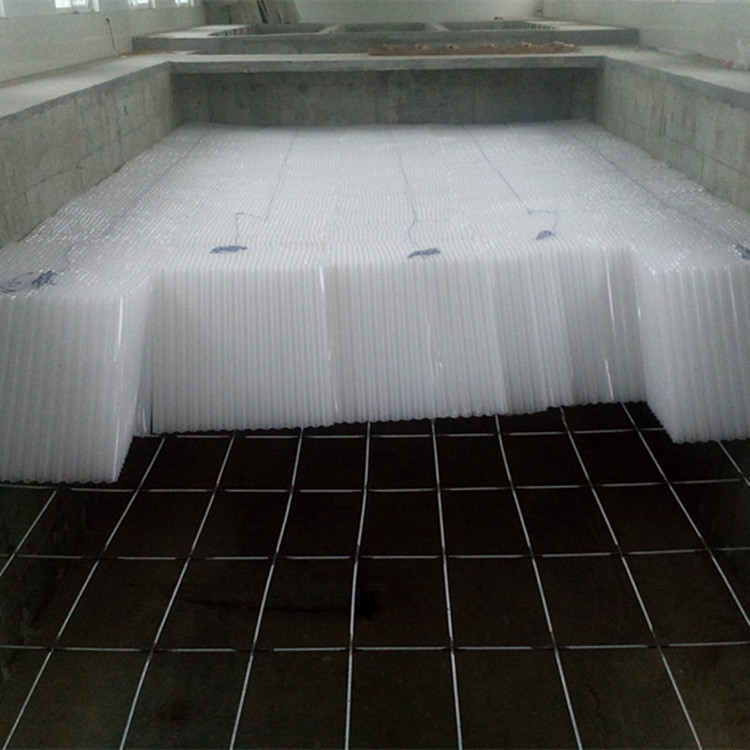

Wastewater Treatment Pool
Improvement Project of Sedimentation Tank
Application and Usage of Tube Settlers
Wastewater treatment and sedimentation tank.
Metal processing wastewater treatment.
Surface water purification.
Treatment of washing water.
Paper industry wastewater treatment.
Specifications(aperture) | Film Thickness(mm) | Sheet Quatity(pcs/m³) | Bulk Density(kg/m³) |
25mm | 0.45-0.5 | 50 | 42 |
35mm | 0.35-1 | 45 | 37 |
50mm | 0.35-1 | 32 | 26 |

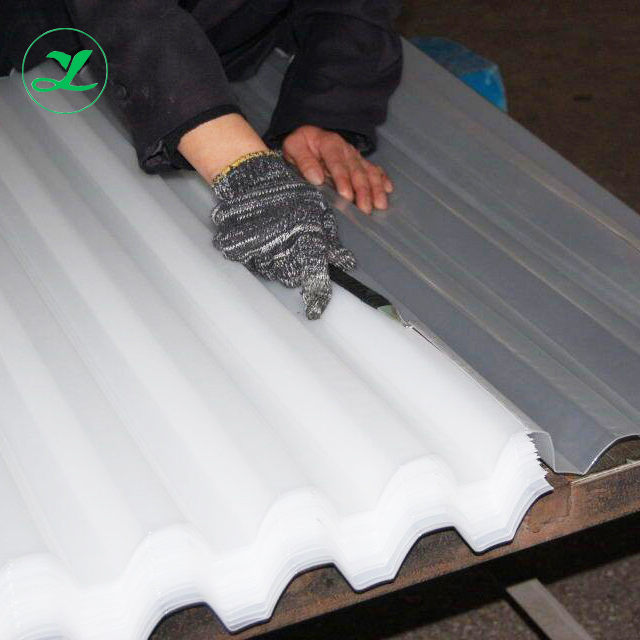

PP Water Treatment Tube Settlers
PP Water Treatment Tube Settlers

Electric Iron
The electric Iron is used to weld the tube settlers together.
Packing Details
plastic bag or wooden pallet.
Delivery Time
Deliver within 10 days












Q: Are you trading company or manufacturer ?
A: We are manufacturer with our own factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. Or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge. And the freight cost will on the buyer"s side.
Q: What is your terms of payment ?
A: Payment<=USD1000, 100% in advance. Payment>=USD1000, 30% T/T in advance ,balance before shipment.
