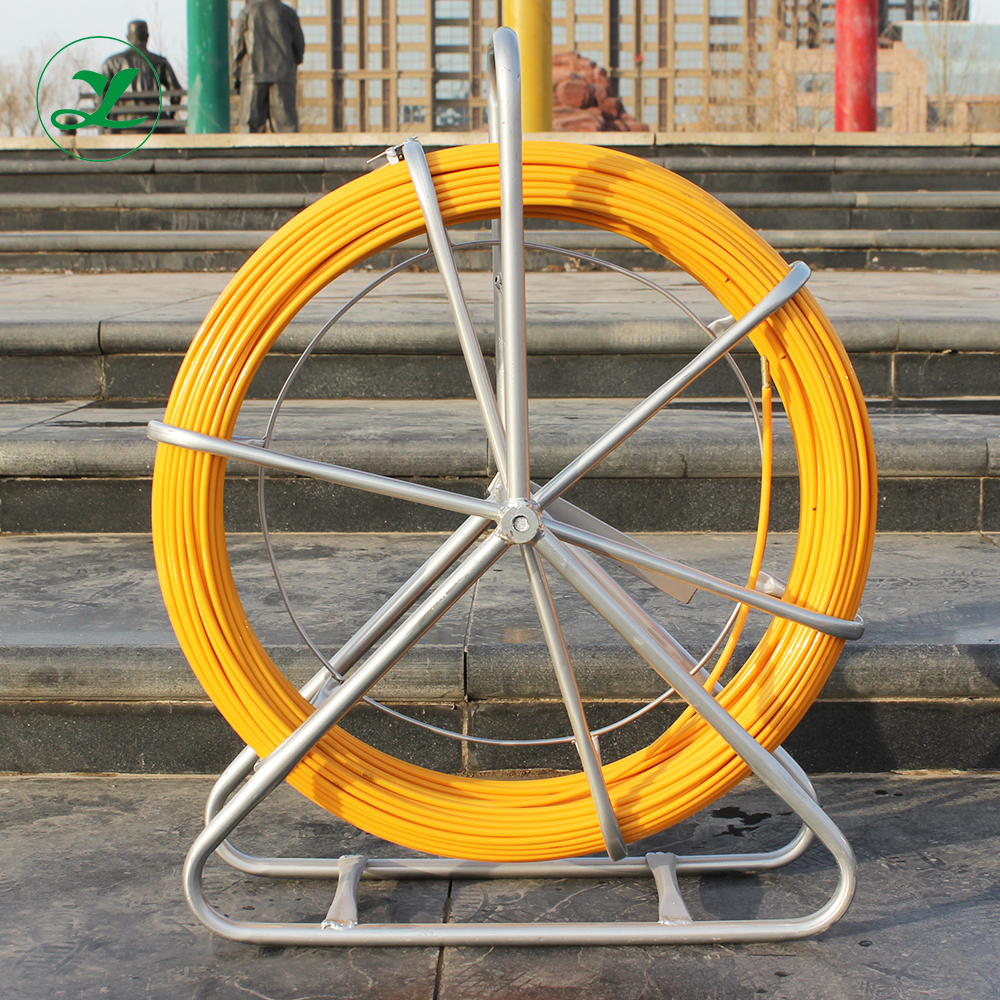

Chinese wholesale frp Duct Rodder Supply
Click on the image to view the original image
Product: views:5Chinese wholesale frp Duct Rodder Supply
Branch: Lanyu
Unit Price: Negotiated
Min.Order:
Supply:
Delivery: Shipment within days since the date of payment
Valid until: Long Term
Updated on: 2019-10-16 19:38
  Negotiated
Product Details
Overview
Quick Details
Place of Origin:
Hebei, China
Brand Name:
Lanyu
Model Number:
DR-001
Application:
tools for pulling cable
Surface Treatment:
plastic coasted
Technique:
pultrusion
Dimensions:
4-18mm
Product name:
Chinese wholesale frp Duct Rodder Supply
Color:
yellow,black,red,green,white etc
Assembly:
wheel, metal frame
Length:
10-500m
Diameter:
4-18mm
Special Using:
tracing,cable push pull tools
Material:
E-glass fiber inside and ABS outer layer coated
Drawing head:
Copper or high carbon steel Q345
Supply Ability
Supply Ability:
3000 Set/Sets per Month wholesale duct rodder supply
Packaging & Delivery
Packaging Details
Fiberglass push pull duct rods/Fiberglass Duct Rodder package:carton or pallet
Port
Tianjin
Lead Time:
Shipped in 20 days after payment
Product Description

Chinese wholesale frp Duct Rodder Supply

Lanyu company supply  you good quality fiberglass push pull snake conduit duct rodder made of frp duct rods.

Good flexible and tracing make the duct rods have good effective to finish the snake and electric conduction in the electric cable tubes.

The Specification for FRP Fiberglass Duct Rodder/ Cable Rods

Name

Duct rodder

Other name

Snake rod,push pull rod

Glass fiber rod diameter

φ4.mm--φ18mm,

Length

30m--,500m

Min Bend Radius

250mm,330mm

Glass fiber density

210kg/m, 245kg/m

Breaking tension

2400kg,  4200kg

Working

temperature

-40°C--80°C

Frame size

1300mm x 450mm x 1330mm

1200mm x 420mm x 1220mm

980mm x 350mm x 1000mm

680mm x 240mm x 700mm

4200mm x 1800mm x 400mm



The FRP Duct rodder/Fiberglass push pull duct rods/Fiberglass Duct Rodder is composed of fiberglass rod which is extruded by fiber glass rod and high strength resin at high temperature.This type of rod has high tensile strength and flexibility. It is covered imported ABS engineering plastic as it protect layer,which make duct rodder cover sliding on the surface, durable, corrosion resistant and has good insulation performance.Which make them safe for use in cable pulling in the conduit. Duct rodders will equipped with different size reel according to the length of rod. There are wheels on the reel, which could make it easy to move.



Because of the extreme flexibility, it can be used for Telecommunications, electrician, NBN , Silcar  and others department HDPE pipes cable, the cable specific tapes as push-pull tools.

Detailed Images

 Our design for the FRP Fiberglass Duct Rodder

Spare Parts for the FRP Fiberglass Duct Rodder
