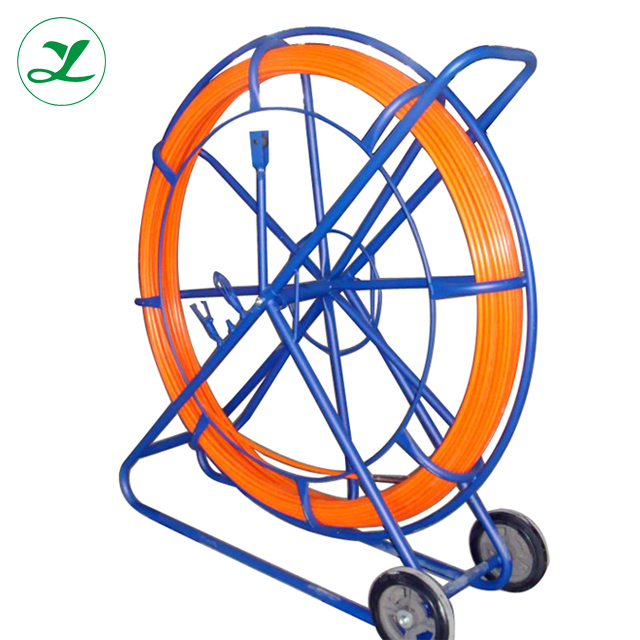

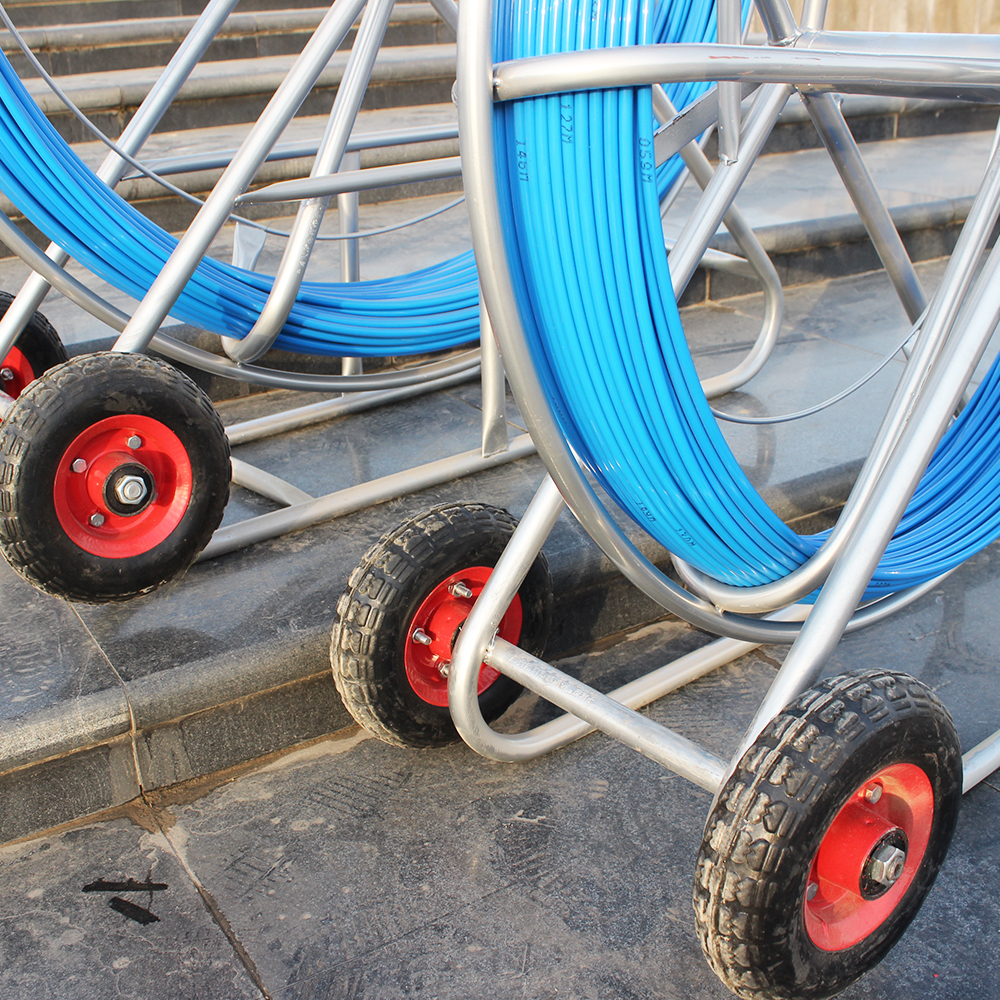

Newest Cable pushing rod fiberglass Traceable duct rodders
Lanyu company supply you good quality fiberglass push pull snake conduit duct rodder made of frp duct rods.
Good flexible and tracing make the duct rods have good effective to finish the snake and electric conduction in the electric cable tubes.
The Specification for FRP Fiberglass Duct Rodder/ Cable Rods
Name | Duct rodder |
Other name | Snake rod,push pull rod |
Glass fiber rod diameter | φ4.mm--φ18mm, |
Length | 30m--,500m |
Min Bend Radius | 250mm,330mm |
Glass fiber density | 210kg/m, 245kg/m |
Breaking tension | 2400kg, 4200kg |
Working temperature | -40°C--80°C |
Frame size | 1300mm x 450mm x 1330mm 1200mm x 420mm x 1220mm 980mm x 350mm x 1000mm 680mm x 240mm x 700mm 4200mm x 1800mm x 400mm |
The FRP Duct rodder/Fiberglass push pull duct rods/Fiberglass Duct Rodder is composed of fiberglass rod which is extruded by fiber glass rod and high strength resin at high temperature.This type of rod has high tensile strength and flexibility. It is covered imported ABS engineering plastic as it protect layer,which make duct rodder cover sliding on the surface, durable, corrosion resistant and has good insulation performance.Which make them safe for use in cable pulling in the conduit. Duct rodders will equipped with different size reel according to the length of rod. There are wheels on the reel, which could make it easy to move.
Because of the extreme flexibility, it can be used for Telecommunications, electrician, NBN , Silcar and others department HDPE pipes cable, the cable specific tapes as push-pull tools.
Our design for the FRP Fiberglass Duct Rodder
Spare Parts for the FRP Fiberglass Duct Rodder
